KTM 200 EXC - 12.13 Checking the Play of the Steering Head Bearing

12 SERVICE WORK ON THE CHASSIS 60
102275-10
–

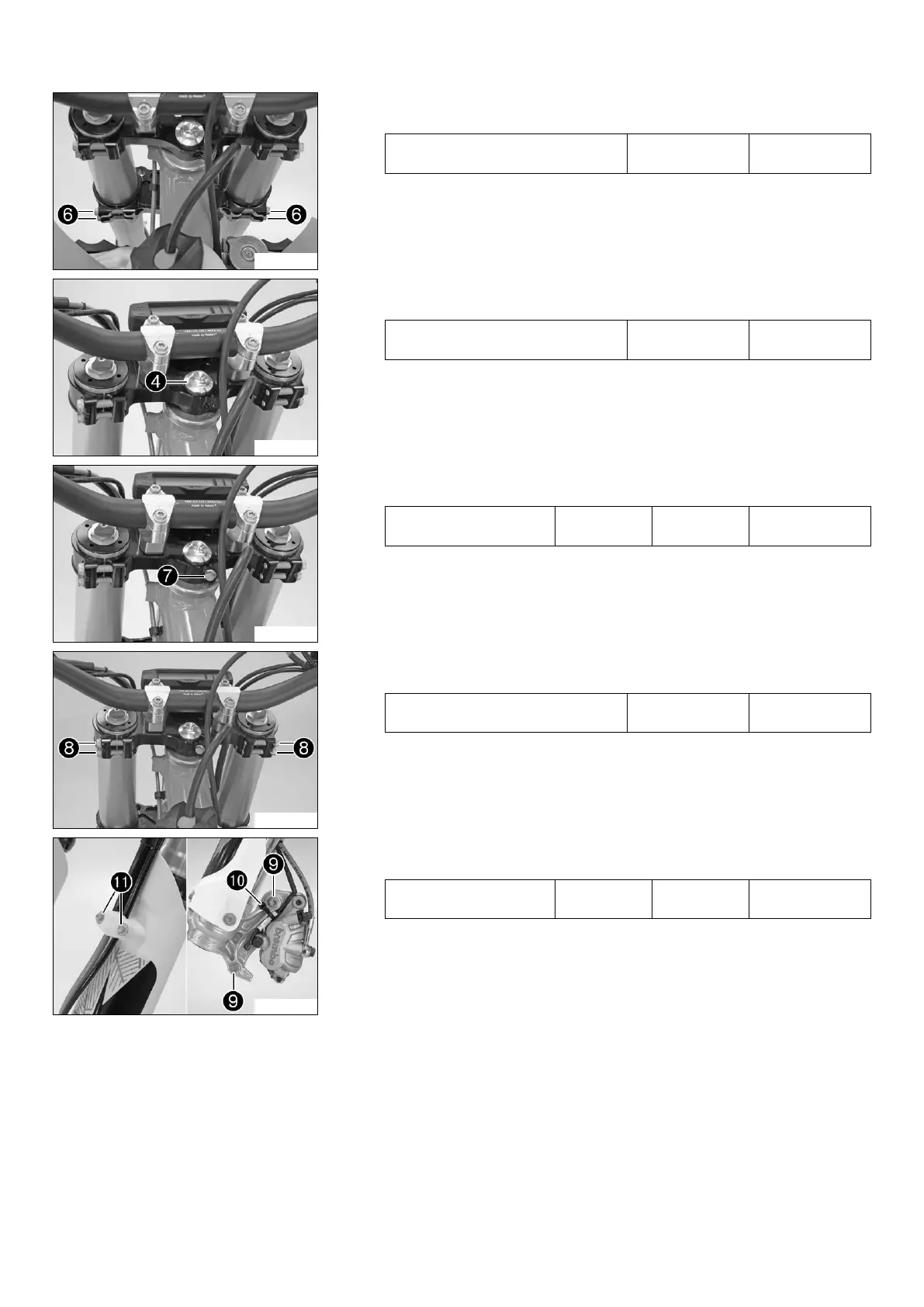

Tighten screws

.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
102276-10
–
Tighten screw

.
Guideline
Screw, top steering head M20x1.5 12 Nm
(8.9 lbf ft)
102277-10
–
Mount and tighten screw

.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
102278-10
–
Tighten screws

.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
102261-13
–
Position the brake caliper. Mount and tighten screws

.
Guideline
Screw, front brake
caliper
M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
–
Mount cable tie(s)

.
– Position the brake line and wiring harness. Put on the clamp and mount and
tighten screws

.
