6-11C
1
2

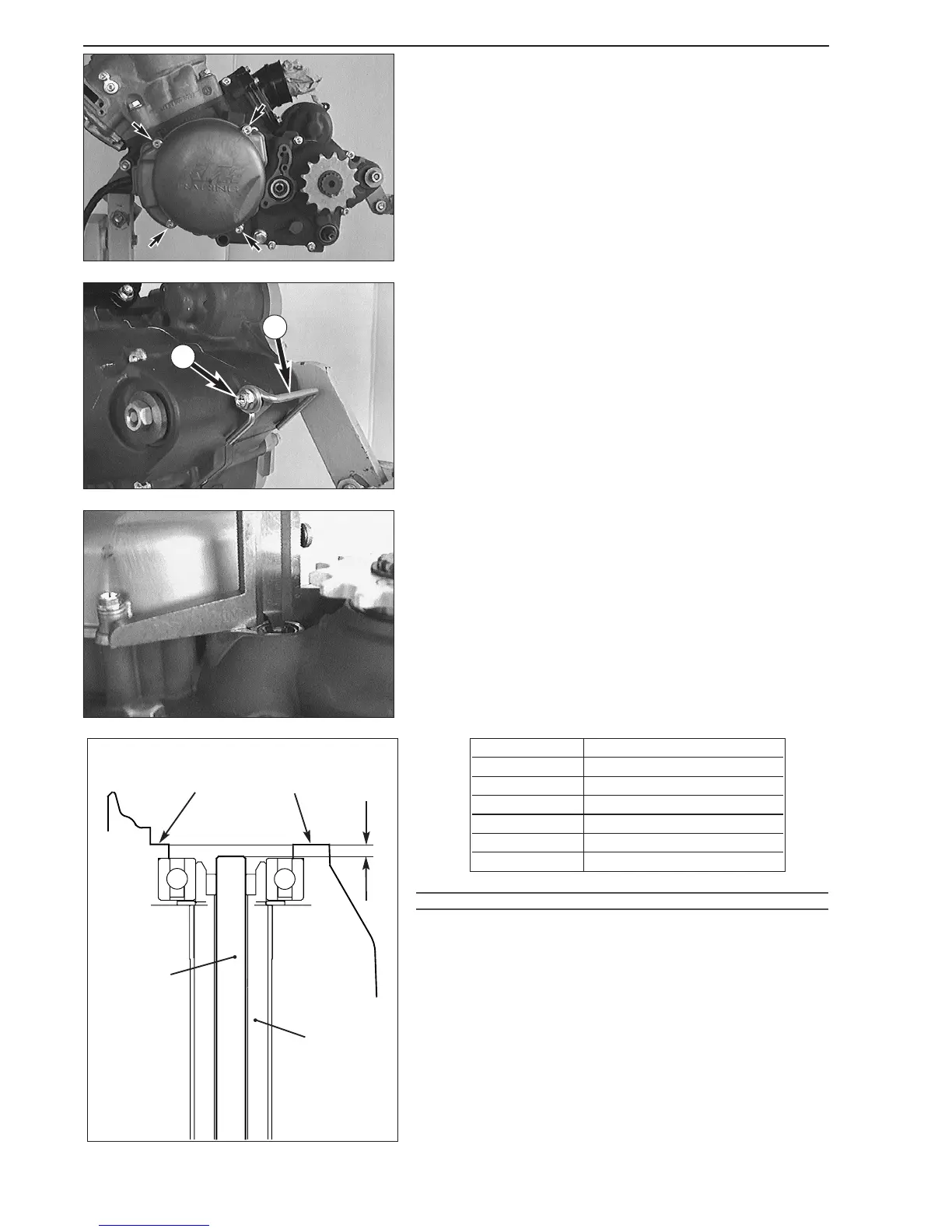

Ignition cover
– Apply silicone to several points of the gasket to fix it in the ignition
cover.
– Fix the ignition cover with 4 collar bolts.
– Use the collar bolt
2 to mount the wire bracket 1 for the
carburetor air hoses on the housing.
Measuring dimension „Y“
NOTE: The gasket of the driving cylinder of the clutch must be
appropriately thick to ensure smooth clutch release. For this purpose
measure dimension „Y“. Dimension "Y" is the distance from the sealing
surface of the clutch slave cylinder to the push rod.
– Swing the ignition side up.
– Oil the push rod and push it into the main shaft as far as it will go.
– Then use a sliding gauge to measure the distance between the
bearing surface of the driving cylinder of the clutch and the push rod.
–Write down dimension „Y“ and use an appropriate gasket (see table)
when mounting the driving cylinder of the clutch.
!
CAUTION
!
ALWAYS USE A NEW GASKET. DAMAGED GASKETS MAY IMPAIR THE EASY OPERABILITY
OF THE HYDRAULIC CLUTCH
.
Dimension „Y“ gasket thickness
2,5 - 2,8 mm 0,75 mm
2,8 - 3,0 mm 0,50 mm
3,0 - 3,3 mm 0,30 mm
0.1 - 0.11 in 0,30 in
0.11 - 0.12 in 0,20 in
0.12 - 0.13 in 0,012 in
DIMENSION „Y“
push rod
counter
shaft
Sealing surface of the clutch
slave cylinder
