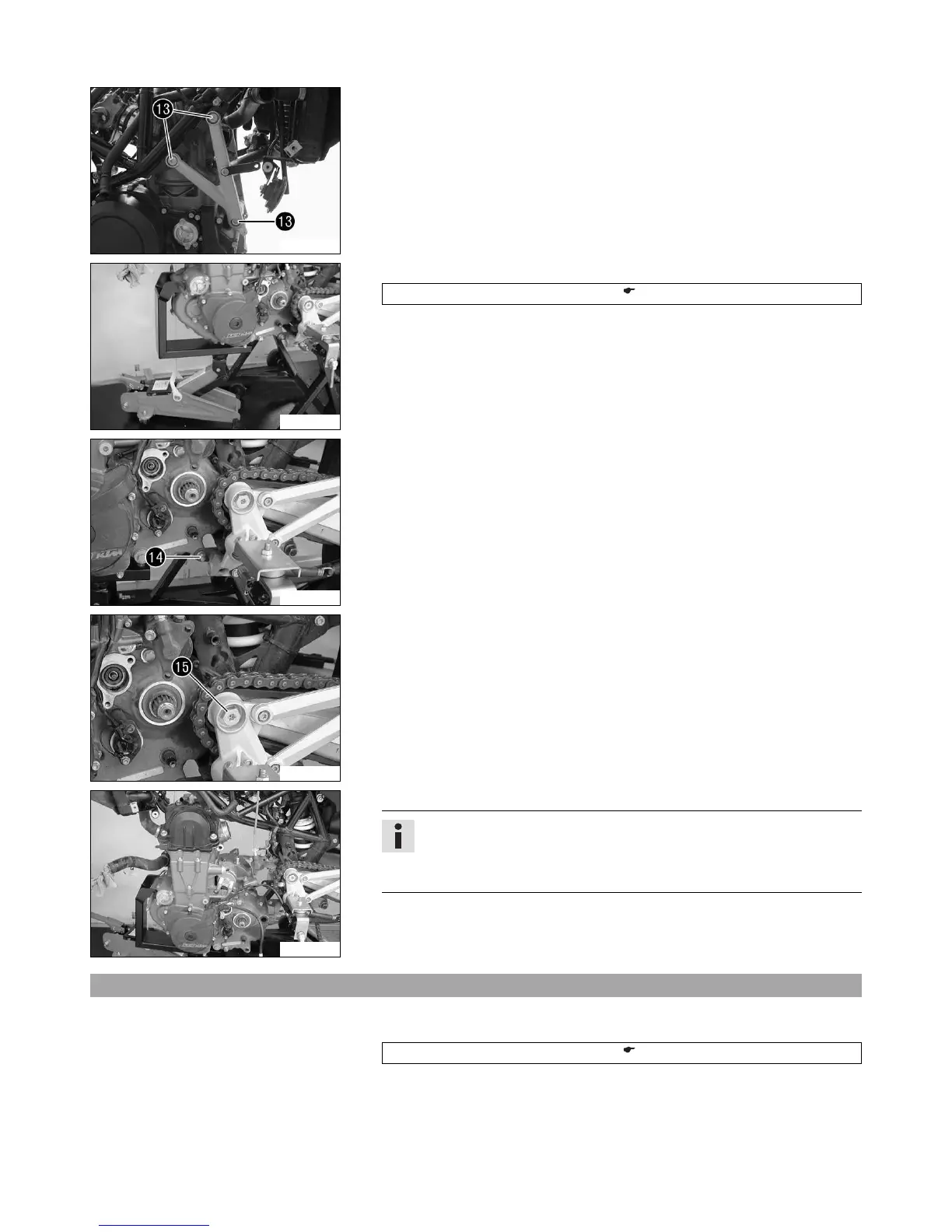

16 ENGINE 102
300221-10
– Remove screws bn. Remove the engine bearer.
300222-10
– Position the floor jack under the engine and fix it using the special tool.
Floor jack attachment (75029055000) ( p. 217)
300223-10
– Remove nut bo of the lower engine bracket. Remove the screw.
300225-10
– Remove screw bp of the swingarm pivot.
– Remove the swingarm pivot.
300224-10
– Lower the engine.
Info
You should have an assistant for this step.
Make sure that the engine is sufficiently secured against falling over.
Protect the frame and attachments from damage.
16.2 Installing the engine
Preparatory work
– Raise the engine onto the special tool and fix it.
Floor jack attachment (75029055000) ( p. 217)
