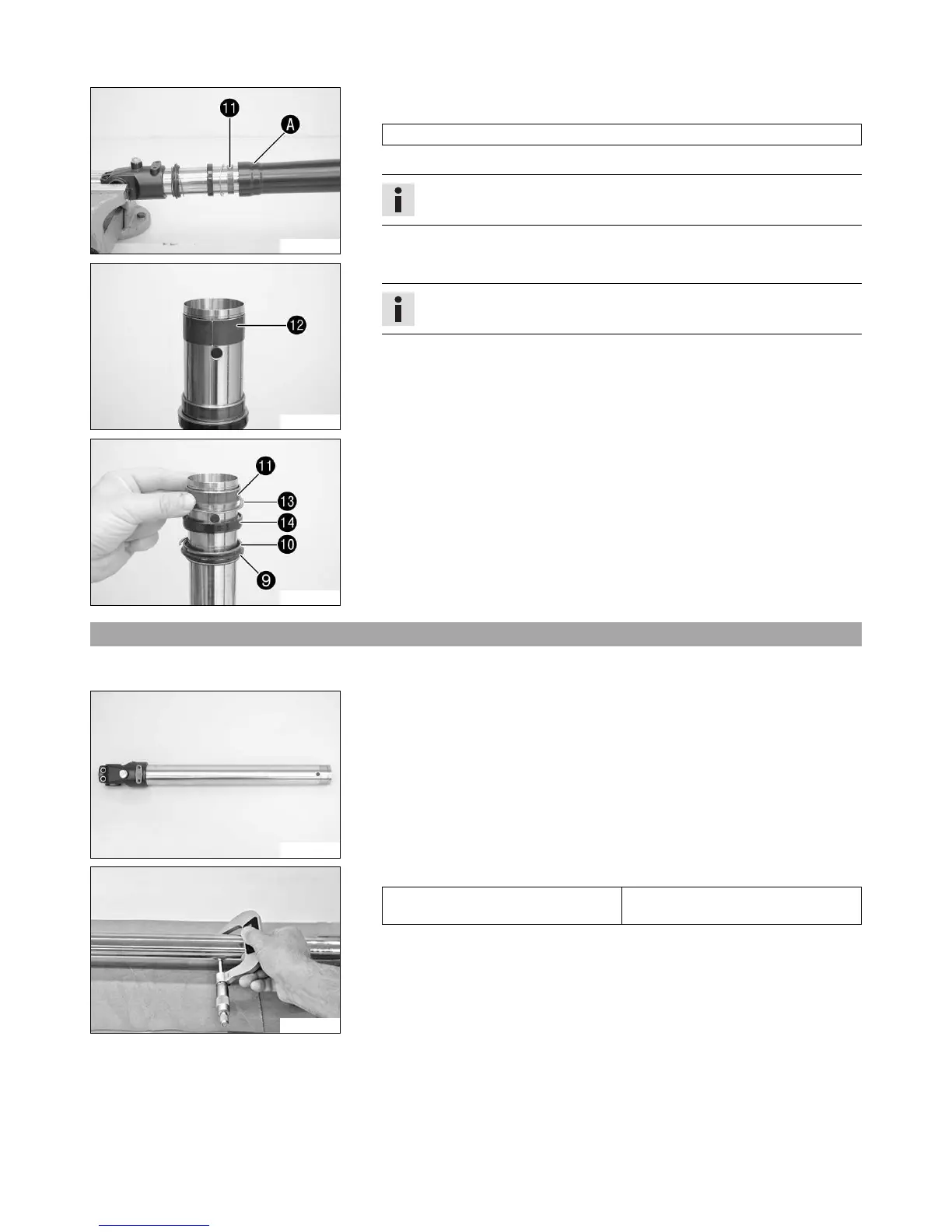

6 FORK, TRIPLE CLAMP 22
200668-10
Heat up the outer tube in area A of the lower sliding bushings.
Guideline
50 °C (122 °F)
Pull the outer tube of the fork off of the inner tube with a jerk.
Info
The lower sliding bushing bl must be pulled from its bearing seat.
200658-12
Remove the upper sliding bushing bm.
Info
Without using tools, carefully pull the stack apart by hand.
200659-12
Take off the lower sliding bushing bl.
Take off support ring bn.
Take off seal ring bo.
Take off lock ring bk.
Take off dust boot 9.
6.11 Checking the fork legs
Condition
The fork legs have been disassembled.
200686-10
Check the inner tube and the axle clamp for damage.
» If damage is found:
Replace the inner tube.
200684-10
Measure the external diameter of the inner tube in several places.
External diameter of inner tube 47.975… 48.005 mm (1.88878…
1.88996 in)
» If the measured value is less than the specified value:
Replace the inner tube.
