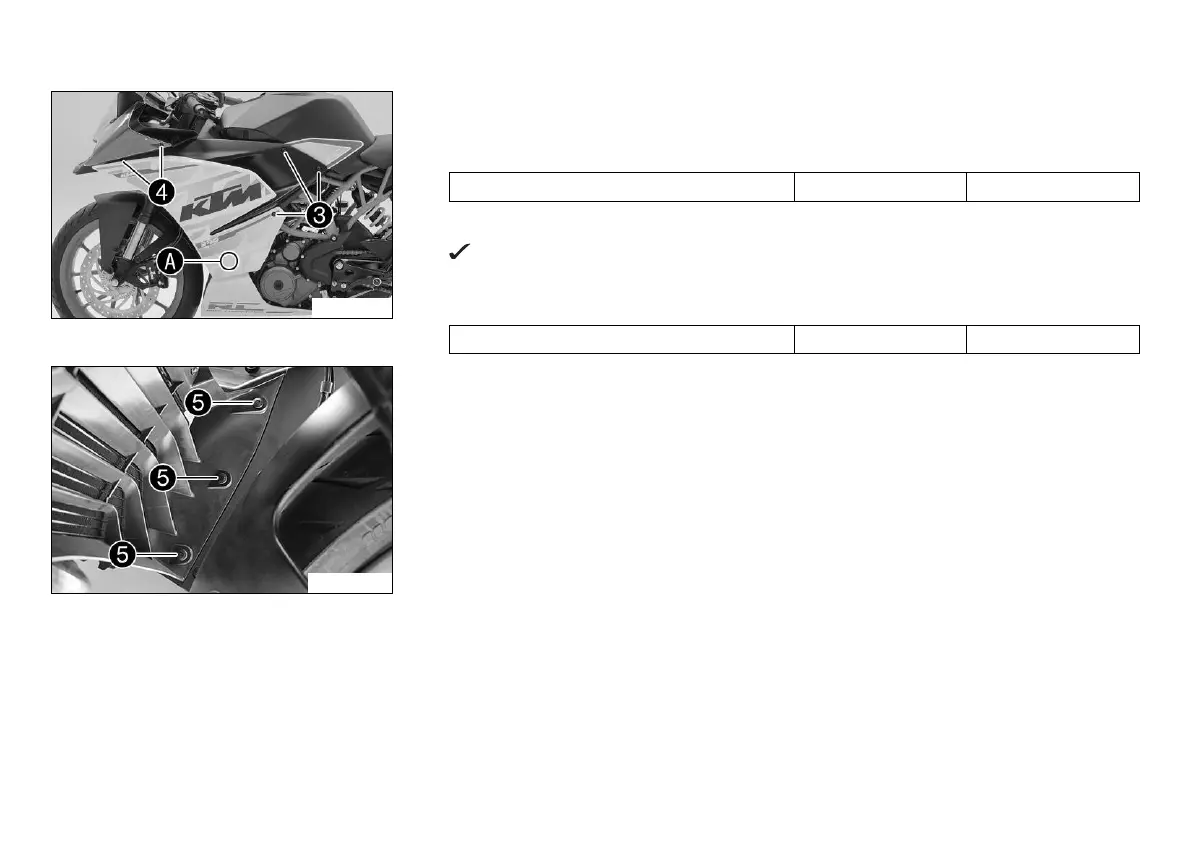

12 SERVICE WORK ON THE CHASSIS 99

L02268-11

– Position the side cover.

–

Mount and tighten screws



Guideline

Screw, side cover M6 7 Nm (5.2 lbf ft)

–

Push on the side cover in area



The holding lug engages in the drilled hole on the front spoiler.

–

Mount and tighten screws



Guideline

Screw, side cover on front mask M6 6 Nm (4.4 lbf ft)

M00456-11

–

Mount expanding rivet


