ELECTRICAL SYSTEM 134
301815-10

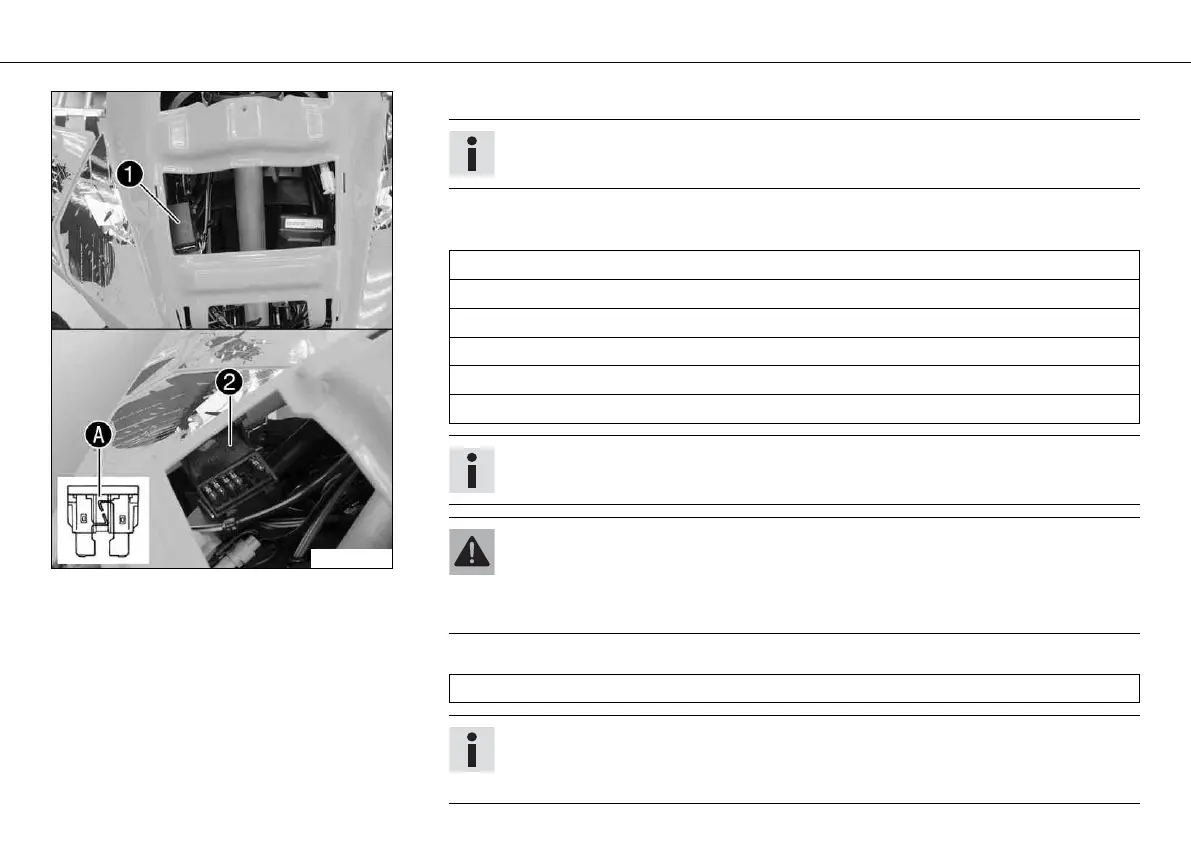

– Open the cover 2 of the fuse box 1.
Info
The designation of the fuses is located on the inside cover of the fuse box 2.
– Remove the faulty fuse.
Guideline
Fuse 1 - 10A - CDI controller
Fuse 2 - 10A - radiator fan
Fuse 3 - not used
Fuse 4 - not used
Fuse 5 - power supply for auxiliary equipment
Fuse res. - 10A - spare fuses
Info
You can recognize a blown fuse by its broken filament A.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
– Insert a new fuse of the appropriate strength.
Fuse (58011109110)
Tip
The replacement fuses should always be present in the fuse box to make sure
they are available when needed.
