MAINTENANCE WORK ON THE CHASSIS 84
Info
The toe is the difference in length between distances D and C by which the wheels are spaced at the front or rear when driv-
ing straight ahead. The distance is measured at the height of the wheel center from rim flange to rim flange.
» If the toe does not meet specifications:
–
Adjust the toe. x ( p. 84)

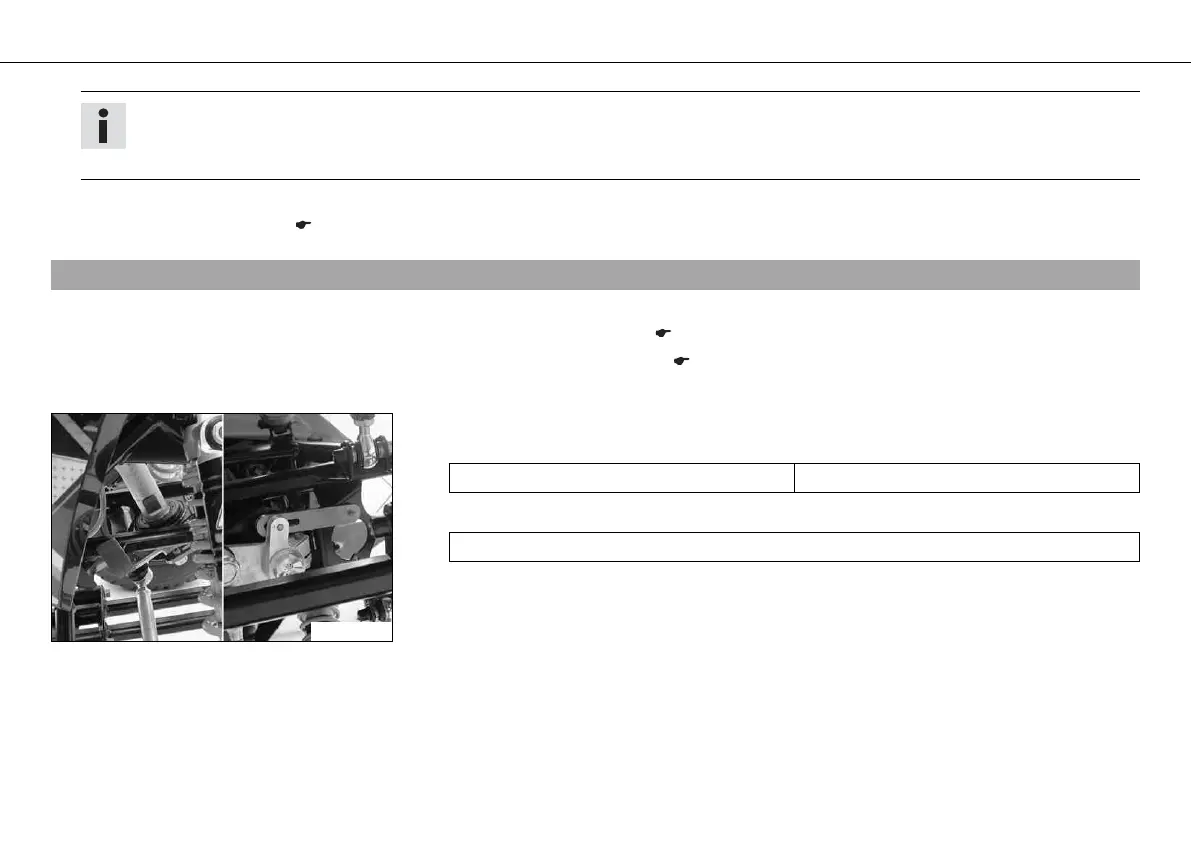

10.19Adjusting the toe x
– Park the vehicle on a horizontal surface.
– Check the tire condition. ( p. 127)
– Check the tire air pressure. ( p. 128)
– Check the chassis parts for damage, play and wear. Replace damaged or worn parts.
300272-10
– Load the vehicle with the specified weight.
Guideline
Average rider weight 75… 85 kg (165… 187 lb.)
– Move the handlebar into the straight-ahead position and fix it.
Handlebar fixation for straight-ahead position (83019015100)
