MAINTENANCE WORK ON THE CHASSIS 85

400333-11

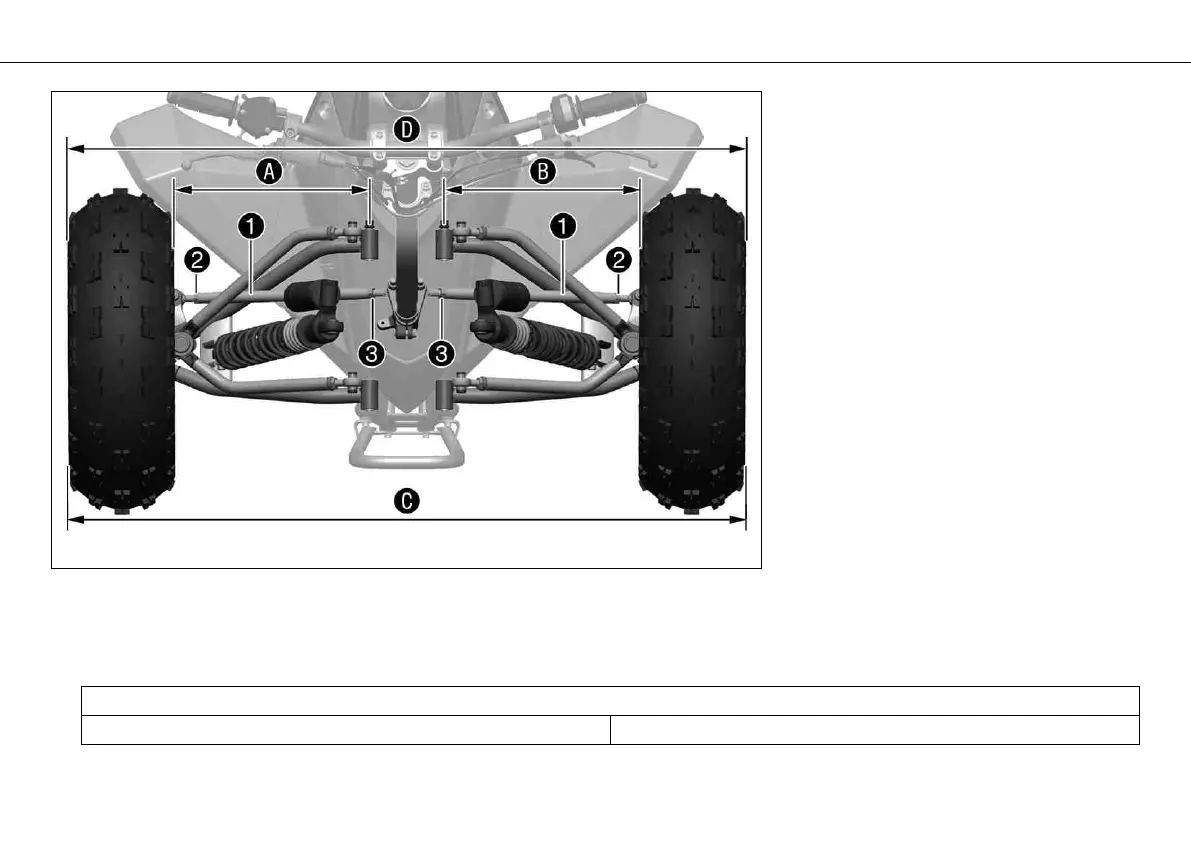

– Loosen nuts 2 and 3.

– Adjust the distances A and B to the same value by rotating the tie rods 1.

– Adjust the distances C and D to the specified value by evenly rotating the tie rods 1.

Guideline

Toe

Front 0 mm (0 in)
