TUNING THE CHASSIS 54

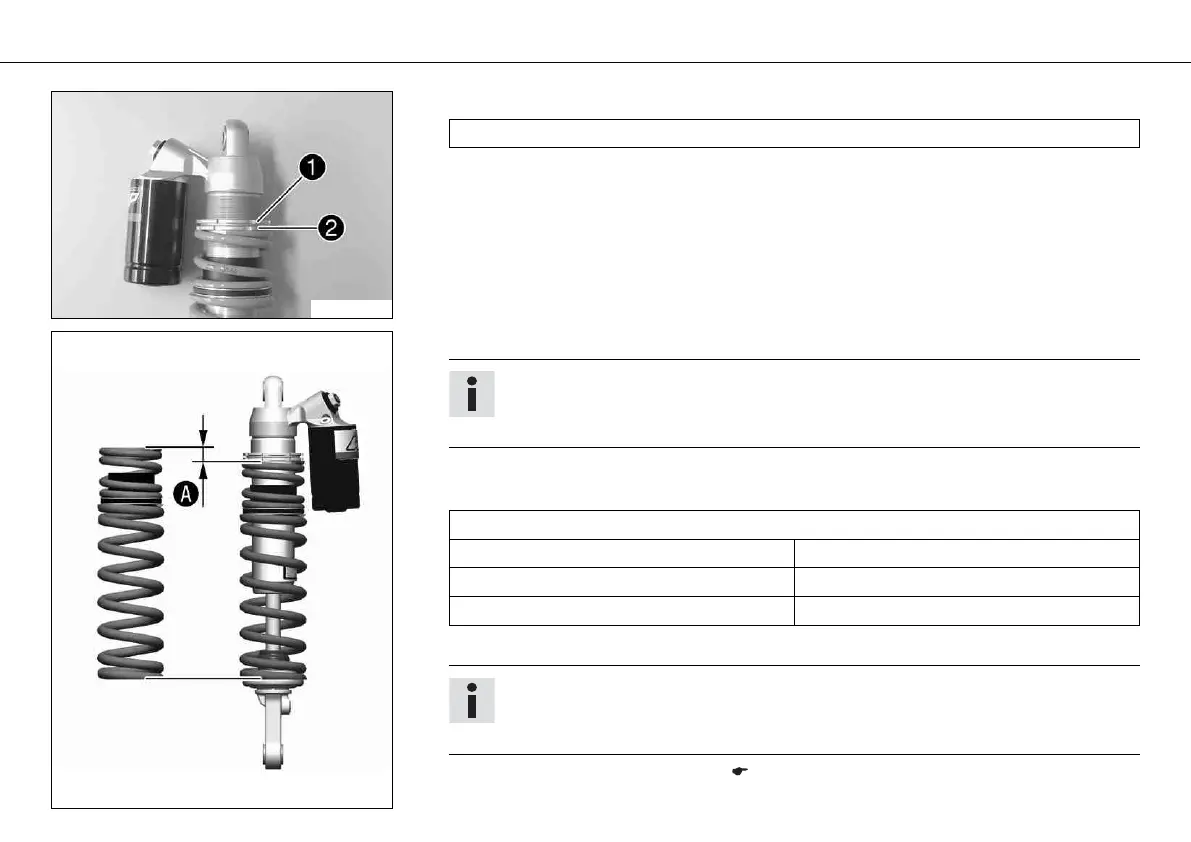

200601-01
– Release counter ring 1. Hold adjusting ring 2 while doing so.
Hook wrench (83019002000)
– Turn adjusting ring until the spring pack is no longer under tension.
400540-10
– Measure the overall spring pack when not under tension.
Info
The spring preload A is the difference in length between the spring pack when
it is unloaded and when it is installed.
– Tighten the spring packet by turning the adjusting ring to the specified measurement.
Guideline
Spring preload
Comfort 3 mm (0.12 in)
Standard 5 mm (0.2 in)
Sport 3 mm (0.12 in)
– Tighten the retaining ring and adjusting ring.
Info
If you increase the spring preload, you should also slightly increase the rebound
damping.
–
Install the rear shock absorber. x ( p. 69)
