KTM 505 SX - Maintenance Work on the Chassis; Removing the Rear Shock Absorber

TUNING THE CHASSIS 65
100099-10

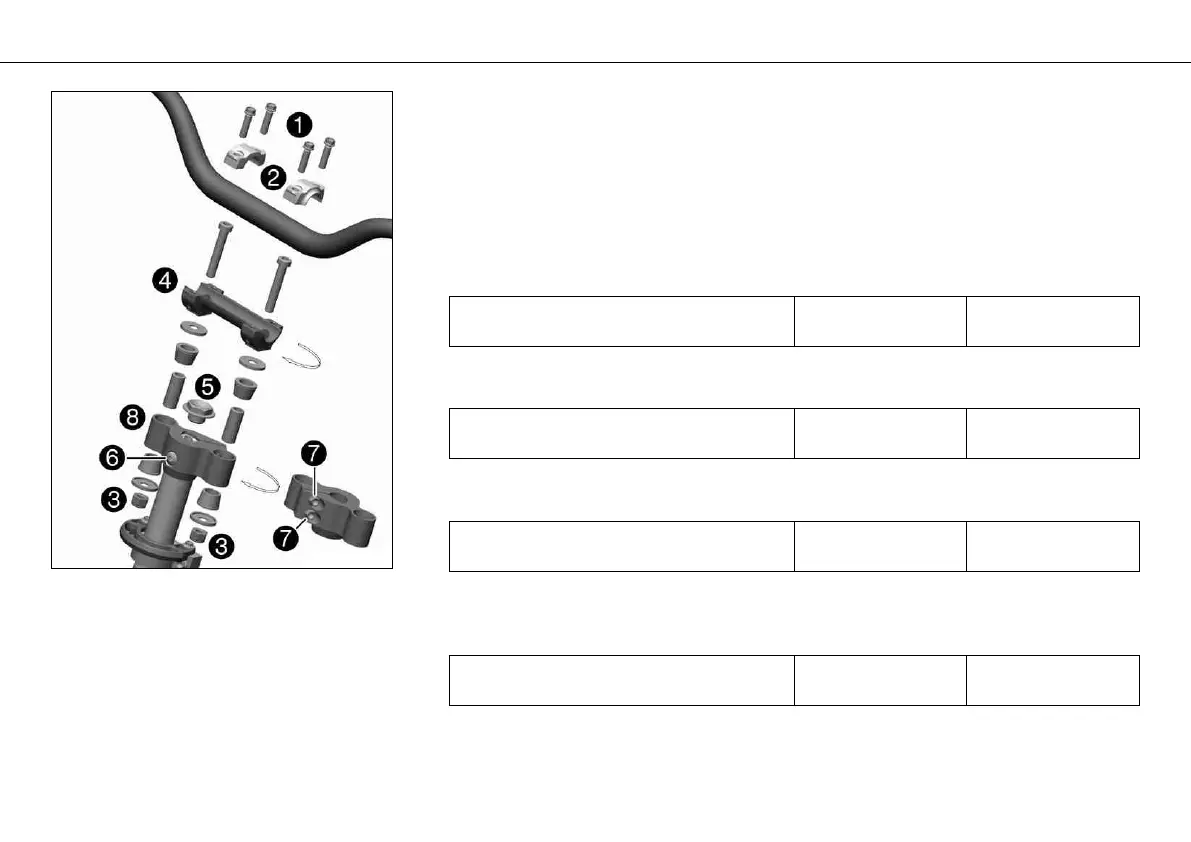

– Remove the four screws 1. Remove the handlebar clamps 2, swing the handlebar for-
ward and set it down.
– Remove the nuts 3 and remove the handlebar support 4 with the screws.
– Remove screws 5 and 6.
– Remove screws 7. Remove the handlebar bridge 8.
– Place the handlebar bridge 8 onto the steering column in the desired position. Mount
and tighten screw 6.
Guideline
Screw, steering bridge M8 20 Nm
(14.8 lbf ft)
– Mount and tighten screw 5.
Guideline
Screw, steering column, top M20x1.5 25 Nm
(18.4 lbf ft)
– Mount and tighten screws 7.
Guideline
Screw, steering bridge M8 20 Nm
(14.8 lbf ft)
– Mount the handlebar support 4 in the desired position using the screws. Mount new
self-locking nuts 3 and tighten.
Guideline
Nut, handlebar support M10 45 Nm
(33.2 lbf ft)
– Position the handlebar and fix it with the handlebar clamps 2. Mount and tighten
screws 1.
