MAINTENANCE WORK ON THE CHASSIS 68
301835-10
Note
Danger of damage The chain sliding piece and frame can be damaged from incorrect
handling.
– When removing the rear shock absorber, secure the swingarm with a tension belt to
prevent it from swinging down further.

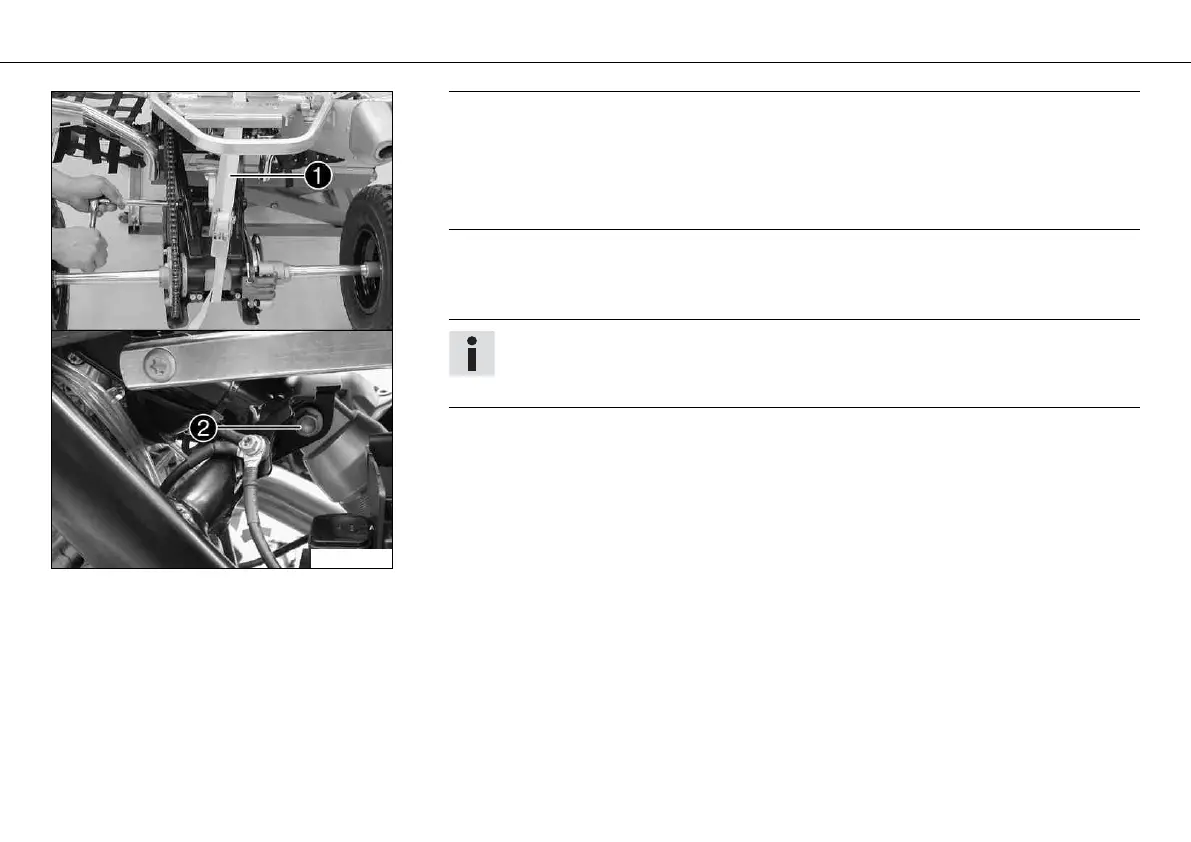

– Attach the swingarm to the subframe with a tension belt 1 to relieve the shock
absorber.
– Remove the bottom screw of the shock absorber.
Tip
Press the screw out of the swingarm with a screw driver while moving the tension
belt.
– Remove the top screw 2 of the shock absorber and carefully remove the shock absorber
out of the vehicle toward the rear.
