MAINTENANCE WORK ON THE CHASSIS 71
301819-10

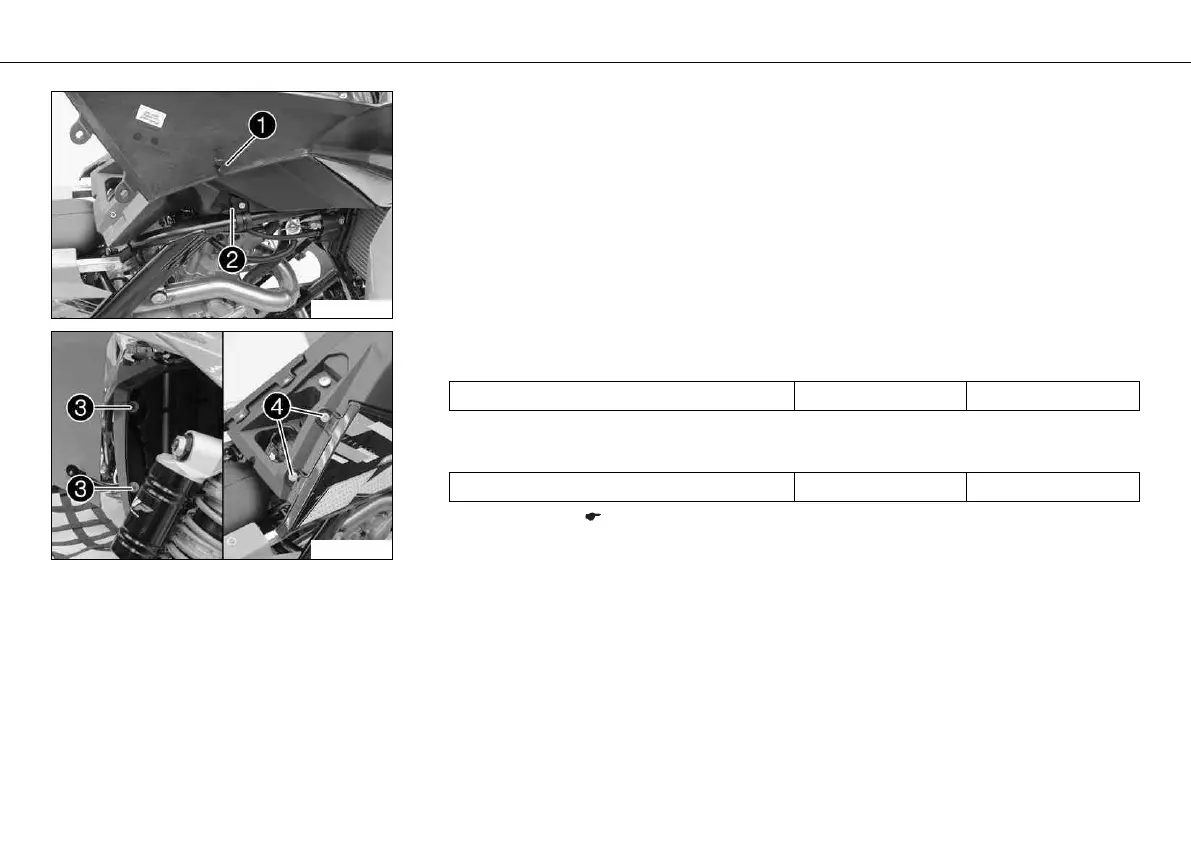

– Hook catch 1 of the radiator spoiler into holder 2 of the fuel tank and position it on
the radiator.
301818-10
– Mount and tighten screws 3 on the radiator.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Mount and tighten screws 4 on the fuel tank.
Guideline
Screw on fuel tank M6 6 Nm (4.4 lbf ft)
– Mount the seat. ( p. 78)
