MAINTENANCE WORK ON THE CHASSIS 76

301820-10

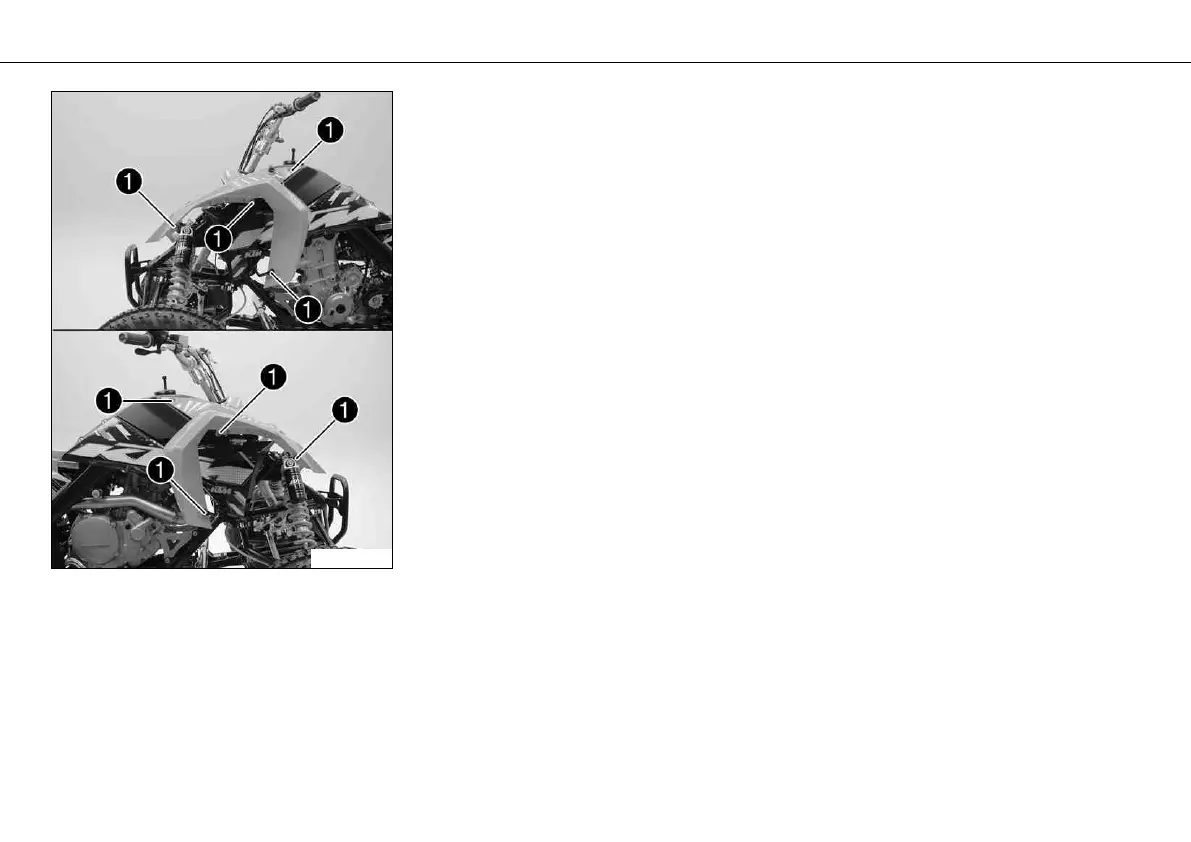

– Remove screws 1.

– Raise the front trim and disconnect the plug-in connector from the emergency OFF

switch with the rip cord.

– Remove the front trim.
