KTM 505 SX - Adjusting the Fork Offset; Toe Width of Rear Axle

MAINTENANCE WORK ON THE CHASSIS 87
300273-10

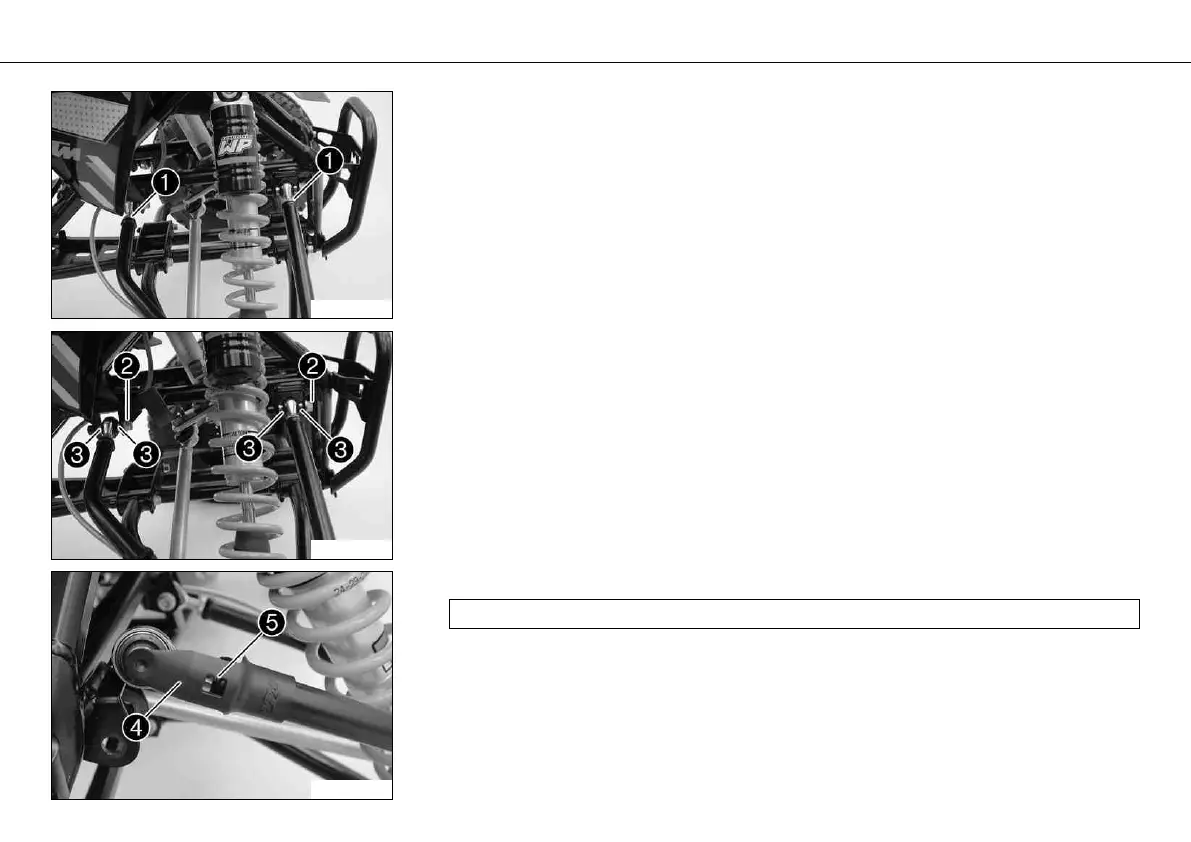

– Loosen nuts 1.
300274-10
– Remove screws 2 with bushings 3.
300277-10
– Insert tool 4 in the heim joint and clip onto the A-arm.
Camber gauge (83019014000)
– Check the camber on both heim joints.
» If marking 5 is not aligned with the top edge of the A-arm:
– Turn tool 4 with the heim joint in steps of 180° until the marking is in line
with the top edge of the A-arm.
– Remove tool 4.
