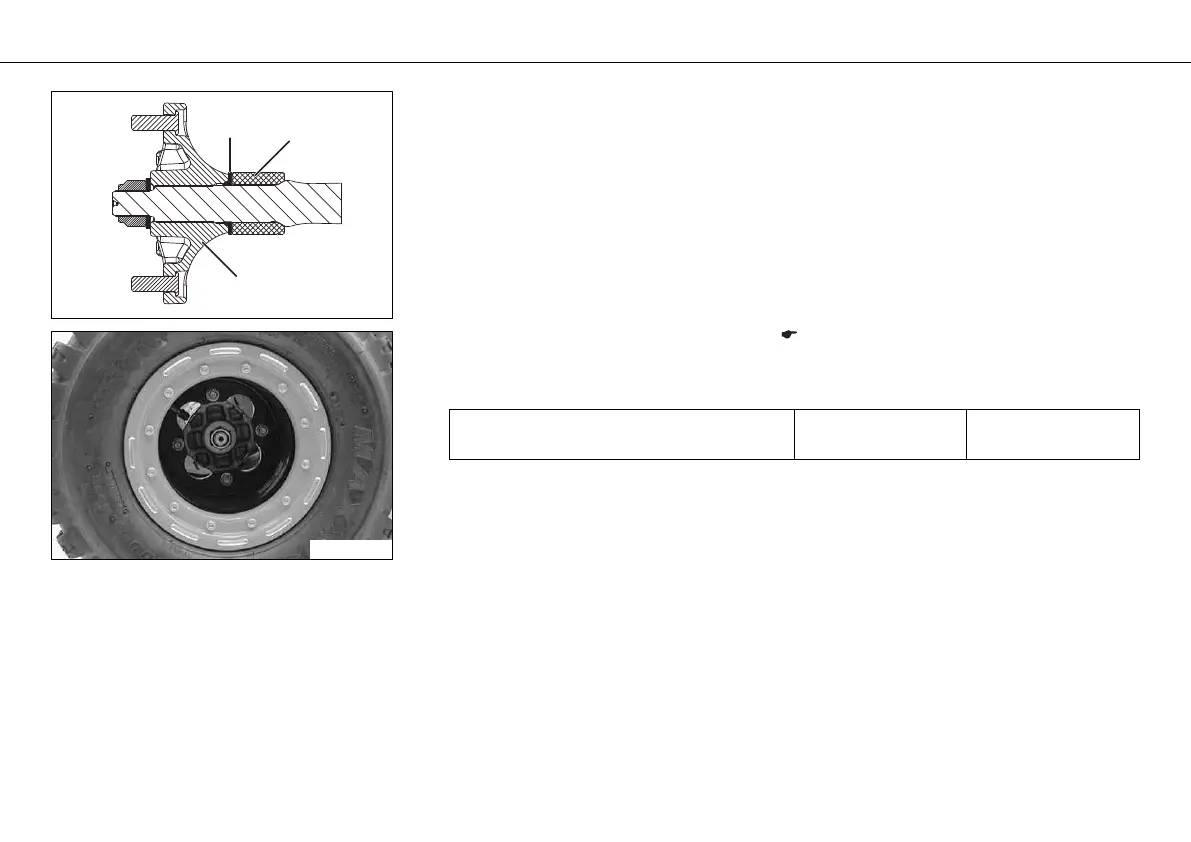

Setting a wide toe width:
– Mount the spacer 3 with the cone facing inward.
– Mount the conical ring 2 with the cone facing outward.
– Mount the wheel hub 1.
– Mount the washer and the new self-locking nut.
B00883-10
– Remove the vehicle from the lifting gear. ( p. 67)
– Tighten nuts 4 on both sides.
Guideline
Nut, rear wheel hub M18x1.5 130 Nm
(95.9 lbf ft)
– Shift gear to neutral.
