MAINTENANCE WORK ON THE CHASSIS 97

B00463-01

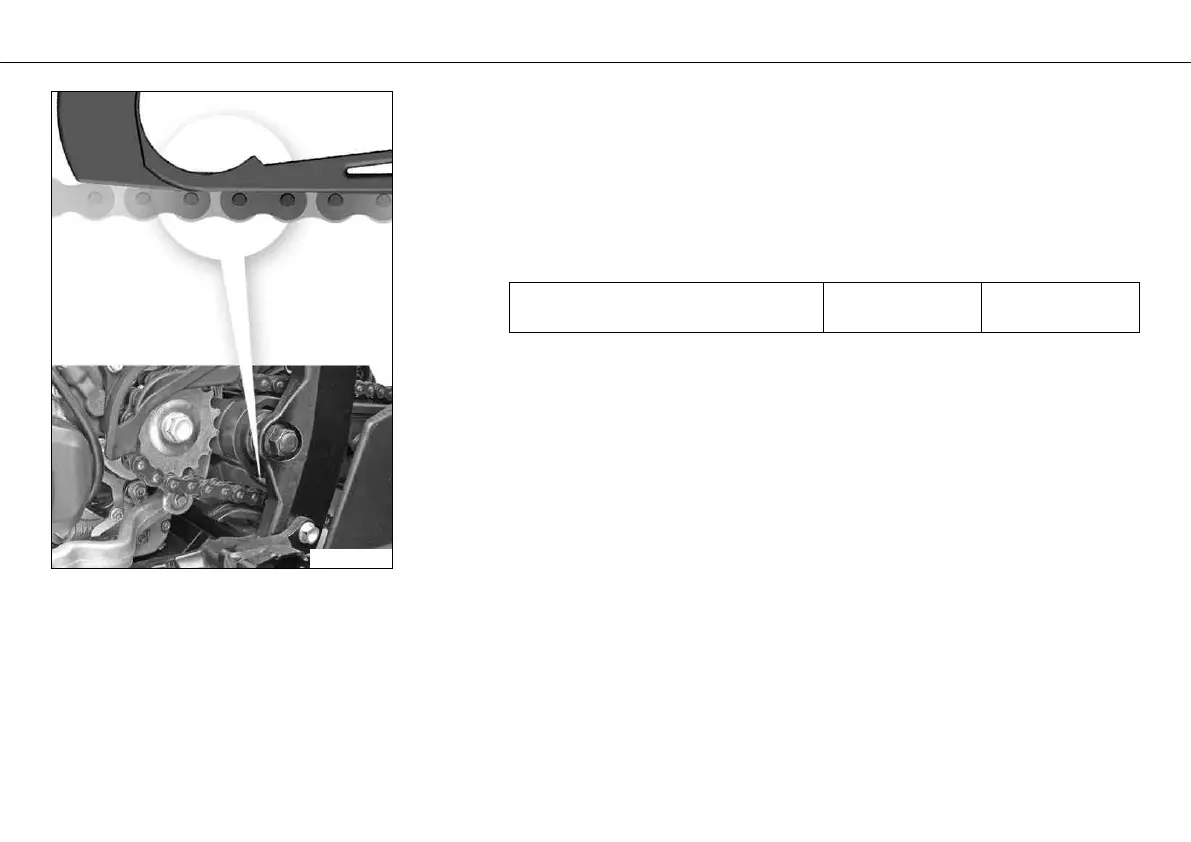

– Check the chain sliding guard at the bottom for wear.

» If the lower edge of the chain pins is in line with or below the chain sliding guard:

–

Change the chain sliding guard. x

– Check the chain sliding guard for tightness.

» If the chain sliding guard is loose:

– Tighten the chain sliding guard.

Guideline

Remaining screws, chassis M6 10 Nm

(7.4 lbf ft)
