KTM 660SMC - Page 10

ZYLINDERKOPF

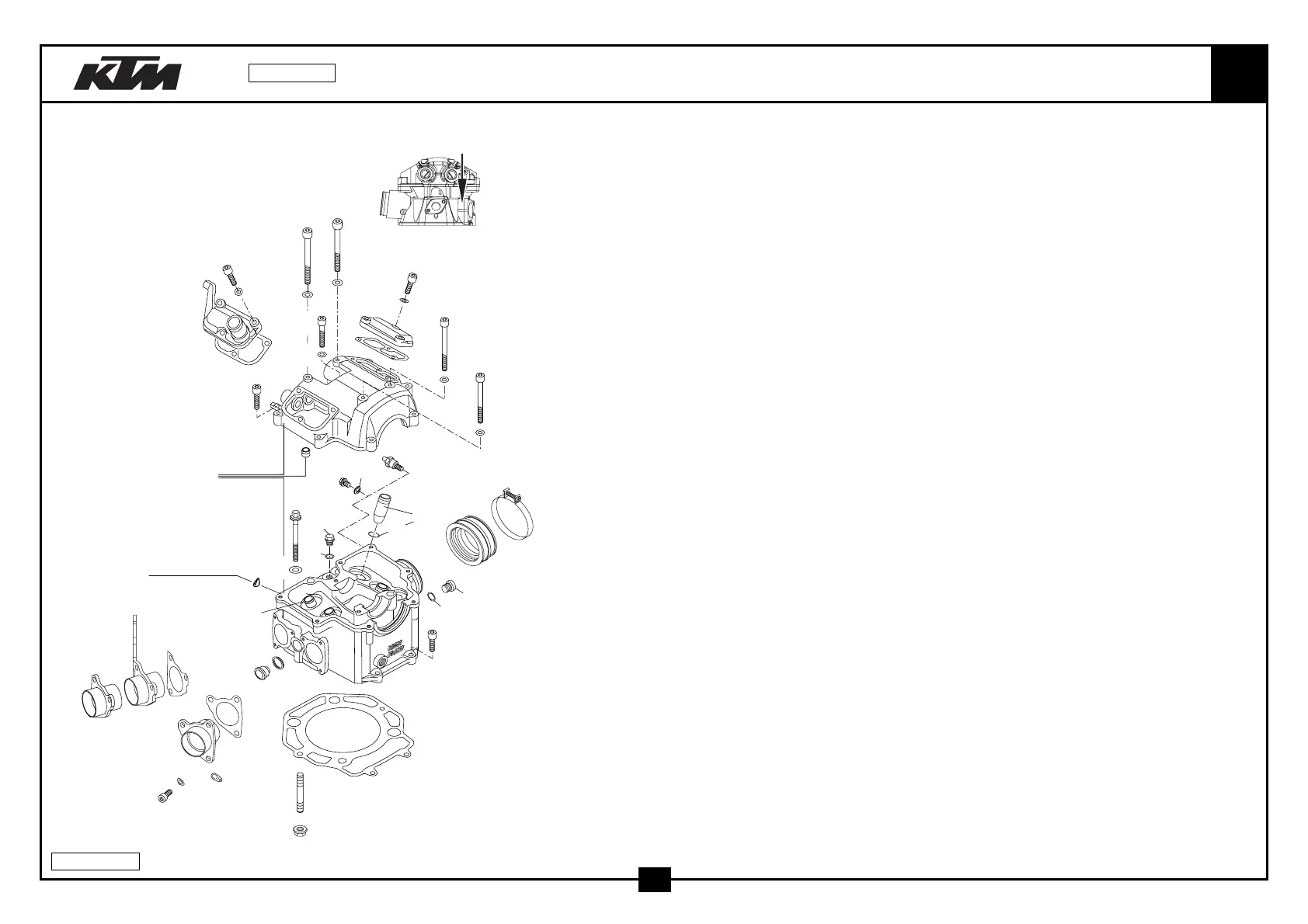

CYLINDER HEAD 660
G = 660 ccm
Three-Bond Dichtmasse
Three-Bond Gasket
1
2
3
3
3
4
5
7
8
8
9
6
6
bl
bm
bn
bo
bp
br
bs
bt
dk
dl
dm
dm
em
ep
fl
fl
fm
fn
fo
fp
fq
fr
gk
gp
gq
gr
gs
8
cl
cl
cm
et
do
dp
dn
cn
04-586.36.2
9
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
55 0912 070603 ISK.SCHR. DIN0912-M 7X60 12.9 AH SCREW DIN0912-M 7X60 12.9 1
56 0912 060653 ISK.SCHRAUBE DIN 912 M6X65 AH SCREW DIN0912-M 6X65 1
57 0912 060703 ISK.SCHRAUBE DIN 912 M6X70 AH SCREW DIN0912-M 6X70 1
60 0137 060003 FEDERSCHEIBE DIN 137 B 6 SPRING WASHER DIN0137-B 6 6
65 0910 100003 VERSCHL.SCHR.DIN0910-M 10X1 PLUG DIN0910-M 10X1 1
66 0603 100141 CU-DICHTRING DIN7603-10X14X1 COPPER GASKET DIN7603-10X14X1 1
67 0908 120153 VERSCHL.SCHR. DIN0908-M12X1,5 PLUG DIN0908-M12X1,5 1
68 0770 100020 O-RING 10,00X2,00 SILICON O-RING 10,00X2,00 SILCONE 1
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
04-586.36.2
