KTM 660SMC - Secondary Air System

SEKUNDÄRLUFTSYSTEM

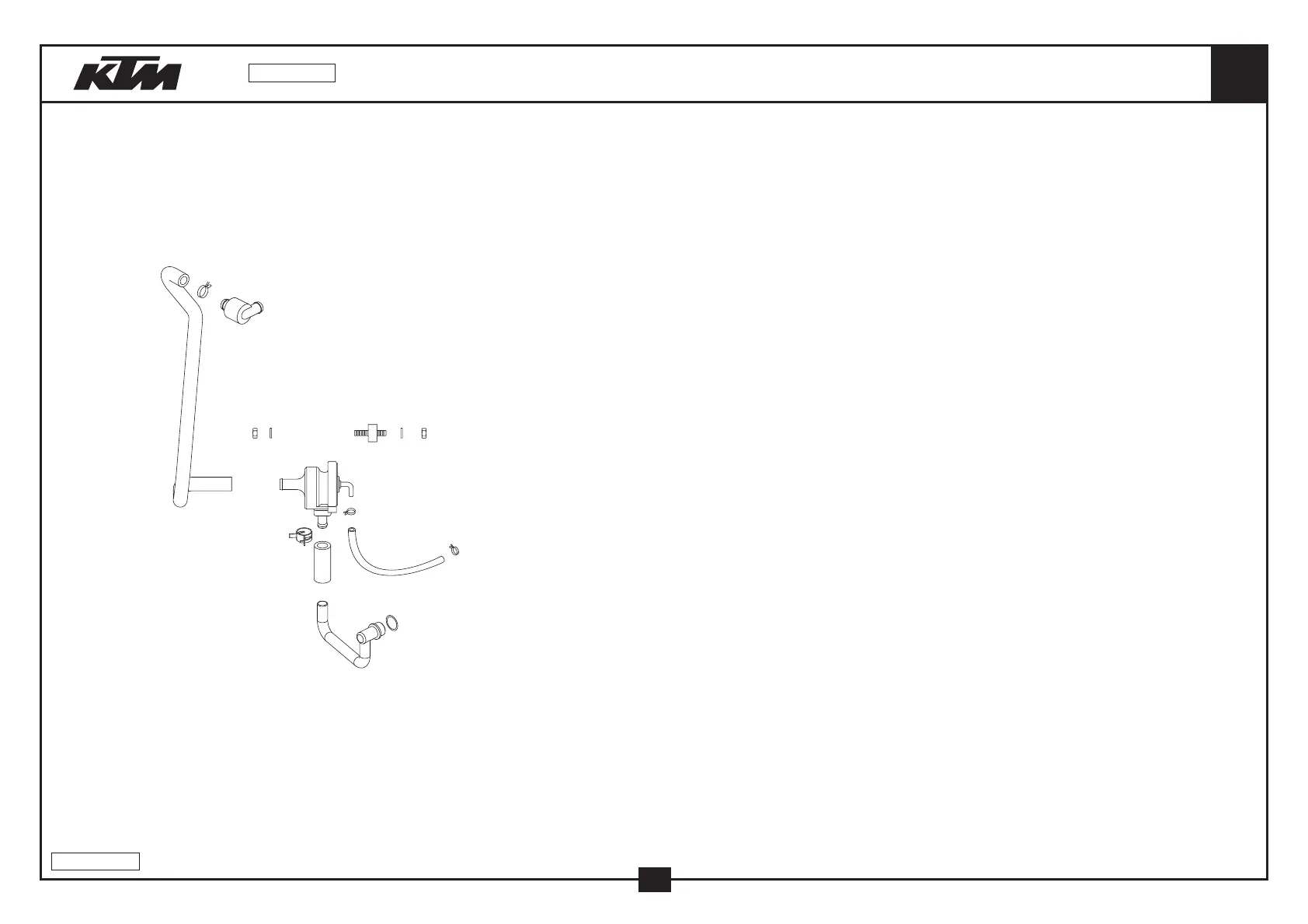

SECONDARY AIR SYSTEM 660
1
2
3
4
5
7
8
9
bk
6
bl
bm
bn
6
3
4
190mm
04-586.31.2
10
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1* 584.05.026.100 SLS-VENTIL 04 SAS-VALVE 04 1
2* 584.05.021.000 SILENTBLOCK 20X10 M6X10/M6X16 SILENTBLOCK 20X10 M6X10/M6X16 2
3* 0797 060003 ZAHNSCHEIBE DIN6797-J 6,4 TOOTH LOCK WASH. DIN6797-A 6,4 4
4* 0934 060003 SK.MUTTER DIN 934 M6 HEXAGON NUT DIN0934-M 6 4
5* 584.05.029.001 ND-SCHLAUCH 4X9 PER METER ND-HOSE 4X9 PER METER 1
6* 450.31.005.000 YDNAC-KLAMMER BENZINSCHL.(8MM) YDNAC-CLAMP FUEL HOSE (8MM) 2
7* 584.05.019.000 SCHLAUCH SLS VENT. U. VERB-ROH HOSE SAS-VALVE - CONNECT. TUBE 1
8* 000.49.190.121 FEDERBANDSCHELLE 19X12 STD-DES CLAMP 19X12 STD-DES 2
9* 584.05.027.100 SLS-VERBINUNGSROHR 04 CONNECTING TUBE SAS 04 1
10* 584.36.054.000 CU-FÜLLRING 12 X 16 X 2 CU-SEAL RING 12 X 16 X 2 1
11* 584.05.020.000 FORMSCHLAUCH SLS 04 PREFORMED HOSE SAS 04 1
12* 584.31.082.100 YDNAC-KLAMMER 16MM ‘98 YDNAC-CLAMP 16MM ‘98 1
13* 584.31.070.000 LUFTFILTER LC4 FÜR EPC 98 AIR FILTER LC4 ‘98 1
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
04-586.31.2
2004
