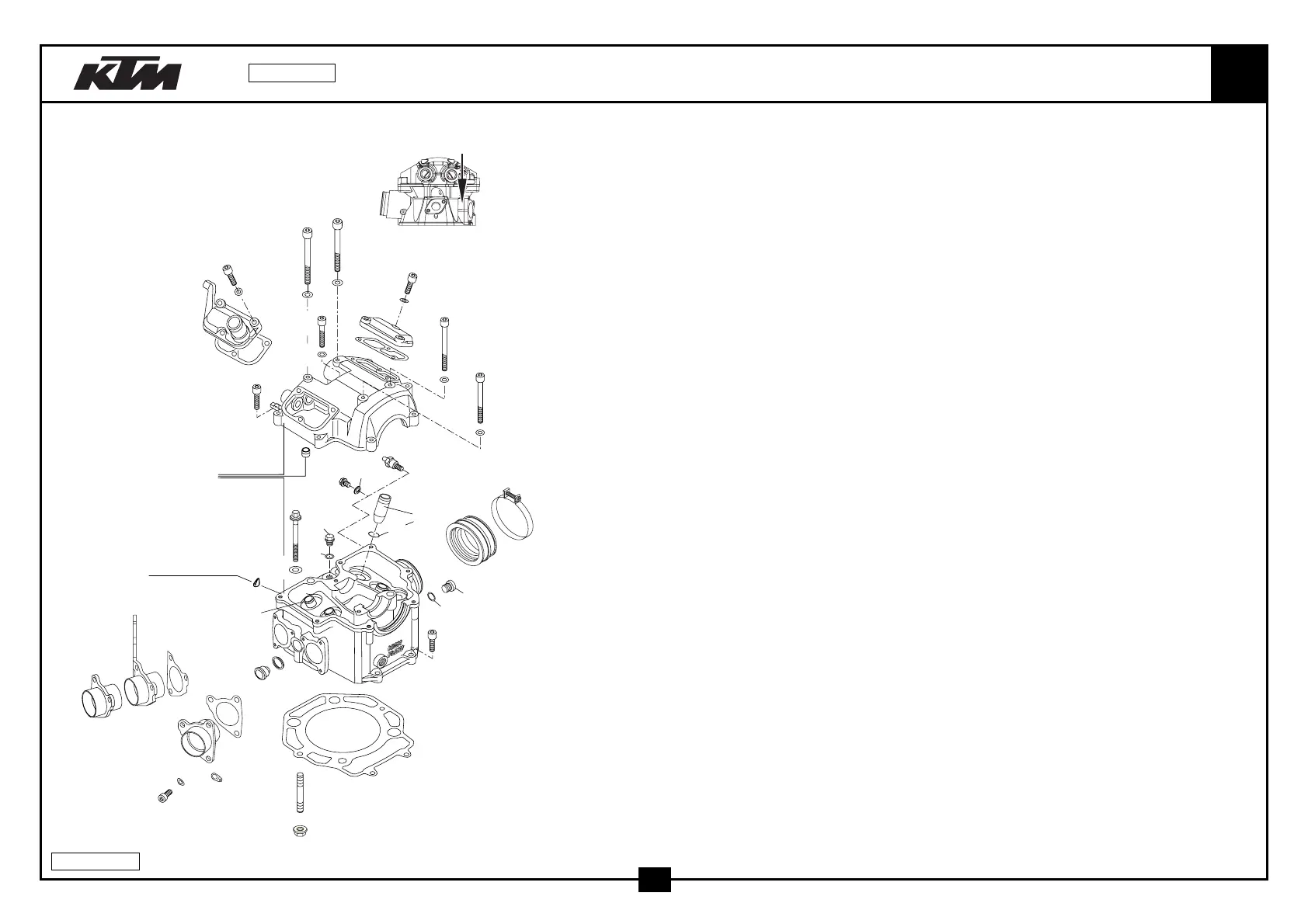

KTM 660SMC - Cylinder Head

ZYLINDERKOPF
CYLINDER HEAD 660
G = 660 ccm
Three-Bond Dichtmasse
Three-Bond Gasket
1
2
3
3
3
4
5
7
8
8
9
6
6
bl
bm
bn
bo
bp
br
bs
bt
dk
dl
dm
dm
em
ep
fl
fl
fm
fn
fo
fp
fq
fr
gk
gp
gq
gr
gs
8
cl
cl
cm
et
do
dp
dn
cn
04-586.36.2
8
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1* 586.36.020.100/23 ZYLINDERKOPF KPL. SM SLS 04 CYLINDER HEAD CPL. SM SAS 04 1
2 585.30.090.000 PASSBÜCHSE 9,8X7,2X10 DOWEL BUSHING 9,8X7,2X10 1
3 580.36.065.100 CU-DICHTRING 6 X 10 X 2 CU-SEAL RING 6 X 10 X 2 3
4 580.36.152.600 VENTILDECKEL VORNE '99 VALVE COVER FRONT '99 1
5 580.36.052.000 VENTILDECKEL HINTEN VALVE COVER REAR 1
6 580.36.053.000 VENTILDECKELDICHTUNG VALVE COVER GASKET 2
7 585.30.036.000 ZYLINDERKOPFDICHTUNG 102,3MM CYLINDER HEAD GASKET 102,3MM 1
8 0603 061001 CU-DICHTRING DIN7603-6X10X1 CU-SEAL RING DIN7603-6X10X1 7
9 0912 060353 ISK.SCHRAUBE DIN 912 M6X35 AH SCREW DIN0912-M 6X35 1
11 0912 060253 ISK.SCHRAUBE DIN 912 M6X25 AH SCREW DIN0912-M 6X25 2
12 490.30.028.000 BUNDMUTTER M8 COLLAR NUT M8 - 8MM HIGH 2
13 543.30.043.000 STIFTSCHRAUBE DIN0835-M 8X40 STUD DIN0835-M 8X40 2
600/612/620/625/640/660 LC4 600/612/620/625/640/660 LC4
14* 0125 100003 UNTERLEGSCHEIBE DIN 125 A 10,5 WASHER DIN0125-A10,5 4
15 580.36.099.100 BUNDSCHRAUBE M10X80 SW=13 10.9 COLLAR SCREW M10X80 WS=13 10.9 4
17 0993 012000 SPRENGRING DIN7993-RW12 CIRCLIP DIN7993-RW12 4
18 580.36.026.644 VENTILFÜHRUNG EINLASS KPL. VALVE GUIDE INTAKE CPL. 2
19 580.36.126.644 VENTILFÜHRUNG AUSLASS KPL. VALVE GUIDE EXHAUST CPL. 2
21 0603 070122 CU-DICHTRING DIN7603- 7X12X2 CU-SEAL RING DIN7603- 7X12X2 2
22 0015 060083 SK.BUNDSCHRAUBE M 6X8 SW=8 HH COLLAR SCREW M 6X8 WS=8 X
23* 583.36.020.190 UNTERDRUCKANSCHLUSS M6X1 '97 VACUUM CONECTION M6X1 '97 1
SEKUNDÄRLUFTSYSTEM SECONDARY AIR SYSTEM
30* 584.36.039.100 AUSPUFFFLANSCH KPL RE. SLS 04 EXHAUST FLANGE CPL. R/S SAS 04 1
31* 580.36.140.100 AUSPUFFLANSCH LINKS EXHAUST FLANGE L/S 1
32 580.36.041.000 AUSPUFFLANSCHDICHTUNG EXHAUST FLANGE GASKET 2
33* 580.36.040.100 AUSPUFFLANSCH RECHTS 04 EXHAUST FLANGE R/S 04 X
OHNE SLS WITHOUT SAS
34* 583.36.024.000 VERSCHLUSSPFROPFEN FÜR SLS PLUG SAS BORE X
35* 584.36.054.000 CU-FÜLLRING 12 X 16 X 2 CU-SEAL RING 12 X 16 X 2 1
42 585.36.044.000 GUMMIMUFFE RALLYE 2001 INTAKE BOOT RALLYE 2001 1
45 590.30.061.000 % SCHELLE D=56MM B=9MM M4X25 CLAMP D=56MM B=9MM M4X25 2
49 0912 060163 ISK.SCHRAUBE DIN 912 M6X16 AH SCREW DIN0912-M 6X16 6
51 0912 060203 ISK.SCHRAUBE DIN 912 M6X20 AH SCREW DIN0912-M 6X20 6
52 0912 060253 ISK.SCHRAUBE DIN 912 M6X25 AH SCREW DIN0912-M 6X25 6
53 510.05.074.000 FEDERLASCHE RETAINING PLATE 4
54 0912 070553 ISK.SCHR. DIN0912-M 7X55 12.9 AH SCREW DIN0912-M 7X55 12.9 1
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
04-586.36.2
2004
