SERVICE WORK ON THE CHASSIS 13
63

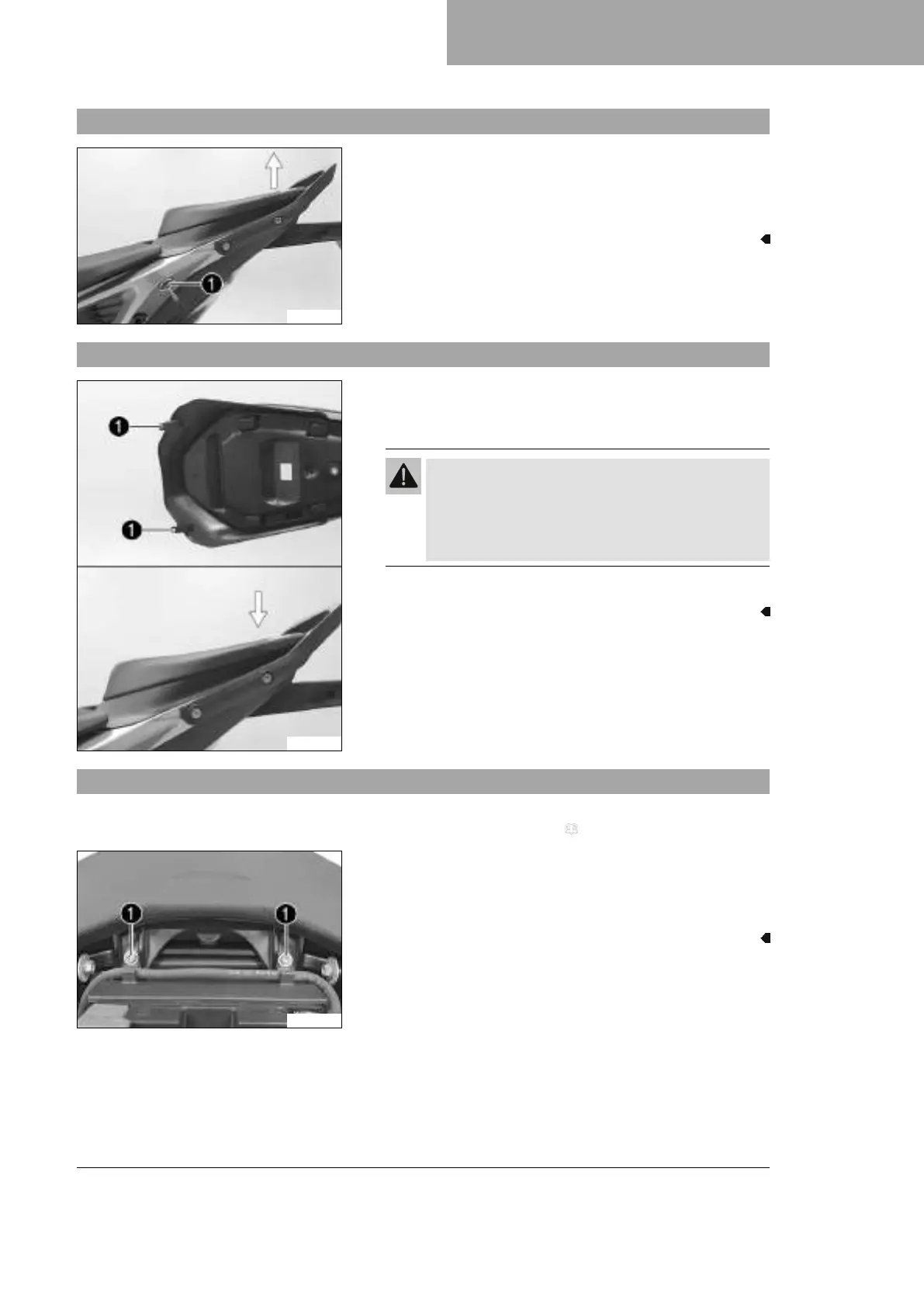

13.6 Removing the passenger seat
V01232-10
–
Insert the ignition key in seat lock
1
and turn it clockwise.
– Raise the rear of the passenger seat cover, push it toward the
rear, and remove it upward.
– Remove the ignition key from the seat lock.
13.7 Mounting the passenger seat
V01233-10
–
Hook holding lugs
1
of the passenger seat onto the storage
compartment, lower the rear and push forward.
– Press passenger seat downward until it clicks into place.
Warning
Danger of accidents The seat can come loose from the
anchoring if it is not mounted correctly.
– After assembly, check whether the seat is correctly
locked and cannot be pulled up.
– Finally, check that the passenger seat is correctly mounted.
13.8 Removing the front rider's seat
Preparatory work
– Remove the passenger seat. ( p. 63)
V01239-10
Main work
–
Remove screws
1
.
– Raise the rear of the front rider's seat, pull the seat back, and
lift it off.
