KTM 790 DUKE 2021 - Removing the Cover of the Headlight Mask Rack

16 ELECTRICAL SYSTEM
94
V01212-11
–
Mount adjusting screw
2
.
Finishing work
– Check the headlight setting. ( p. 95)

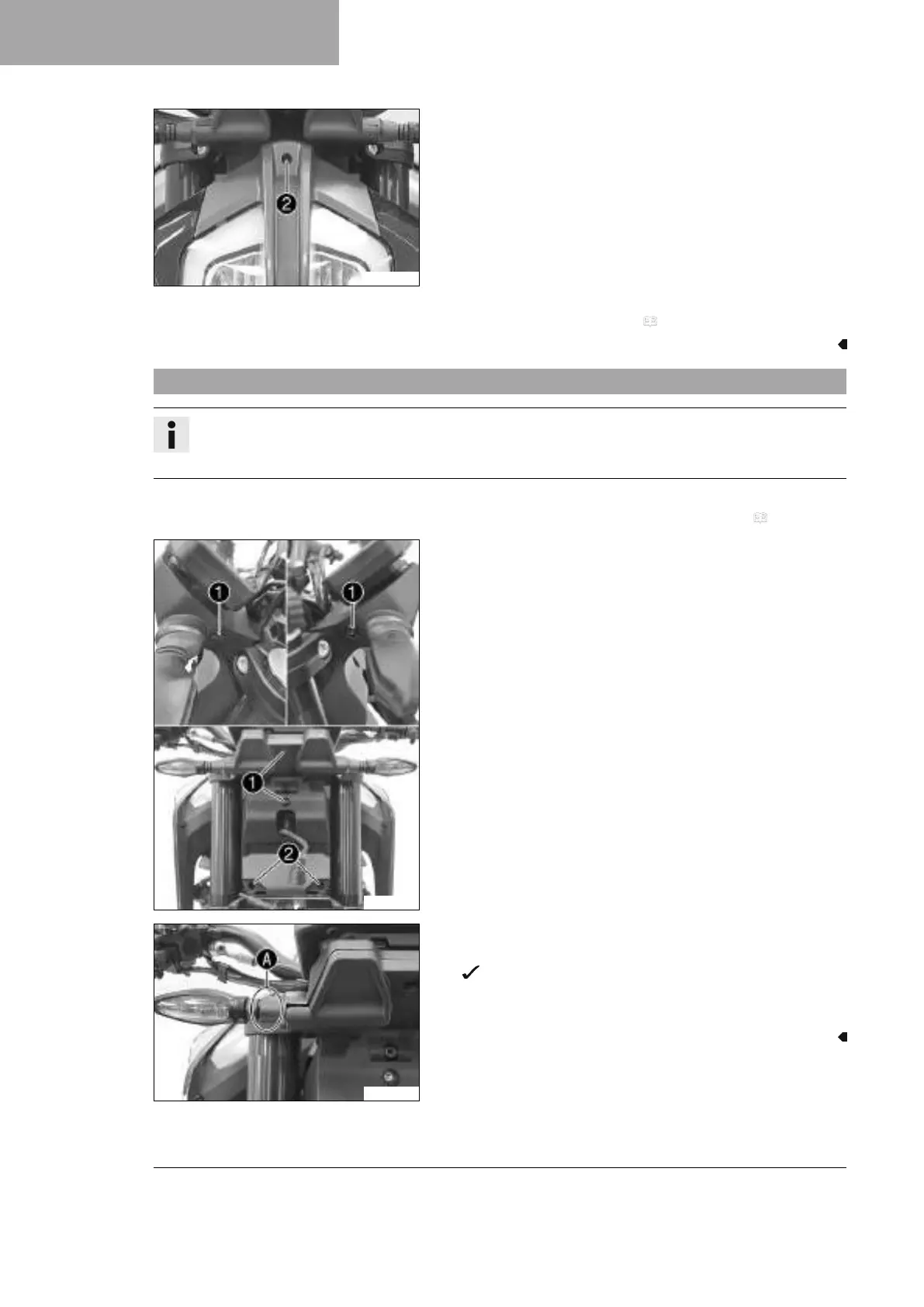

16.10 Removing the cover of the headlight mask rack
Info
The cover of the headlight mask rack must be removed in order to gain access to the ACC1 and ACC2
power supply.
Preparatory work
– Loosen the headlight mask with the headlight. ( p. 93)
V01218-10
Main work
–
Remove screws
1
.
–
Remove screws
2
.
V01219-10
–
Hold turn signal in the area
A
and carefully press against the
direction of travel.
The cover is detached as illustrated.
– Repeat the operation on the opposite side.
– Take off the cover.
