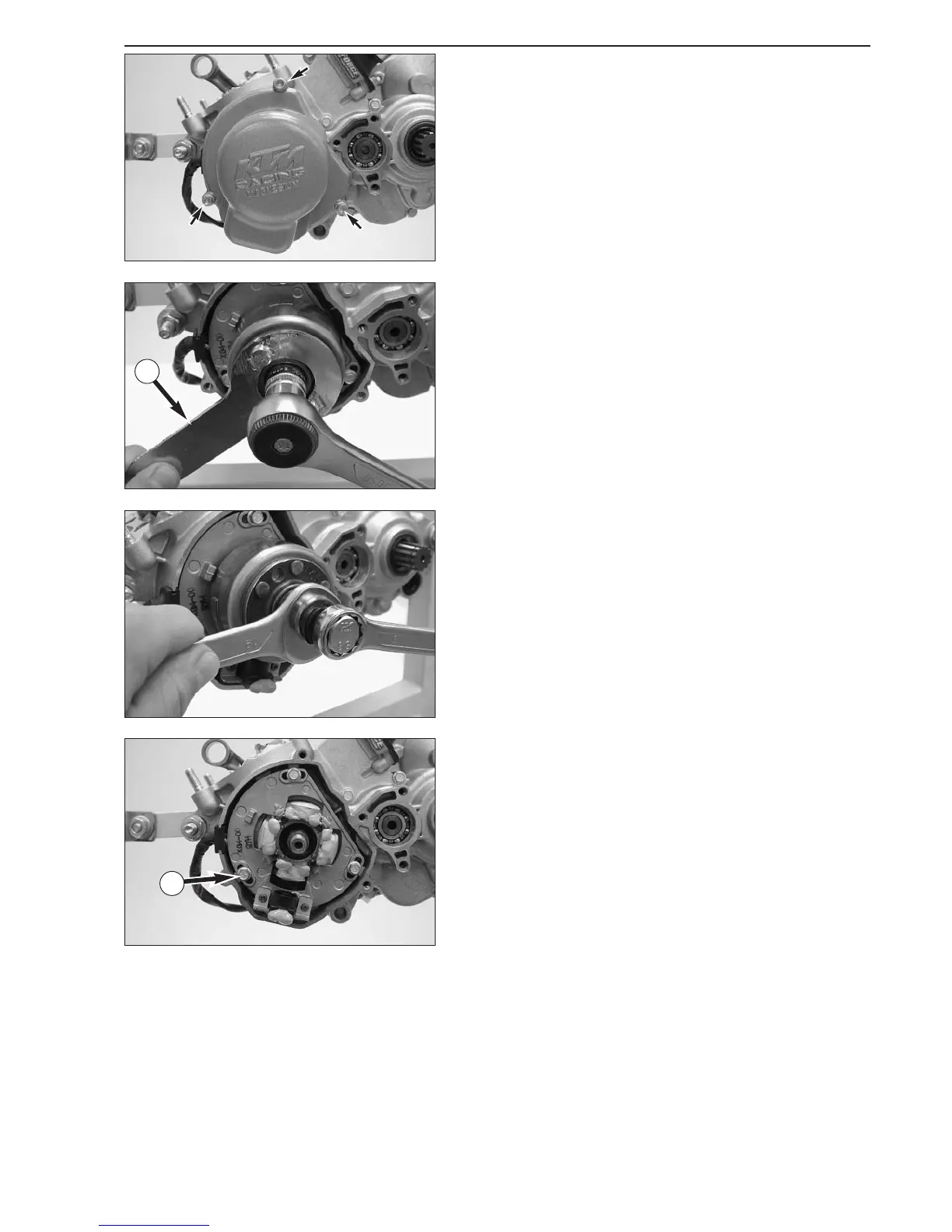

Dismounting the ignition
– Undo the 3 bolts and remove the ignition cover together with the
gasket.
– Apply the holding spanner 546.29.012.000
1 and undo the collar
nut.
– Remove the collar nut and the locking cant ring.
– Put the protection cover 510.12.016.000 on the crankshaft thread,
twist in the flywheel extractor 546.29.009.044 and remove the
flywheel.
– Undo the 3 bolts
2 and remove the stator together with the base
plate.
