ELECTRICAL SYSTEM 14
99

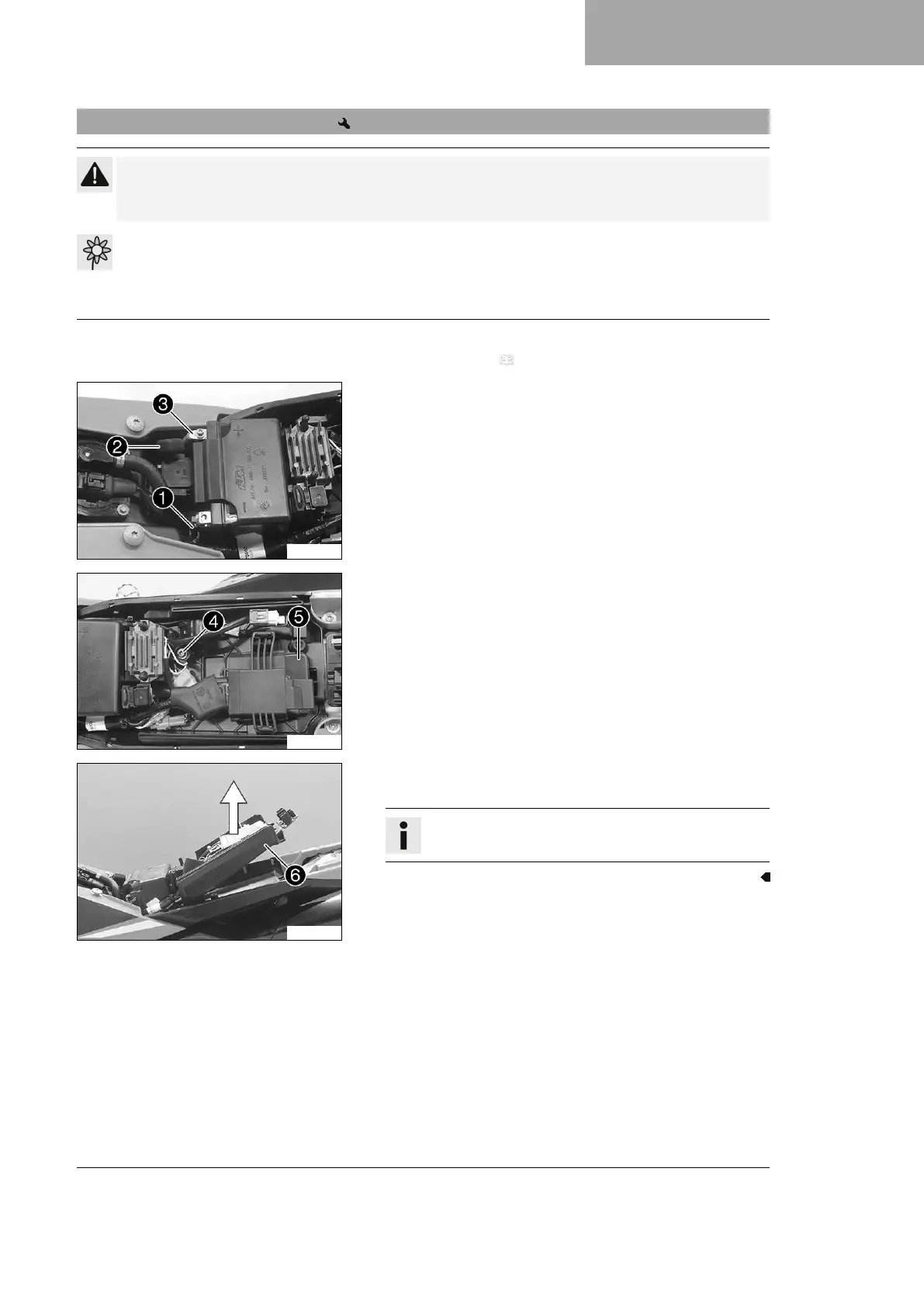

14.1 Removing the 12-V battery
Caution
Danger of burns The voltage regulator gets very hot when the vehicle is driven.
– Allow the voltage regulator to cool down before performing any work.
Note
Environmental hazard 12 V batteries contain environmentally hazardous materials.
– Do not dispose of 12 V batteries as household waste.
– Dispose of 12 V batteries at a collection point for used batteries.
Preparatory work
– Remove the seat. ( p. 62)
F03729-10
Main work
–
Disconnect negative cable
1
from the 12-V battery.
–
Pull back positive terminal cover
2
and disconnect positive
cable
3
from the 12-V battery.
F03730-10
–
Remove screw
4
.
–
Pull off engine control unit
5
from the holder and hang to
the side.
F03731-10
–
Pull up the battery holding bracket
6
and remove the 12-V
battery to the rear.
Info
Pay attention to the wiring harness.
