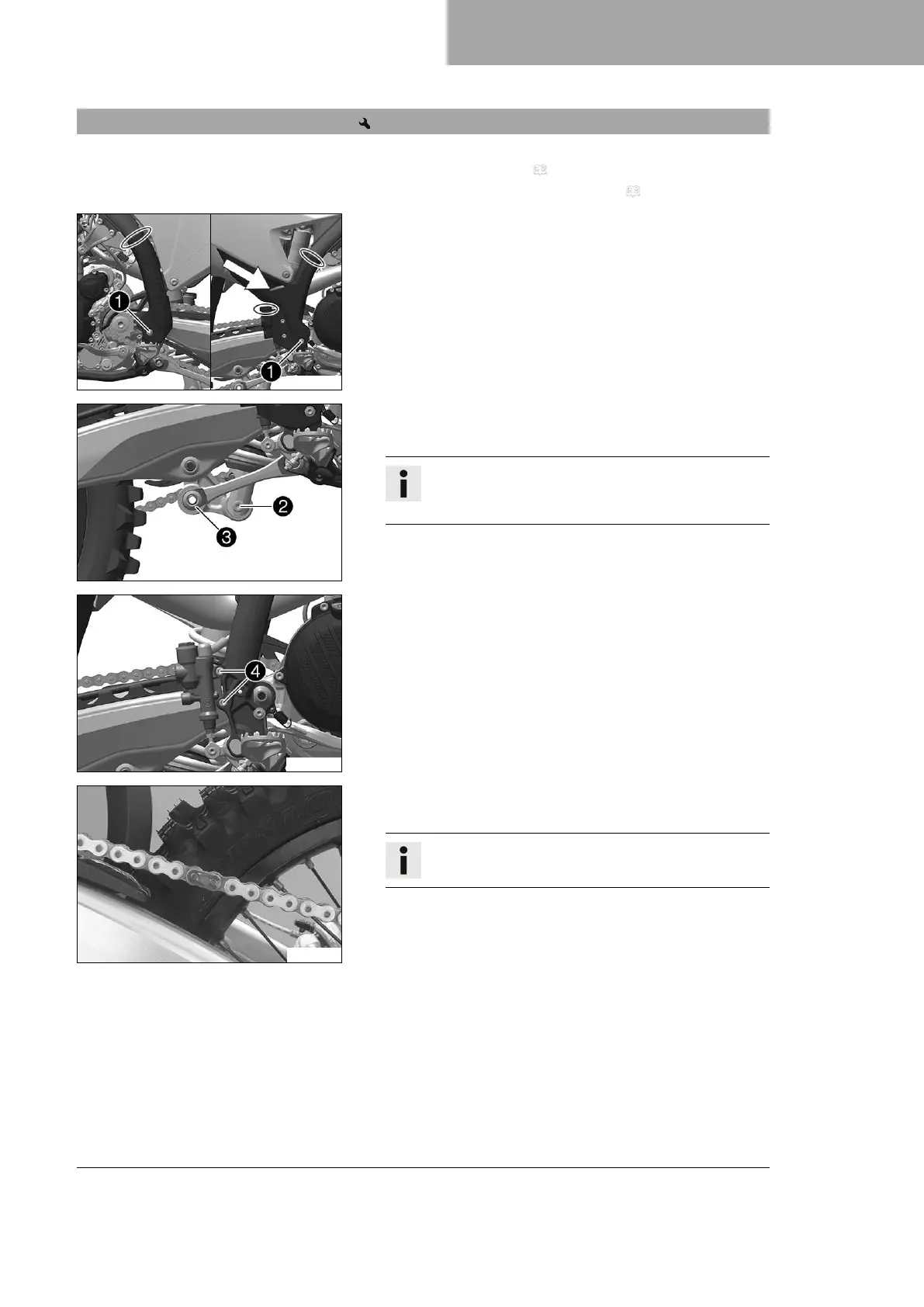

11.18 Removing the shock absorber
Preparatory work
– Remove main silencer. ( p. 67)
– Raise the motorcycle with a lift stand. ( p. 49)
S05340-10
Main work
– Remove the cable ties.
–
Remove screws
1
with the washers.
– Take off the left frame protector.
– Push the right frame protector to the front and take off at the
bottom.
S05341-10
–
Remove screw
2
.
–
Remove fitting
3
.
Info
Raise the swingarm slightly to be able to remove the
screws more easily.
S05344-10
–
Remove screws
4
.
– Pull off foot brake cylinder from the push rod.
F03702-01
– Remove the connecting link of the chain.
– Take off the chain.
Info
Cover the components to protect them against damage.
