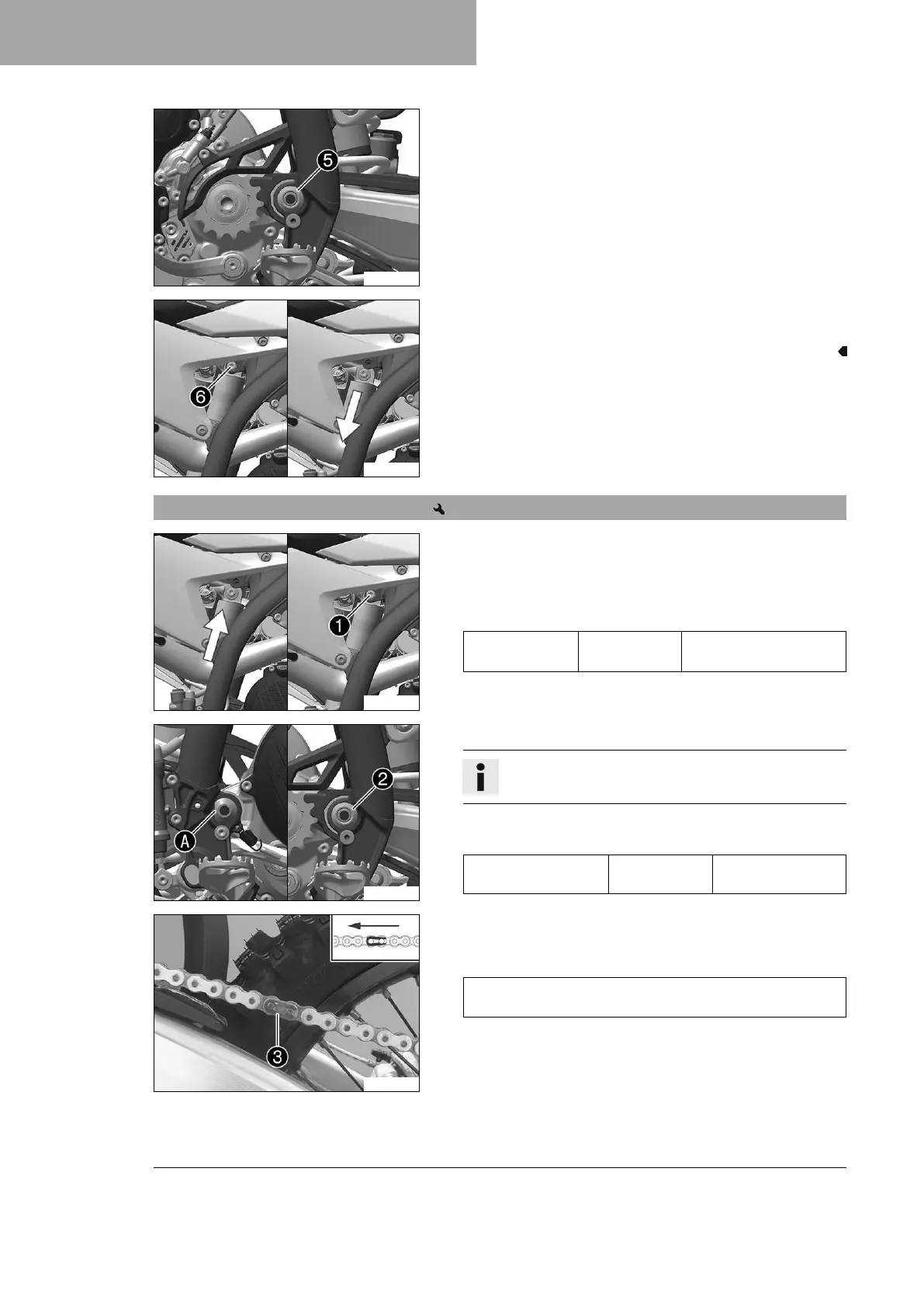

11 SERVICE WORK ON THE CHASSIS
60
S05345-10
–
Remove nut
5
and the swingarm pivot.
– Push the link fork back and secure it against falling over.
S05346-10
–
Hold the shock absorber and remove screw
6
.
– Remove the shock absorber carefully at the bottom.
11.19 Installing the shock absorber
S05346-11
Main work
– Carefully position the shock absorber into the vehicle from the
bottom.
–
Mount and tighten screw
1
.
Guideline
Screw, top
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
S05347-10
– Position the link fork and mount the swingarm pivot.
Info
Pay attention to flat area
A
.
–
Mount and tighten nut
2
.
Guideline
Nut, fork pivot M16x1.5 100 Nm
(73.8 lbf ft)
F03702-12
– Mount the chain.
–
Connect the chain with connecting link
3
.
Guideline
The closed side of the chain joint lock must face in the
direction of travel.
