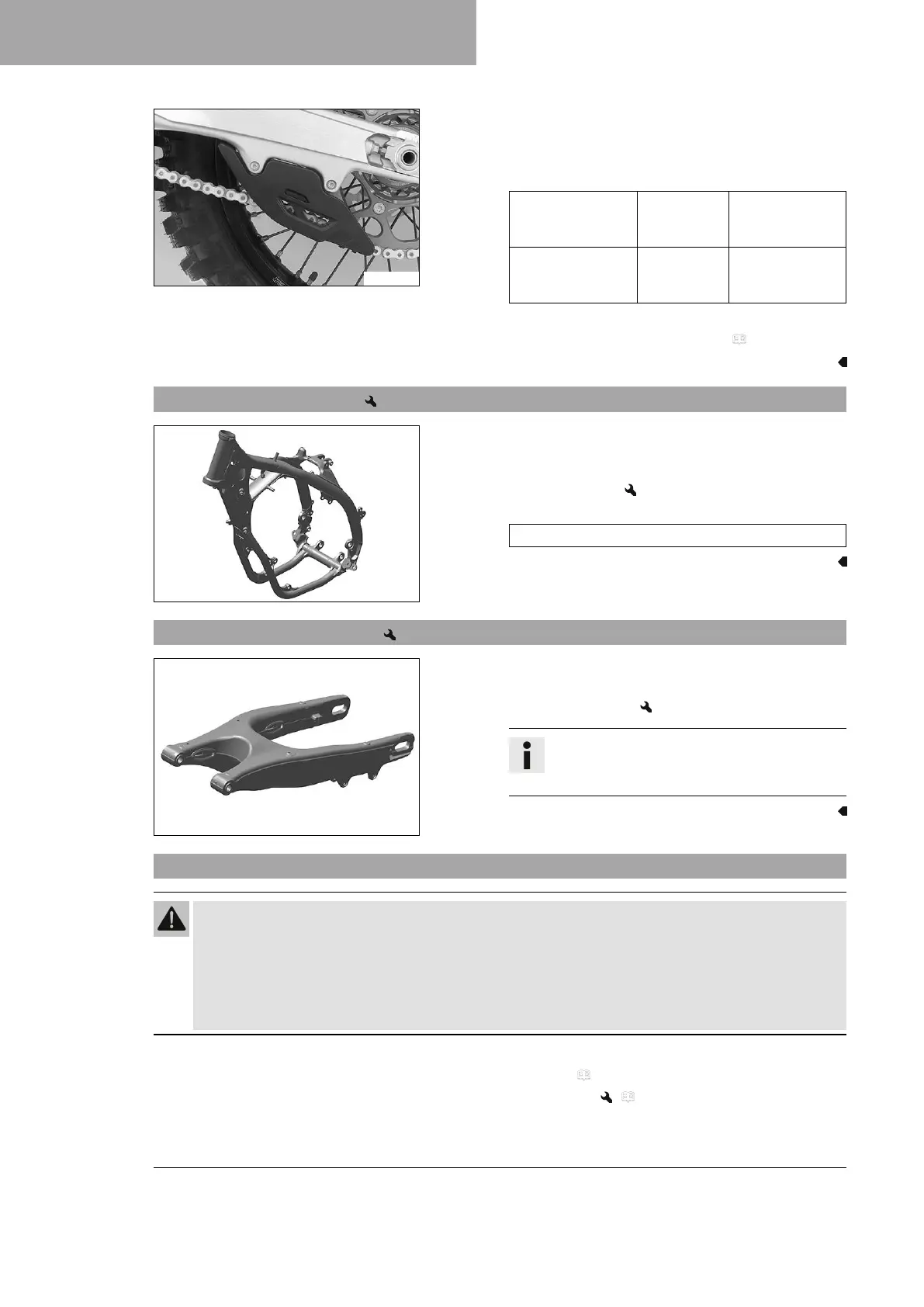

11 SERVICE WORK ON THE CHASSIS
76
F03682-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Screw, chain
guide on link fork
at the rear
M6x16 10 Nm
(7.4 lbf ft)
Screw, chain
guide on link fork
at the front
M6x45 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 49)
11.38 Checking the frame
F03645-01
– Check the frame for damage, cracks, and deformation.
» If the frame shows signs of damage, cracks, or deforma-
tion:
– Change the frame.
Guideline
Repairs on the frame are not permitted.
11.39 Checking the link fork
F03646-01
– Check the link fork for damage, cracking, and deformation.
» If the link fork exhibits damage, cracking, or deformation:
– Change the link fork.
Info
Always replace a damaged link fork. Repairing
the link fork is not authorized by KTM.
11.40 Checking the throttle cable routing
Warning
Danger of accidents The throttle cable can become kinked, trapped or blocked if it is not routed cor-
rectly.
If the throttle cable is kinked, trapped or blocked, the speed can no longer be controlled.
– Make sure that the throttle cable routing and the play in throttle cable complies with the specifica-
tion.
Preparatory work
– Remove the seat. ( p. 62)
– Remove the fuel tank. ( p. 68)
