SERVICE WORK ON THE CHASSIS 11
75
S05363-10

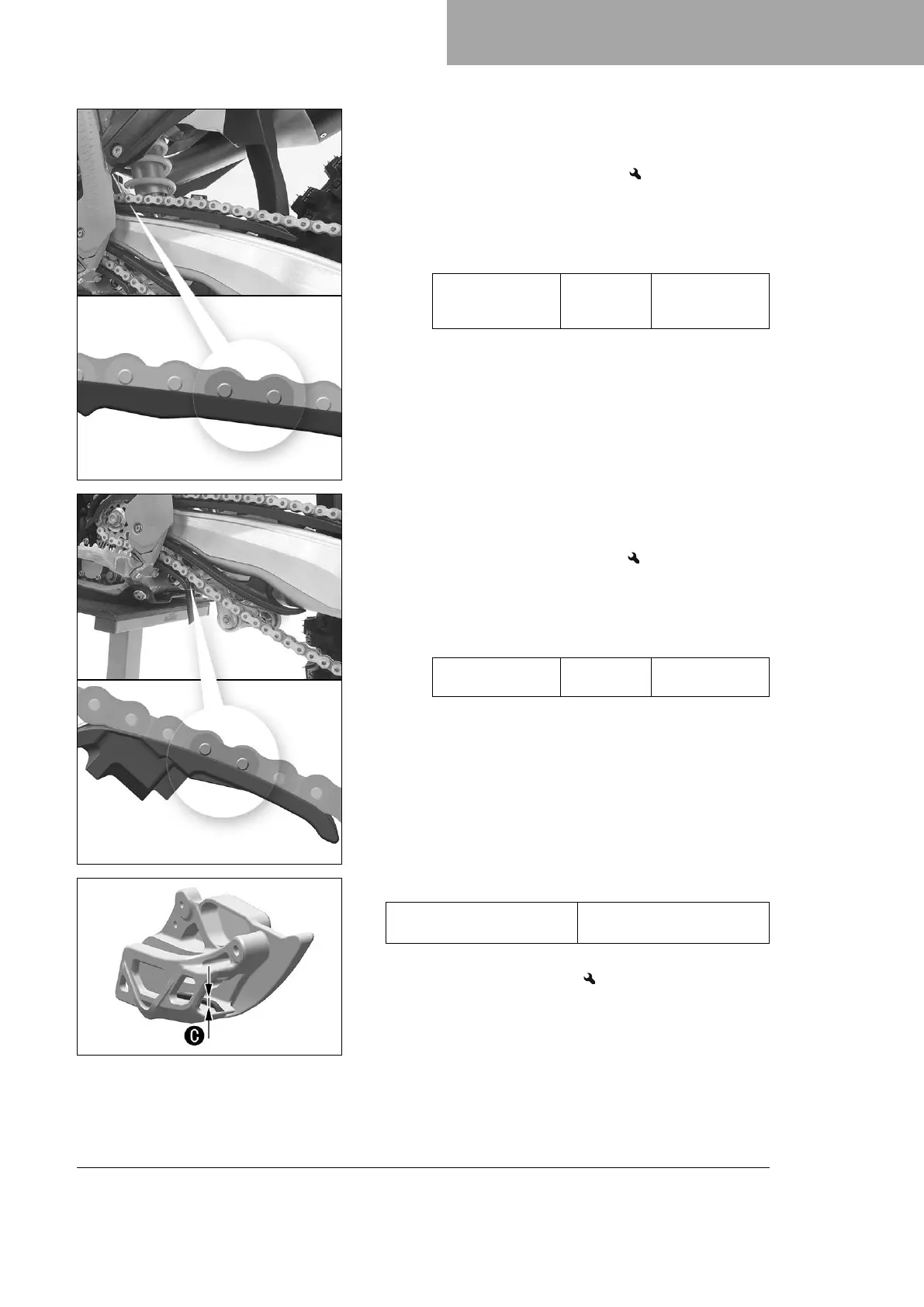

– Check the chain sliding guard for wear.
» If the lower edge of the chain pins is in line with, or below,
the chain sliding guard:
– Change the chain sliding guard.
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten screws on the chain sliding guard.
Guideline
Screw, chain slid-
ing guard on link
fork
M6 6 Nm (4.4 lbf ft)
F03714-10
– Check the chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or below
the chain sliding piece:
– Change the chain sliding piece.
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten screw on the chain sliding piece.
Guideline
Screw, chain slid-
ing piece
M8 15 Nm
(11.1 lbf ft)
F03687-10
–
Check the chain guide with a slide gage for dimension
C
.
Minimum thickness
C
of
the chain guide
6 mm (0.24 in)
» If the measured value is less than the specified value:
– Change the chain guide.
