SERVICE WORK ON THE CHASSIS 11
67

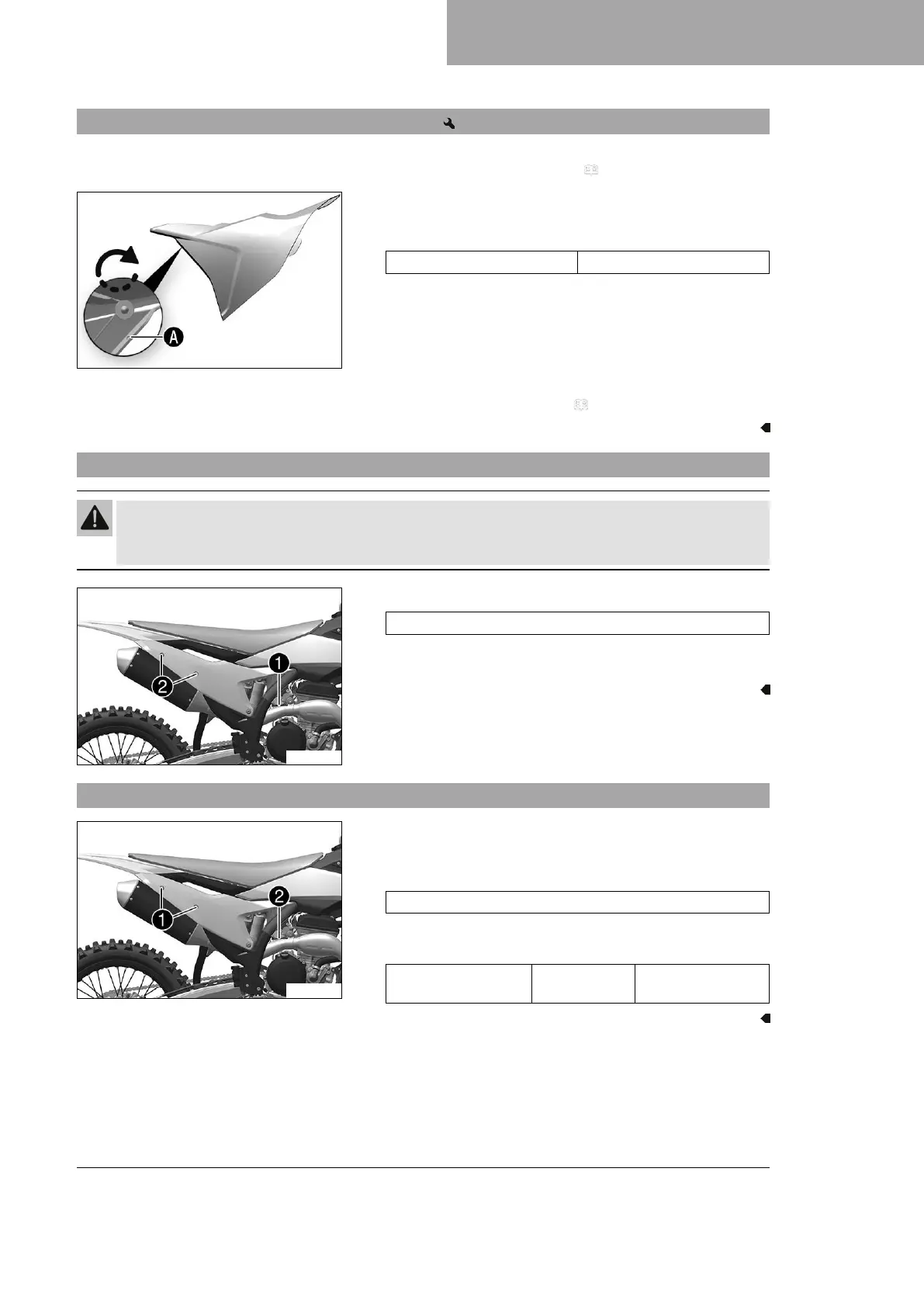

11.27 Preparing air filter box cover for securing
Preparatory work
– Remove the air filter box cover. ( p. 63)
F03679-10
Main work
–
Drill a hole at marking
A
.
Guideline
Diameter 6 mm (0.24 in)
Finishing work
– Install the air filter box cover. ( p. 64)
11.28 Removing the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
–
Allow the exhaust system to cool down before performing any work on the vehicle.
S05359-10
–
Detach spring
1
.
Spring hook (50305017000C1)
–
Remove screws
2
with the washers and take off the main
silencer.
11.29 Installing the main silencer
S05359-11
– Position the main silencer.
–
Mount screws
1
with washers, but do not tighten yet.
–
Attach spring
2
.
Spring hook (50305017000C1)
–
Tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
