12 BRAKE SYSTEM
86
Info
Do not operate the hand brake lever if the brake caliper
has been removed.

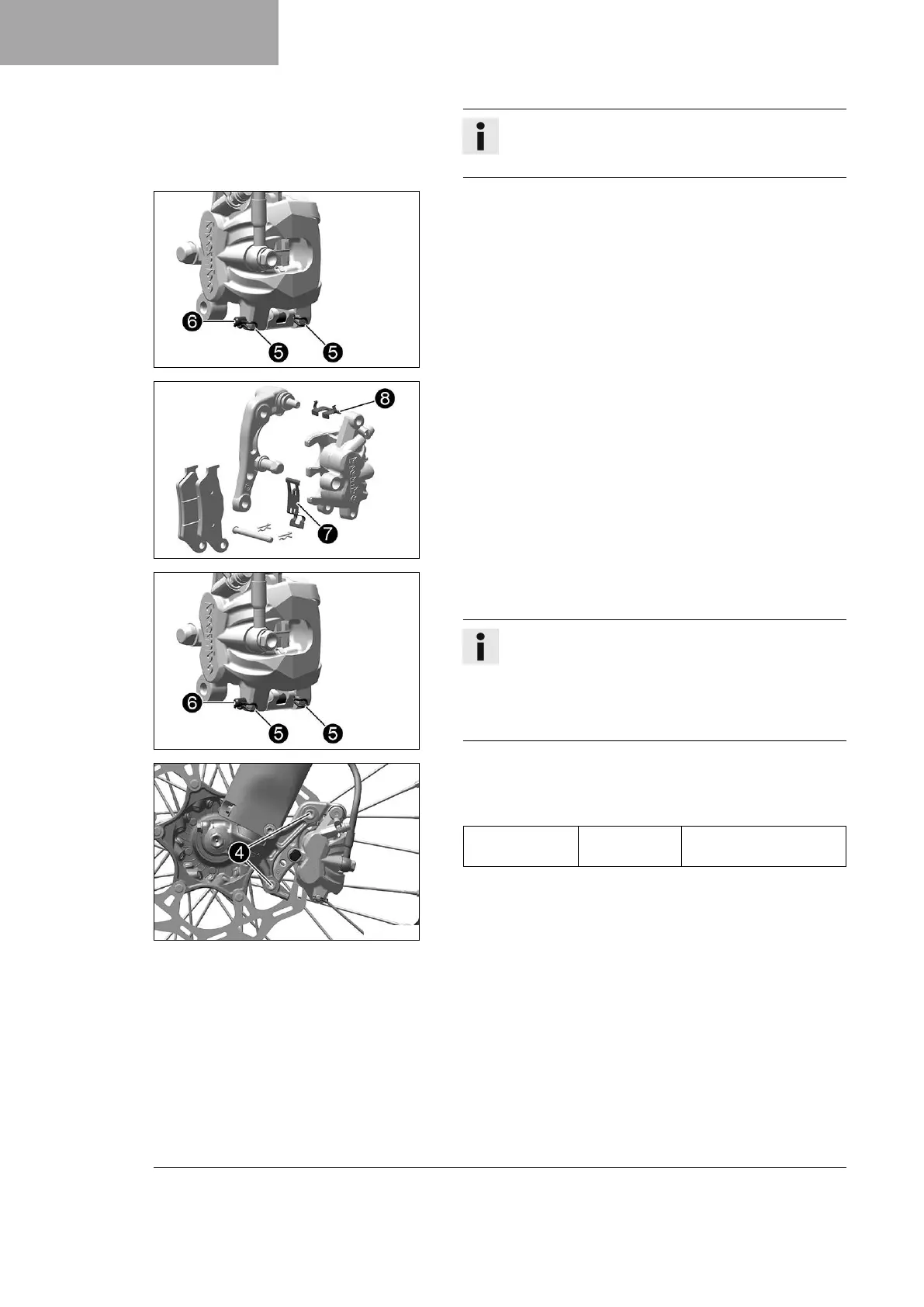

F03696-10
–
Remove cotter pins
5
, pull out pin
6
, and remove the
brake linings.
– Clean the brake caliper and the brake caliper bracket.
F03692-10
–
Check that spring plate
7
in the brake caliper and brake pad
sliding plate
8
in the brake caliper bracket are seated cor-
rectly.
F03696-10
–
Insert the new brake linings, insert pin
6
, and mount cotter
pins
5
.
Info
Always change the brake linings in pairs.
To make it easier to mount the pin, push the brake lin-
ings against the retainer spring.
Make sure the brake linings and retainer spring are
seated correctly.
S05364-10
– Position the brake caliper.
–
Mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Operate the hand brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
