2 SETUP
4
A00043-10

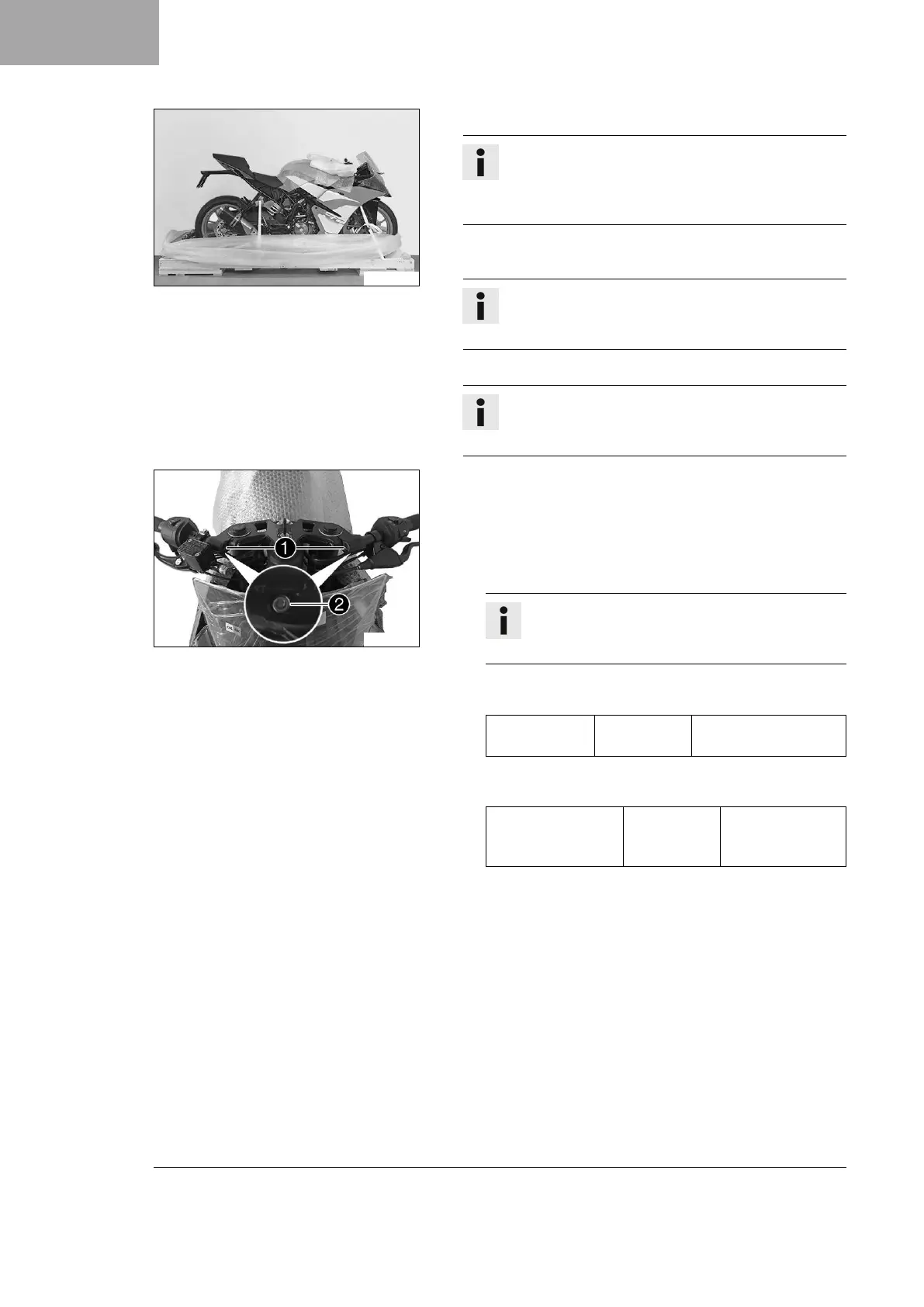

– Roll down the film at the sides.
Info
To avoid damaging the motorcycle during unpacking,
leave the other films on the vehicle until you have fin-
ished work on the vehicle.
– Remove the separate enclosure and unpack it. Check the sepa-
rate enclosure for completeness.
Info
The procedure in the event of missing components is
described in the customer service manual.
– Check the vehicle for transport damage.
Info
The procedure in the event of transport damage is
described in the customer service manual.
S01885-10
Condition
Left and right handlebar stub not mounted.
– Remove protective film on the left and right handlebar
stub.
– Mount left and right handlebar stub on the upper triple
clamp.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Mount and tighten screws
1
.
Guideline
Screw, handle-
bar stub
M6 8 Nm (5.9 lbf ft)
Loctite
®
243™
–
Mount and tighten screws
2
.
Guideline
Screw, anti-rotation
lock, handlebar
stub
M5 4 Nm (3 lbf ft)
– Position the clutch and hand brake assembly on the han-
dlebar stubs, mount the clamp screws and tighten.
– Attach the clutch cable to the clutch lever and slide on the
protection cap.
– Connect the cable of the brake light switch to the hand
brake assembly.
