DIESEL ENGINE
OS
SERIES
WSM,
01640
11900F10340
P(
\??
I
~11900F10350
I1

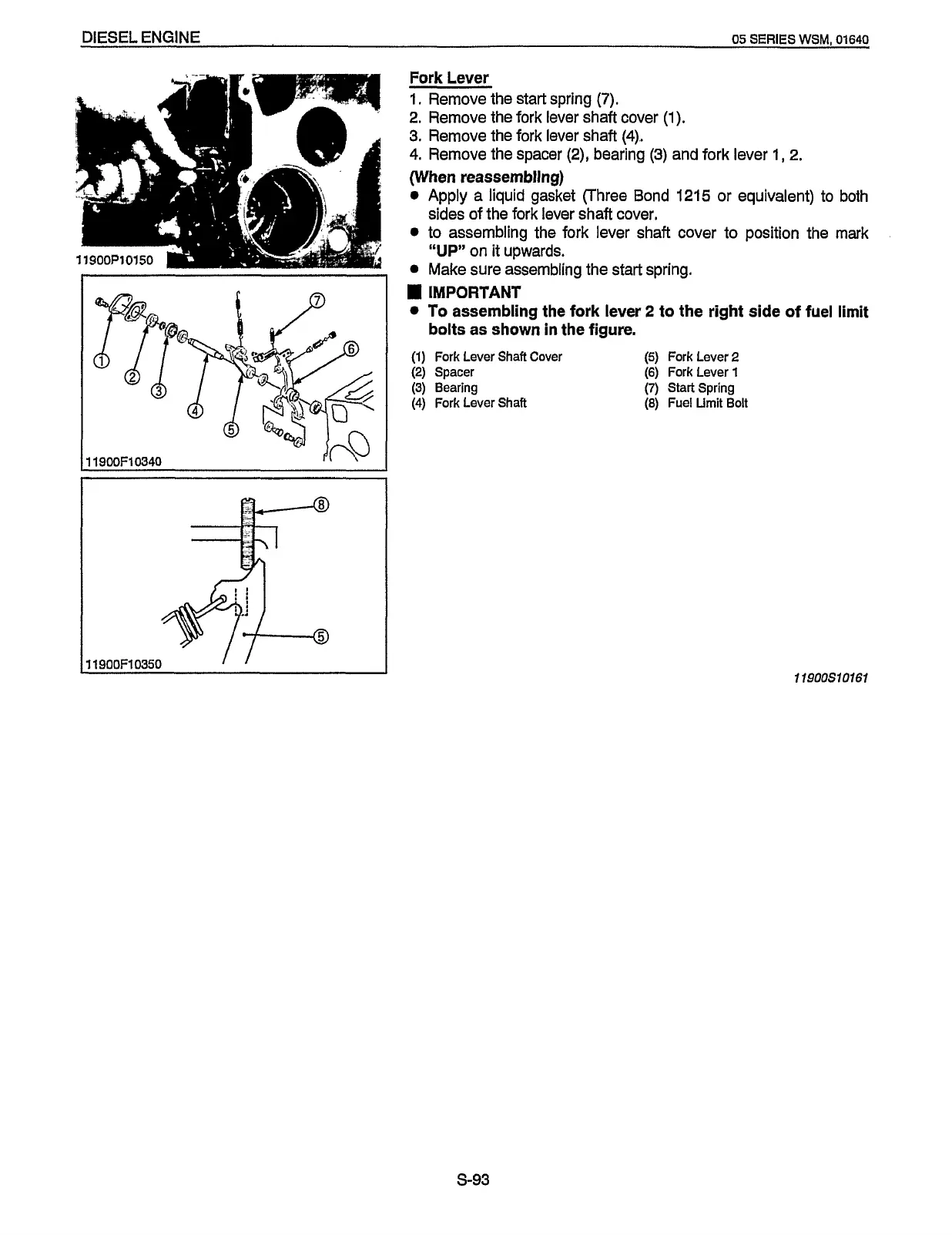

Fork Lever
1.
Remove the start spring
(7).
2.
Remove the fork lever shaft cover
(1).
3.
Remove the fork lever shaft
(4).
4.
Remove the spacer
(2),
bearing
(3)
and fork lever
1,
2.
(When reassembllng)
Apply a liquid gasket (Three Bond
1215
or
equivalent) to both
to assembling the fork lever shaft cover to position the mark
Make sure assembling the start spring.
To assembling the fork lever
2
to the right side of fuel limit
(1)
Fork Lever Shaft Cover
(5)
Fork Lever
2
(2)
Spacer
(6)
Fork Lever
1
(3)
Bearing
(7)
Start Spring
(4)
Fork Lever Shaft
(8)
Fuel Umit Bolt
sides of the fork lever shaft cover,
‘‘UP”
on
it upwards.
IMPORTANT
bolts as shown in the figure.
11900S10161
5-93
