DIESEL ENGINE
05
SERIES
WSM,
01640
[AI
0164OF10360
I00000f10300
\\
)OOOOF10310
TP

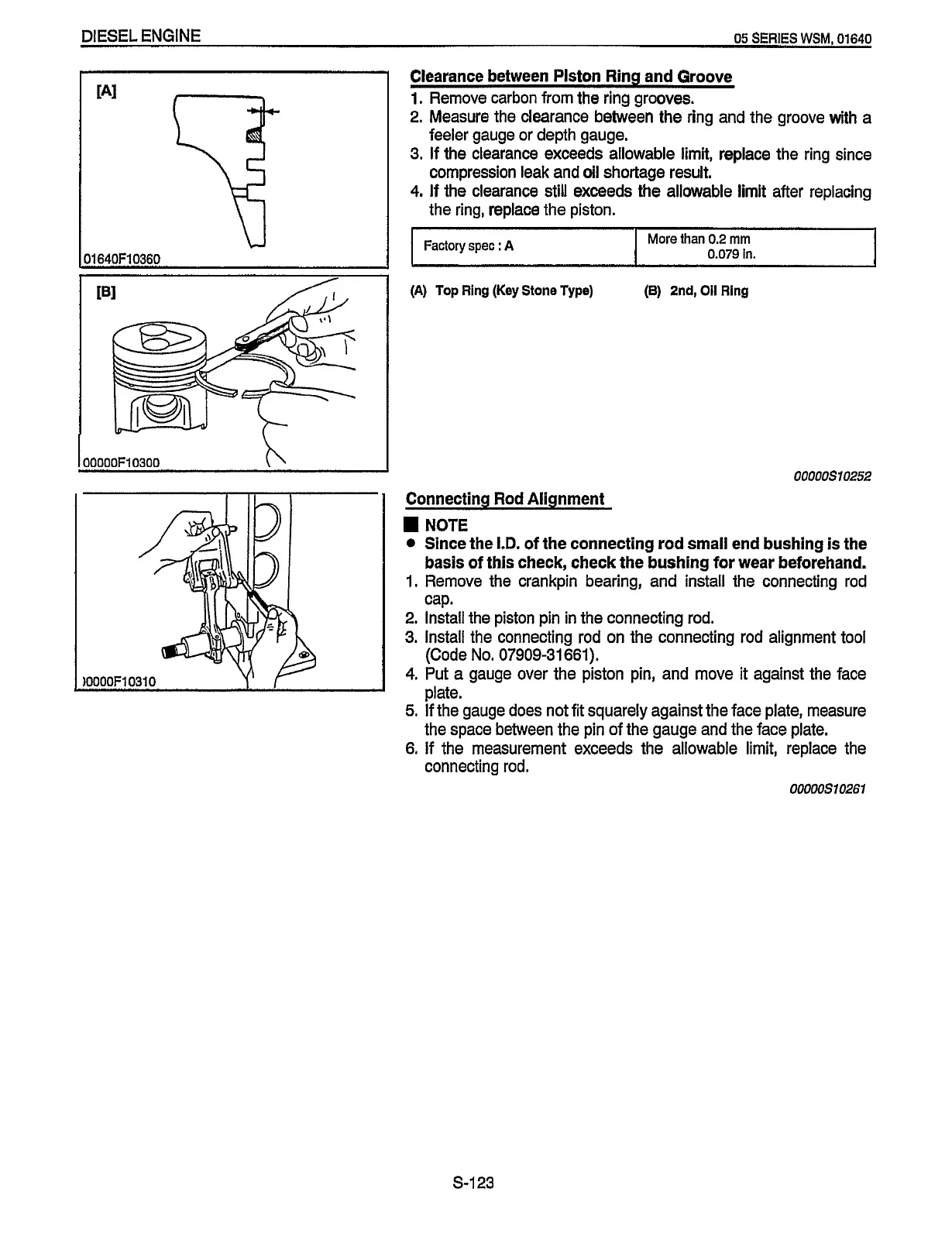

Clearance between Piston Ring and Groove
1. Remove carbon from the ring grooves.
2.
Measure the clearance between the ring and the groove with a
3.
If the clearance exceeds allowable limit, replace the ring since
4.
If
the clearance still exceeds the allowable limit after replacing
feeler gauge
or
depth gauge.
compression leak and oil shortage result.
the ring, replace the piston.
More
than
0.2
mm
0.079
in.
Factory
spec
:
A
(A)
Top
Ring
(Key Stone Type)
(B)
Snd,
Oil
Ring
OOOOOS10252
Connecting Rod Alignment
NOTE
Since the
I.D.
of the connecting rod small end bushing is the
basis of this check, check the bushing for wear beforehand.
1. Remove the crankpin bearing, and install the connecting rod
cap.
2.
Install the piston pin in the connecting rod.
3.
Install the connecting rod on the connecting rod alignment tool
(Code
No.
07909-31661).
4.
Put
a gauge over the piston pin, and move
it
against the face
plate.
5. If the gauge does not fit squarely against the face plate, measure
the space between the pin
of
the gauge and the face plate.
6. if the measurement exceeds the allowable limit, replace the
connecting rod.
00000S10261
S-123
