DIESEL ENGINE
05 SERIES
WSM,
01640
[2]

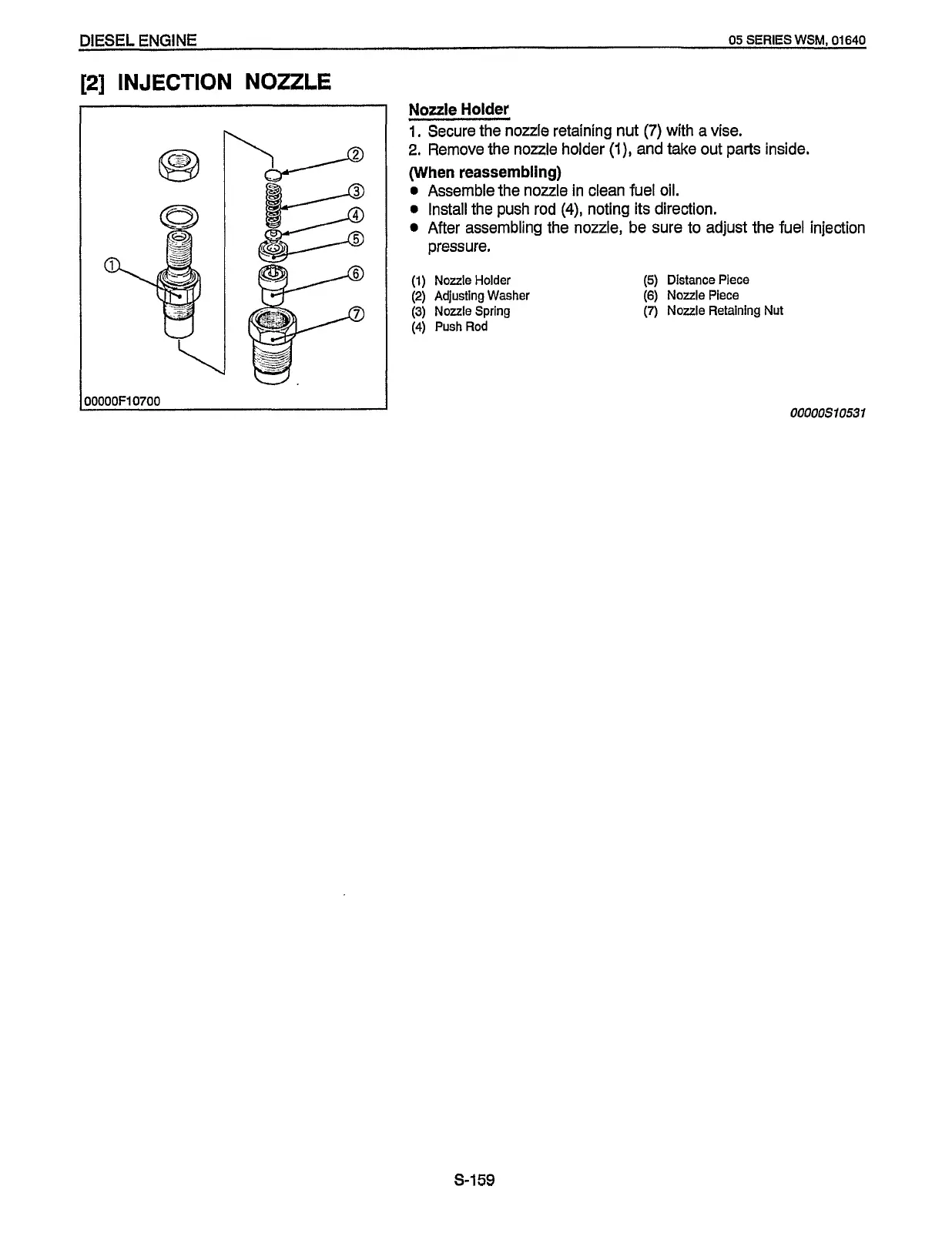

INJECTION NOZZLE
I
[00000F10700
Nozzle Holder
1.
Secure the nozzle retaining nut (7) with a vise.
2.
Remove the nozzle holder
(l),
and take out parts inside.
(When reassembling)
e
Assemble the nozzle in clean fuel oil.
e
Install the push rod
(4),
noting its direction.
After assembling the nozzle, be sure to adjust the fuel injection
pressure.
(1) Nozzle Holder
(2)
Adjusting
Washer
(3)
Nozzle Spring
(4)
PushRod
(5)
Distance Piece
(6)
Nozzle Piece
(7) Nozzle Retaining
Nut
OOOOOS10531
S-159
Redistribution or publication of this document,
by any means, is strictly prohibited.
