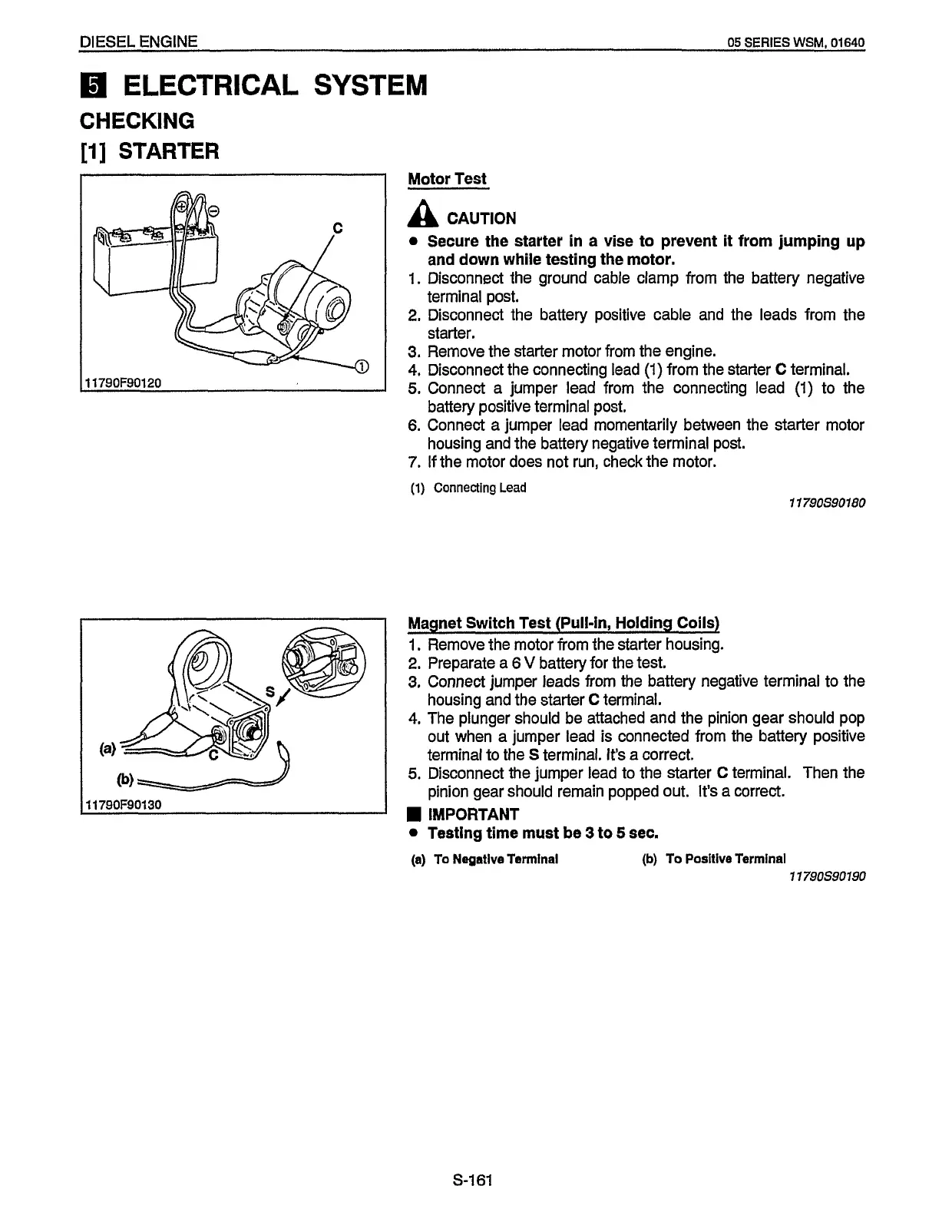

DIESEL ENGINE 05 SERIES WSM, 01640
ELECTRICAL SYSTEM
CHECKING
[I] STARTER
Ill79OF90120
(4
1 1790F90130
Motor Test
A CAUTION
Secure the starter in a vise to prevent it from jumping up
1. Disconnect the ground cable clamp from the battery negative
2. Disconnect the battery positive cable and the leads from the
3. Remove the starter motor from the engine.
4. Disconnect the connecting lead (1) from the starter C terminal.
5. Connect a jumper lead from the connecting lead (1) to the
6. Connect a jumper lead momentarily between the starter motor
7. If the motor does not run, check the motor.
(1) Connecting Lead
and down while testing the motor.
terminal post.
starter.
battery positive terminal post.
housing and the battery negative terminal post.
11790S90180
Magnet Switch Test (Pull-in, Holding Coils)
1. Remove the motor from the starter housing.
2. Preparate a 6 V battery for the test.
3. Connect jumper leads from the battery negative terminal to the
housing and the starter
C terminal.
4. The plunger should be attached and the pinion gear should pop
out when a jumper lead
is connected from the battery positive
terminal to the
S terminal. It’s a correct.
5. Disconnect the jumper lead to the starter C terminal. Then the
pinion gear should remain popped out.
It’s a correct.
H IMPORTANT
Testing time must be 3 to 5 sec.
(a) To Negative Terminal
(b) To Positive Terminal
11 7QOS90190
S-I61
