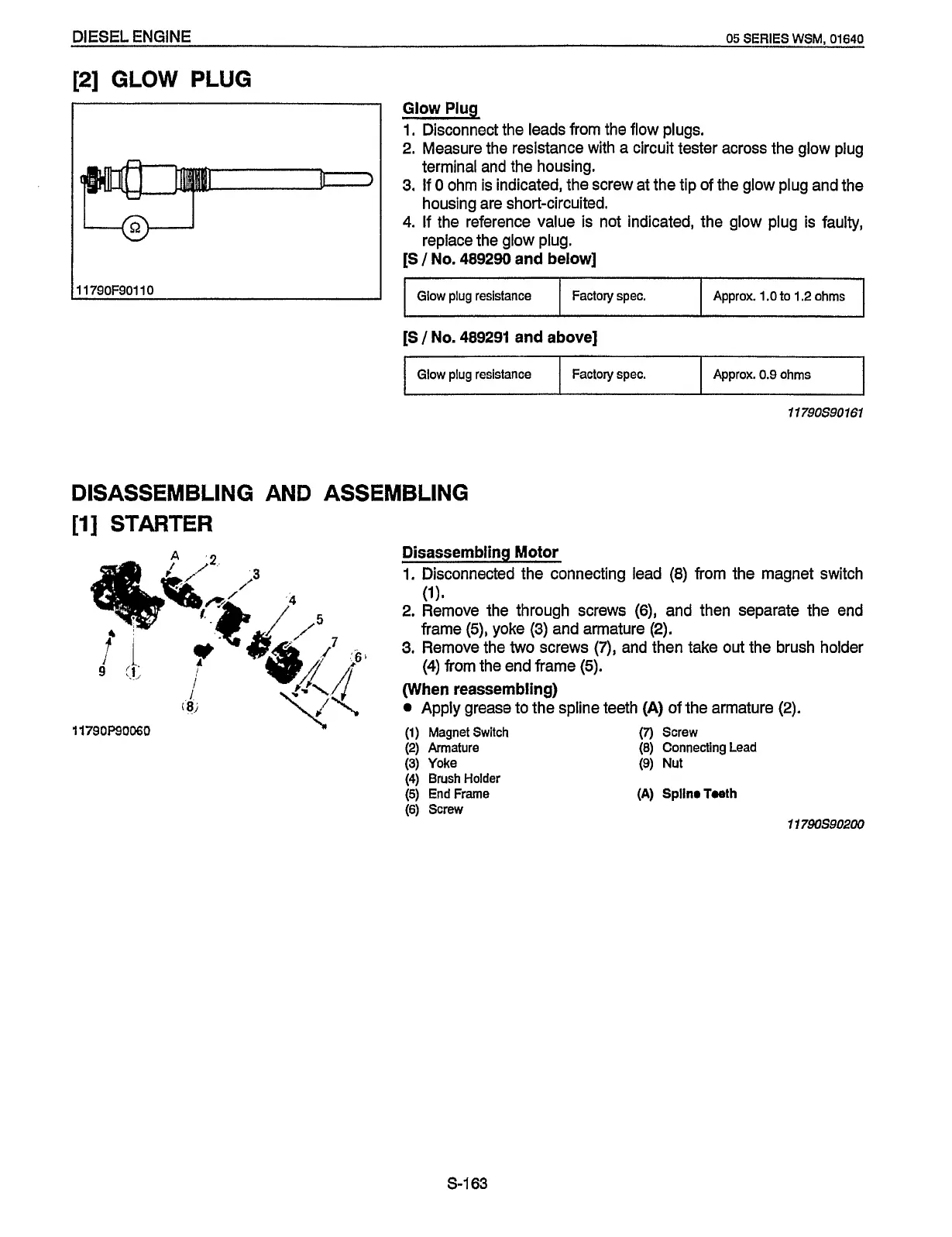

DIESEL ENGINE
05
SERIES
WSM,
01640
Glow plug resistance
[2]
GLOW PLUG
Factory spec.
Approx.
1
.O
to
1.2
ohms
11
790F90110
Glow
Plug
1.
Disconnect the leads from the flow plugs.
2.
Measure the resistance with a circuit tester across the glow plug
terminal and the housing.
3,
If
0
ohm is indicated, the screw at the tip
of
the glow plug and the
housing are short-circuited,
4.
If the reference value
is
not indicated, the glow plug
is
faulty,
replace the glow plug.
[S
/
No.
489290
and below]
11790S90161
DISASSEMBLING AND ASSEMBLING
[I]
STARTER
\
11790P9OO60
Disassembling Motor
1.
Disconnected the connecting lead (8) from the magnet switch
2.
Remove the through screws
(6),
and then separate the end
3.
Remove the
two
screws (7), and then take out the brush holder
(When reassembling)
Apply grease to the spline teeth
(A)
of the armature
(2).
(1)
Magnet Switch
(7)
Screw
(2)
Armature
(8)
Connecting
Lead
(3)
Yoke
(9)
Nut
(4)
Brush
Holder
(5)
End
Frame
(A)
Splino
Twth
(6)
Screw
(1).
frame
(5),
yoke
(3)
and armature
(2).
(4)
from the end frame
(5).
11790S90200
S-I63
