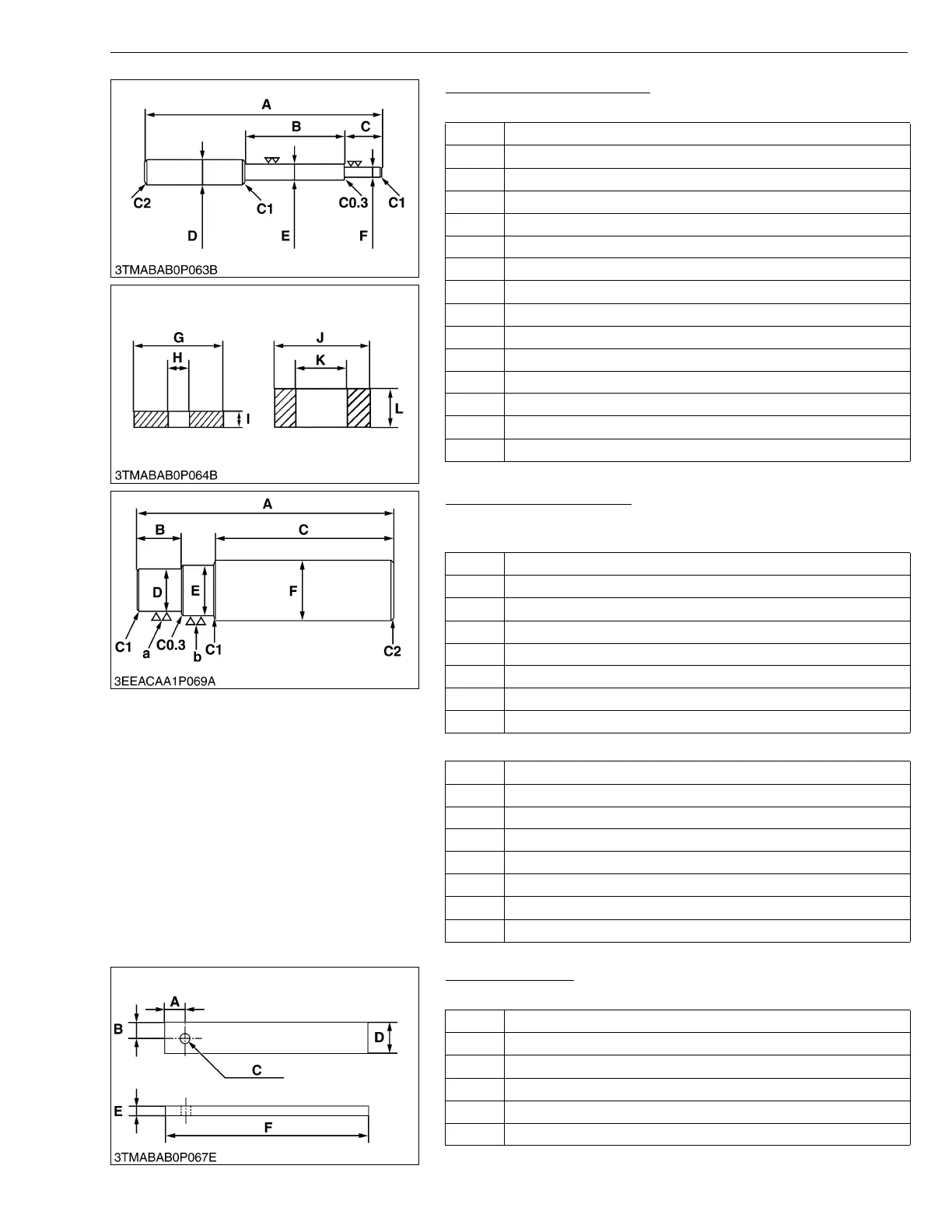

Valve Guide Replacing Tool
Application: Use to press out and press fit the valve guide.
Bushing Replacing Tools
Application: Use to press out and to press fit the bushing.
1. For small end bushing
2. For idle gear bushing
W1025500
Flywheel Stopper
Application: Use to loosen and tighten the flywheel screw.
W10259480
A 200 mm (7.87 in.)
B 80 mm (3.15 in.)
C 40 mm (1.58 in.)
D 20 mm dia. (0.79 in dia.)
E 9.96 to 9.98 mm dia. (0.3921 to 0.3929 in. dia.)
F 5.5 to 5.7 mm dia. (0.2165 to 0.2244 in.dia.)
G 15 mm (0.59 in.)
H 6.0 to 6.1 mm dia. (0.236 to 0.240 in.dia.)
I 5 mm (0.197 in.)
J 18 mm dia. (0.71 in.dia.)
K 10.6 to 10.7 mm dia. (0.417 to 0.421 in.dia.)
L 7 mm (0.276 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.012 in.)
A 145 mm (5.71 in.)
B 20 mm (0.79 in.)
C 100 mm (3.94 in.)
D 19.90 to 19.95 mm (0.7835 to 0.7854 in.)
E 21.90 to 21.95 mm dia. (0.8622 to 0.8642 in. dia.)
F 25 mm (0.98 in.)
a 6.3 µm (250 µin.)
b 6.3 µm (250 µin.)
A 150 mm (5.91 in.)
B 20 mm (0.79 in.)
C 100 mm (3.94 in.)
D 19.90 to 19.95 mm (0.7835 to 0.7854 in.)
E 21.90 to 21.95 mm dia. (0.8622 to 0.8642 in. dia.)
F 25 mm (0.98 in.)
a 6.3 µm (250 µin.)
b 6.3 µm (250 µin.)
A20 mm (0.79 in.)
B15 mm (0.59 in.)
C10 mm dia. (0.39 in. dia.)
D30 mm (1.18 in.)
E8 mm (0.31 in.)
F200 mm (7.87 in.)
