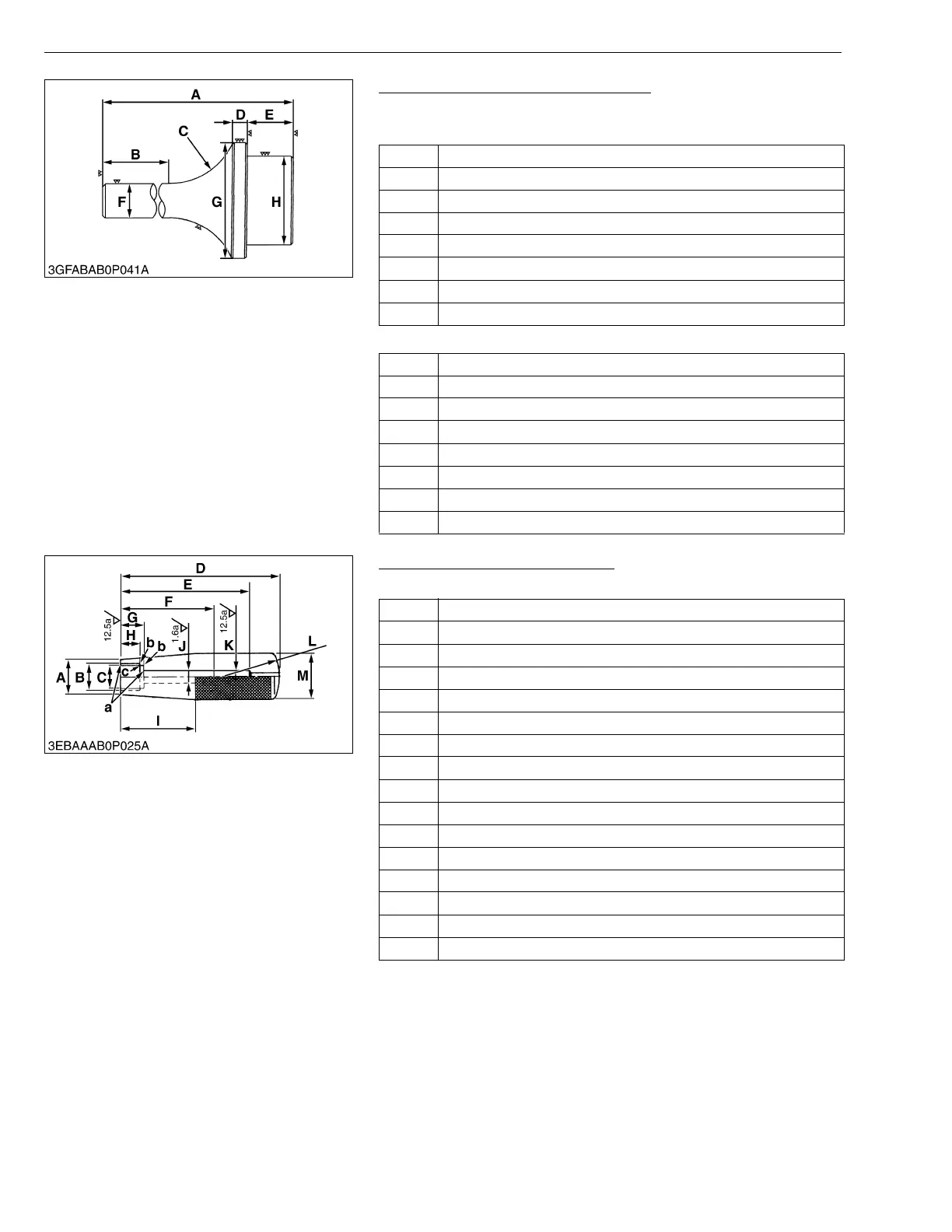

Crankshaft Bearing 1 Replacing Tool
Application: Use to press out and press fit the crankshaft bearing 1.
[Press Out]
[Press Fit]
W1026139
Valve Stem Seal Replacing Tool
Application: Use to press fit the valve stem seal.
W1041815
A 135 mm (5.31 in.)
B 72 mm (2.83 in.)
C 40 mm radius (1.57 in. radius)
D 10 mm (0.39 in.)
E 22 mm (0.87 in.)
F 20 mm dia. (0.79 in. dia.)
G 47.90 to 47.95 mm dia. (1.8858 to 1.8878 in. dia.)
H 43.90 to 43.95 mm dia. (1.7283 to 1.7303 in. dia.)
A 130 mm (5.12 in.)
B 72 mm (2.83 in.)
C 40 mm radius (1.57 in. radius)
D 9 mm (0.35 in.)
E 24 mm (0.95 in.)
F 20 mm (0.79 in.)
G 68 mm dia. (2.68 in. dia.)
H 43.90 to 43.95 mm dia. (1.7283 to 1.7303 in. dia.)
A 17.5 mm dia. (0.6890 in. dia.)
B 13.7 to 13.9 mm dia. (0.5394 to 0.5472 in. dia.)
C 11.0 to 11.2 mm dia. (0.4331 to 0.4409 in. dia.)
D 75 mm (2.9528 in.)
E 60 mm (2.3622 in.)
F 45 mm (1.7717 in.)
G 11.5 to 11.6 mm (0.4528 to 0.4567 in.)
H 8.5 mm (0.3346 in.)
I 37.5 mm (1.4764 in.)
J 6 mm dia. (0.2362 in. dia.)
K 6 mm dia. (0.2362 in. dia.)
L R 30
M 26 mm dia. (1.0236 in. dia.)
a Chamfer 0.3 mm (0.012 in.)
b Chamfer 0.4 mm (0.016 in.)
c Chamfer 0.2 mm (0.0079 in.)
