S-38
V3300-E2B, V3300-T-E2B, WSM
DIESEL ENGINE

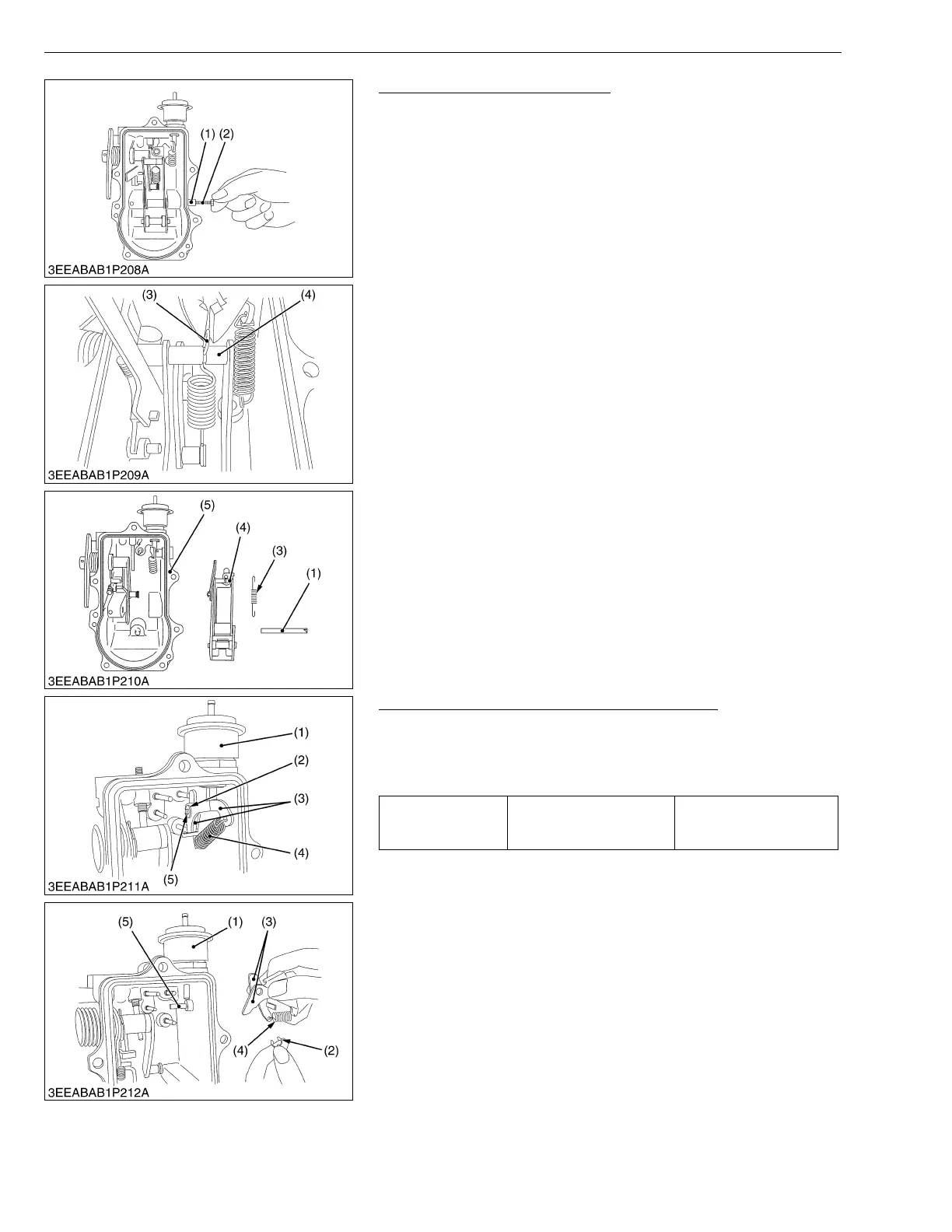

Governor Fork Lever Assembly
1. Pull off the governor fork lever shaft (1) with the extra bolt (Dia :
4 mm, Pitch : 0.7 mm, Length : more than 25 mm) (2).
2. Unhook the governor spring (3) at the governor fork lever (4)
side.
3. Remove the governor fork lever assembly from the governor
housing (5).
(When reassembling)
• After reassembling the governor housing assembly, check the
movement of the governor fork lever assembly, the speed control
lever and the stop lever.
• When assembling the inside parts, put the oil on each inside
part slightly.
• Be careful not to deform the start spring.
W1139749
Boost Arms (If equipped Boost Compensator)
1. Remove the boost actuator (1).
2. Remove the cir-clip (2).
3. Remove the boost arms (3) and the boost spring (4) from the pin
(5).
W1141511
(1) Governor Fork Lever Shaft
(2) Extra Bolt
(Dia : 4 mm, Pitch : 0.7 mm,
Length : more than 25 mm)
(3) Governor Spring
(4) Governor Fork Lever
(5) Governor Housing
Tightening torque Boost actuator
39.2 to 45.1 N·m
4.0 to 4.6 kgf·m
28.9 to 33.3 ft-lbs
(1) Boost Actuator
(2) Cir-clip
(3) Boost Arm
(4) Boost Spring
(5) Pin
To Next Page
