S-43
V3300-E2B, V3300-T-E2B, WSM
DIESEL ENGINE

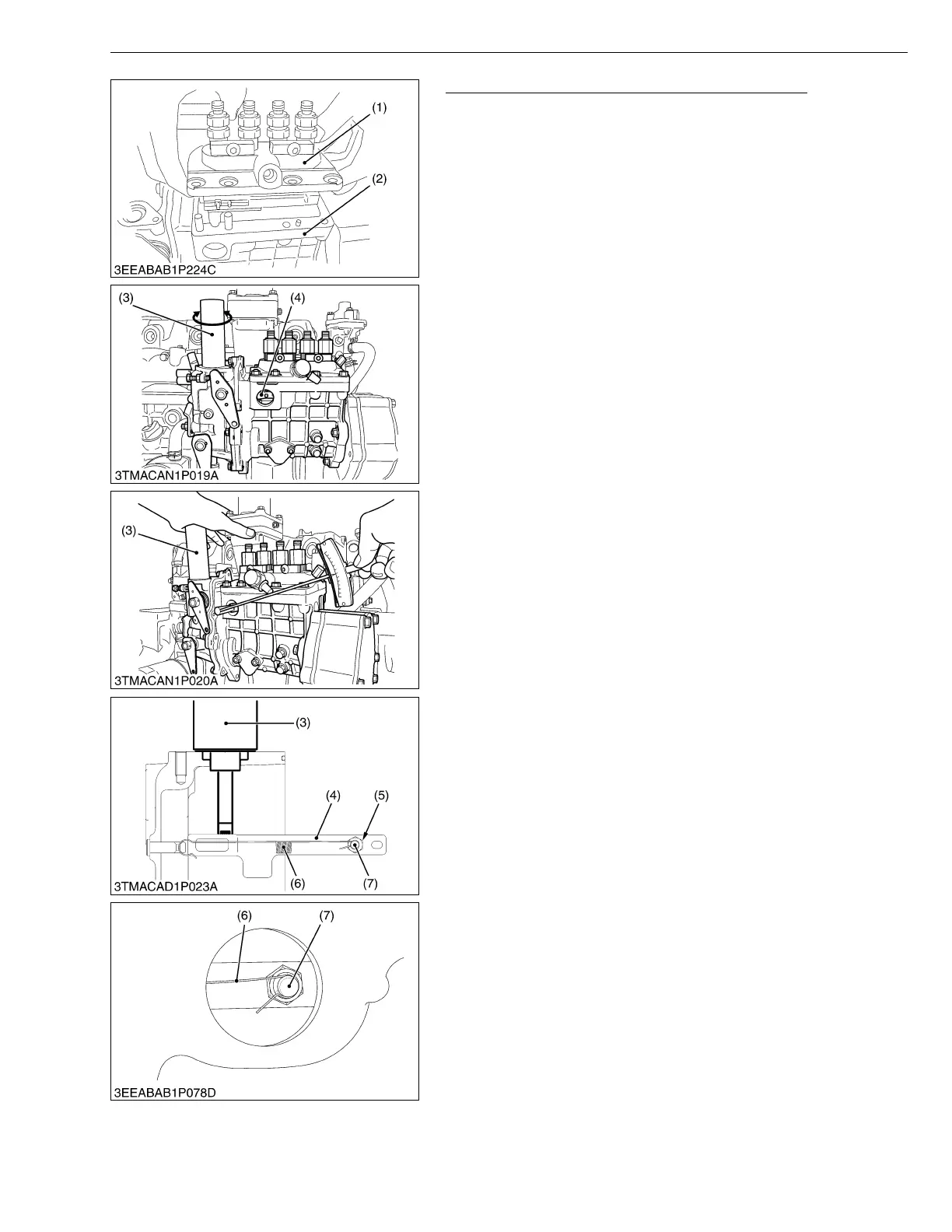

Installing Procedure of Injection Pump Assembly
1. Install the fuel injection pump assembly (1) in its unit (2), and
hook the governor connecting rod to the rack pin of the fuel
injection pump assembly.
2. Place the service jig (3) in the stop solenoid mounting hole of the
fuel injection pump unit.
3. Make sure the permanent magnet at the tip of the service jig is
attracted to the governor connecting rod (4). To do this, turn the
jig a little clockwise and counterclockwise and look into the fuel
injection pump unit sight hole to see if the governor connecting
rod (4) moves right and left accordingly.
4. Slightly tighten the anti-rotation nut of the governor connecting
rod.
5. Holding down the service jig (3) by hand, tighten up the anti-
rotation nut (5) to the specified torque.
6. Hook the start spring (6) to the rack pin (7).
W1069371
(1) Fuel Injection Pump Assembly
(2) Fuel Injection Pump Unit
(3) Service Jig
(4) Governor Connecting Rod
(5) Anti-rotation Nut
(6) Start Spring
(7) Rack Pin
To Next Page
