Kubota V3300-E2B - Page 39

G-29
V3300-E2B, V3300-T-E2B, WSM
G GENERAL

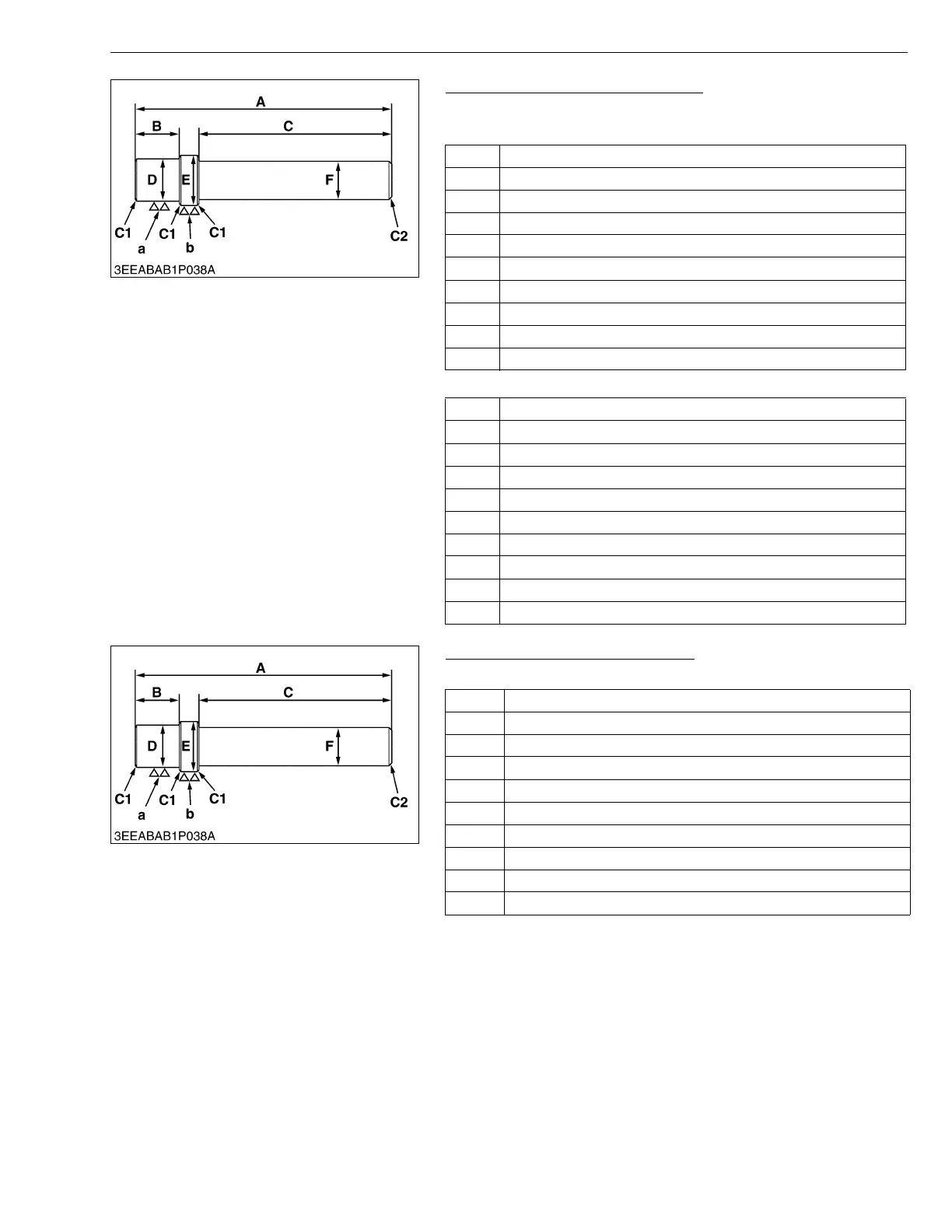

Small End Bushing Replacing Tool
Application: Use to press out and to press fit the small end bushing.
[Press out]
[Press fit]
W1040702
Idle Gear Bushing Replacing Tool
Application: Use to press out and to press fit the bushing.
W1040289
A 157 mm (6.181 in.)
B 14.5 mm (0.571 in.)
C 120 mm (4.7244 in.)
D 30.0 mm dia. (1.1811 in. dia.)
E 32.95 mm dia. (1.2972 in. dia.)
F 20 mm dia. (0.7874 in. dia.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
A 157 mm (6.181 in.)
B 14.5 mm (0.571 in.)
C 120 mm (4.7244 in.)
D 30.0 mm dia. (1.1811 in. dia.)
E 42.000 mm dia. (1.6535 in. dia.)
F 20 mm dia. (0.7874 in. dia.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
A 196 mm (7.7165 in.)
B 37.5 mm (1.476 in.)
C 150 mm (5.9055 in.)
D 44.95 mm dia. (1.7697 in. dia.)
E 48.075 to 48.100 mm dia. (1.8927 to 1.8937 in. dia.)
F 20 mm dia. (0.7874 in. dia.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
KiSC issued 06, 2006 A
