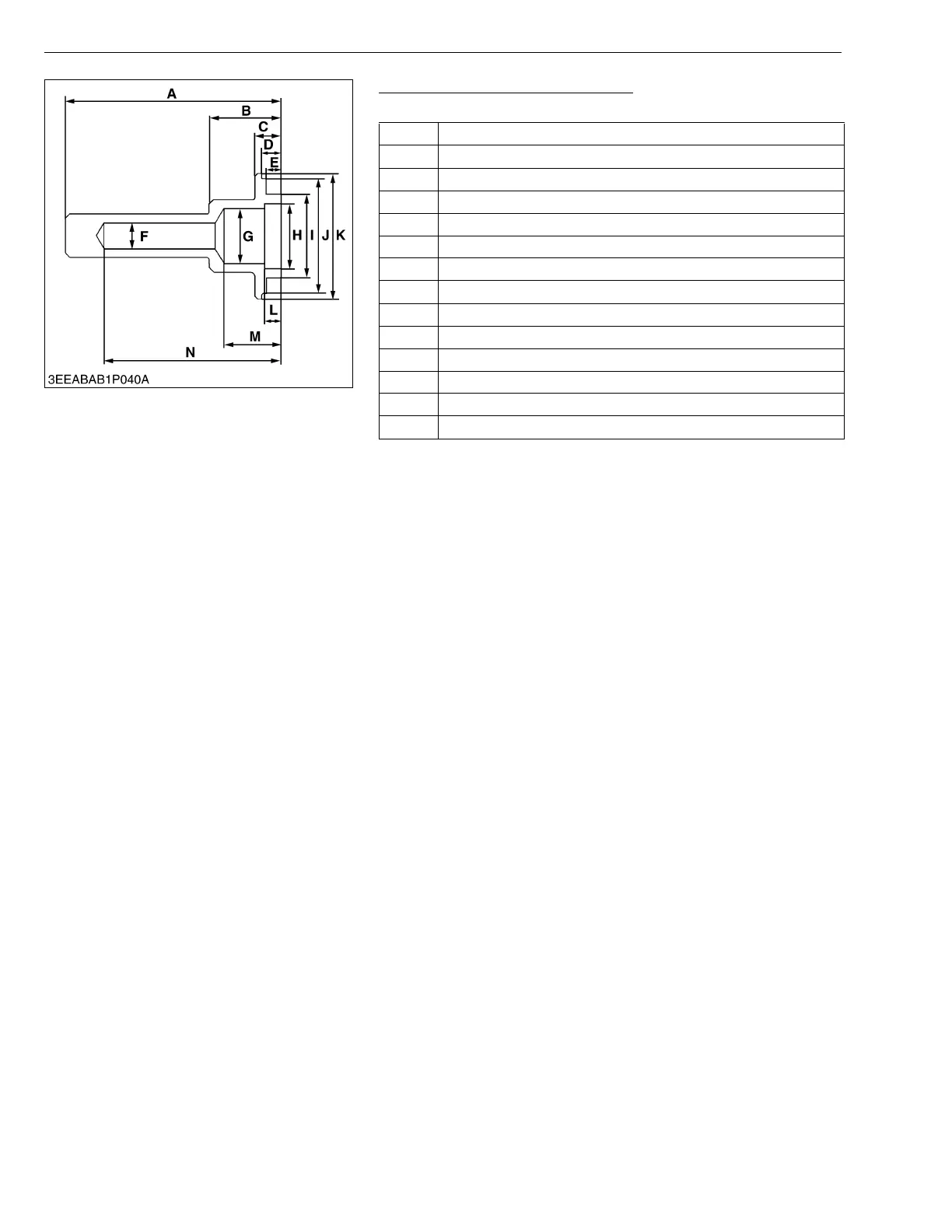

Gear Case Oil Seal Replacing Tool
Application: Use to press fit the oil seal.
W1041529
A 148.8 mm (5.8582 in.)
B 50 mm (1.9685 in.)
C 18.8 mm (0.7401 in.)
D 13.7 to 13.9 mm (0.5394 to 0.5472 in.)
E 11 mm (0.433 in.)
F 18 mm dia. (0.7087 in. dia.)
G 38 mm dia. (1.4961 in. dia.)
H 45 mm dia. (1.7716 in. dia.)
I 57.9 to 58.1 mm dia. (2.2795 to 2.2874 in. dia.)
J 79.5 mm dia. (3.1299 in. dia.)
K 87 mm dia. (3.425 in. dia.)
L 12 mm (0.4724 in.)
M 40 mm (1.5748 in.)
N 120 mm (4.7244 in.)
