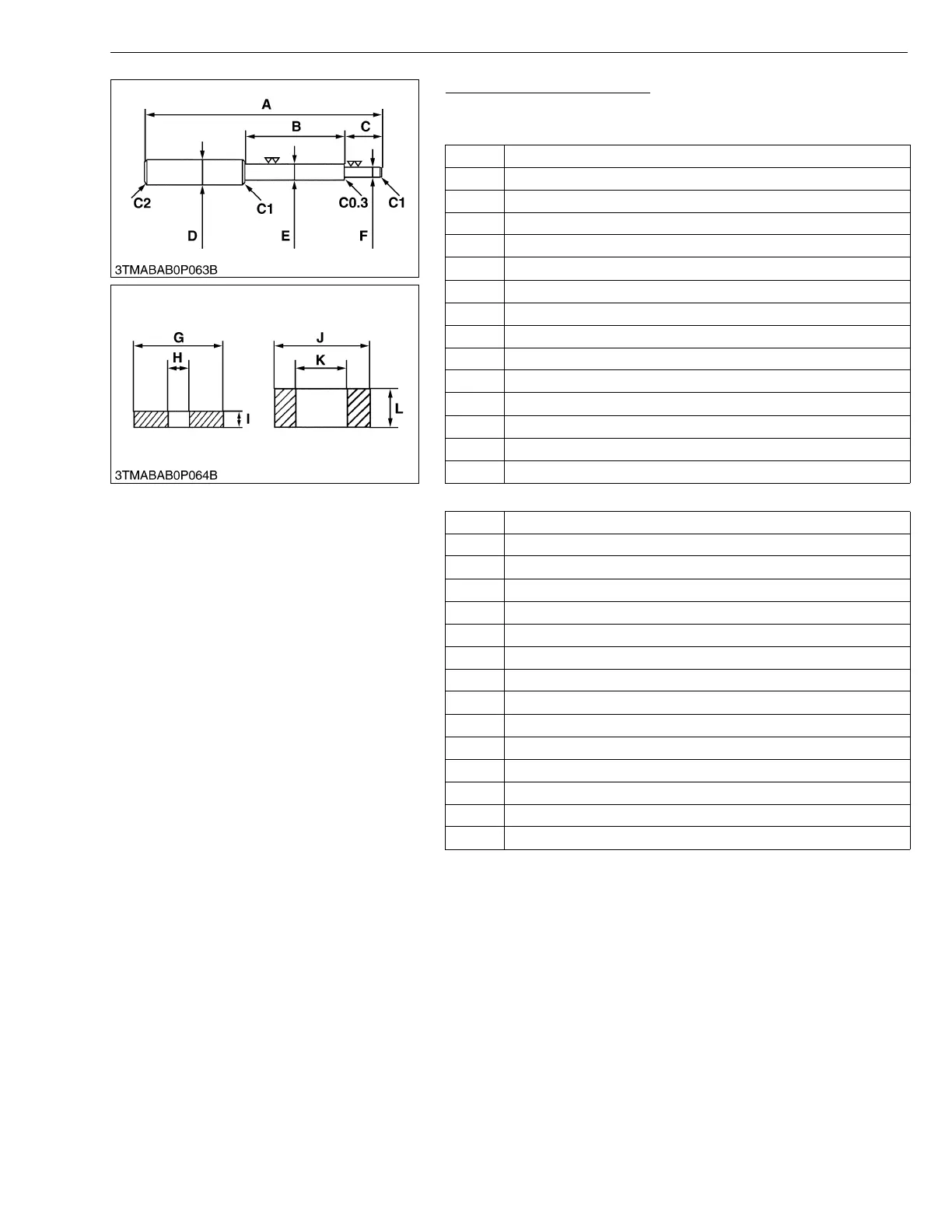

Valve Guide Replacing Tool
Application: Use to press out and press fit the valve guide.
Intake valve guide
Exhaust valve guide
W1038887
A 225 mm (8.86 in.)
B 70 mm (2.76 in.)
C 45 mm (1.77 in.)
D 20 mm dia. (0.79 in dia.)
E 11.7 to 11.9 mm dia. (0.460 to 0.468 in. dia.)
F 6.5 to 6.6 mm dia. (0.256 to 0.259 in. dia.)
G 25 mm dia. (0.98 in. dia.)
H 6.7 to 7.0 mm dia. (0.263 to 0.275 in. dia.)
I 5 mm (0.197 in.)
J 20 mm dia. (0.787 in.dia.)
K 12.5 to 12.8 mm dia. (0.492 to 0.504 in. dia.)
L 8.9 to 9.1 mm (0.350 to 0.358 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.012 in.)
A 225 mm (8.86 in.)
B 80 mm (3.15 in.)
C 40 mm (1.57 in.)
D 20 mm dia. (0.79 in dia.)
E 12.96 to 12.98 mm dia. (0.510 to 0.511 in. dia.)
F 7.50 to 7.70 mm dia. (0.295 to 0.303 in. dia.)
G 14.5 to 15.5 mm dia. (0.57 to 0.61 in.dia.)
H 8.0 to 8.1 mm dia. (0.31 to 0.32 in. dia.)
I 5 mm (0.197 in.)
J 17.5 to 18.5 mm dia. (0.689 to 0.728 in. dia.)
K 13.1 to 13.2 mm dia. (0.516 to 0.520 in. dia.)
L 9.9 to 10.1 mm (0.390 to 0.398 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.012 in.)
