G-34
V3300-E2B, V3300-T-E2B, WSM
G GENERAL

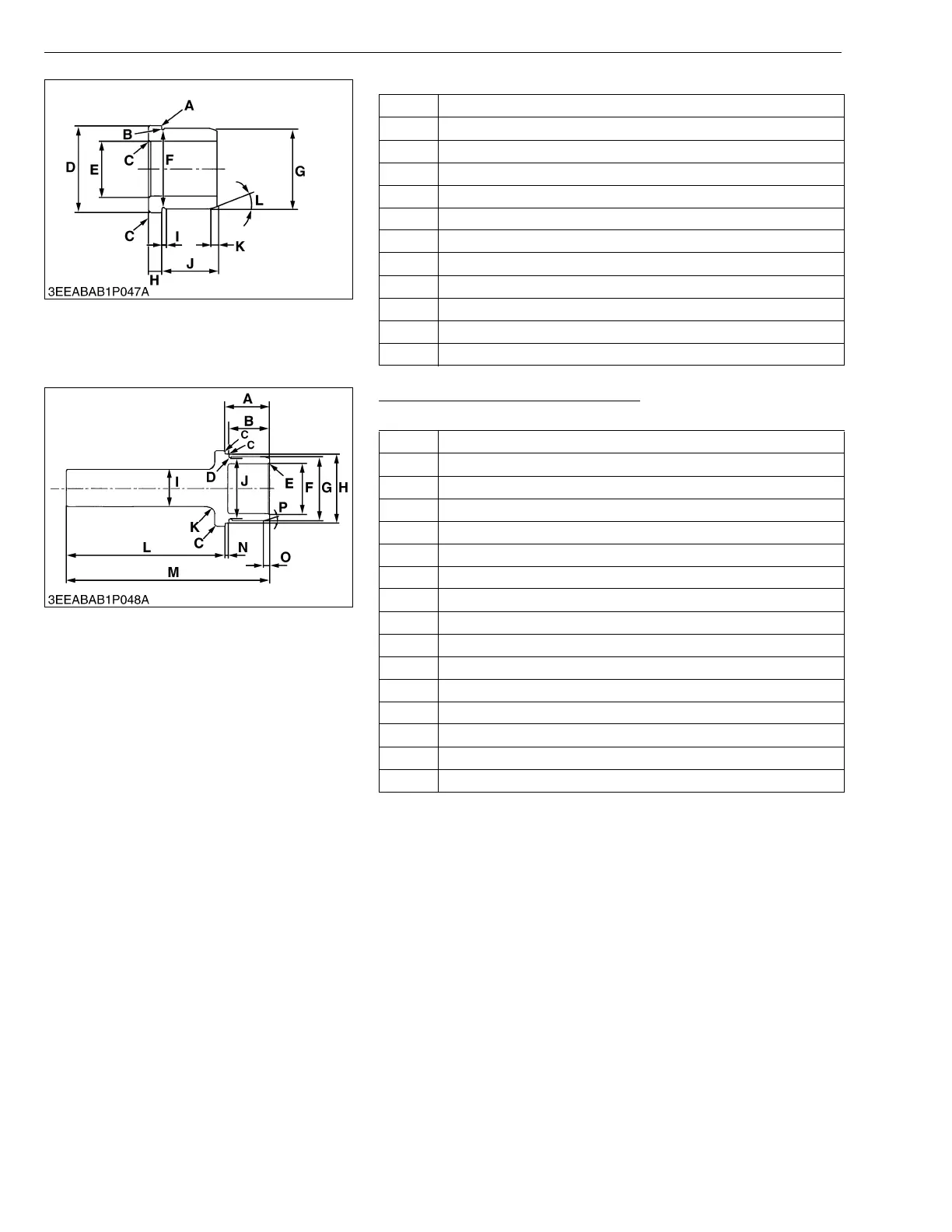

3) Piece 2
W1044620
Balancer Bushing Replacing Tool 2
Application: Use to press fit the bushing.
W1044794
A Chamfer 0.1 mm (0.004 in.)
B 1 mm (0.04 in.)
C Chamfer 1mm (0.04 in.)
D 54.3 to 54.4 mm dia. (2.1378 to 2.1417 in. dia.)
E 34.025 to 34.05 mm dia. (1.3396 to 1.3406 in. dia.)
F 48.5 mm dia. (1.9094 in. dia.)
G 50.421 to 50.44 mm dia. (1.9851 to 1.9858 in. dia.)
H 8 mm (0.31 in.)
I 2 mm (0.08 in.)
J 35 mm dia. (1.38 in. dia.)
K 5 mm (0.20 in.)
L 0.26 rad (15 °)
A 35 mm (1.38 in.)
B 33 mm (1.30 in.)
C Chamfer 0.5 mm (0.02 in.)
D 1 mm (0.04 in.)
E Chamfer 1 mm (0.04 in.)
F 40 mm dia. (1.57 in. dia.)
G 50.921 to 50.94 mm dia. (2.0048 to 2.0055 in. dia.)
H 54.8 to 54.9 mm dia. (2.1575 to 2.1614 in. dia.)
I 30 mm dia. (1.18 in. dia.)
J 49 mm dia. (1.93 in. dia.)
K 6 mm (0.24 in.)
L 125 mm (4.92 in.)
M 160 mm (6.30 in.)
N 3 mm (0.12 in.)
O 5 mm (0.20 in.)
P 0.26 rad (15 °)
KiSC issued 06, 2006 A
