G-35
V3300-E2B, V3300-T-E2B, WSM
G GENERAL

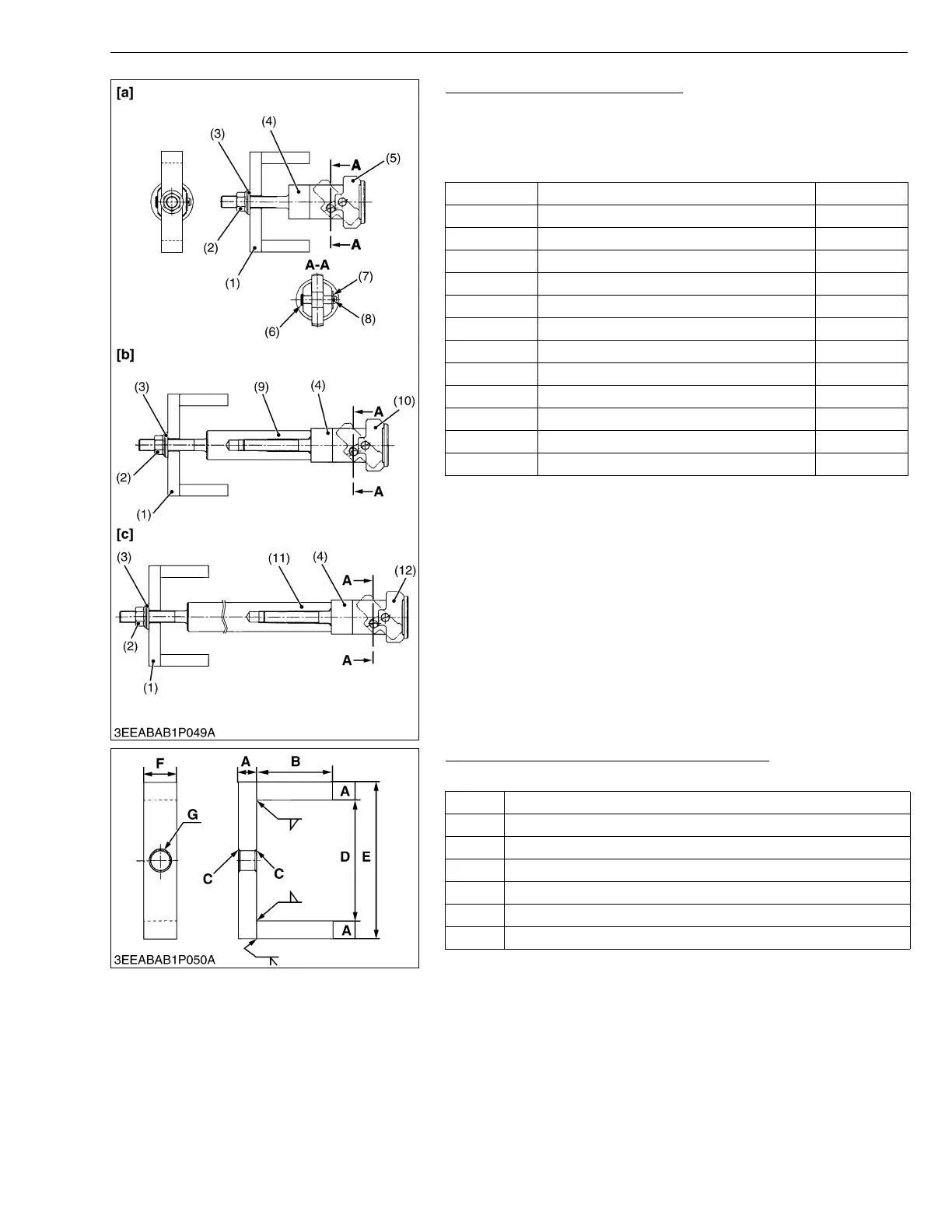

Balancer Replacing Tools 3, 4, 5
Application: Use to press fit the bushing.
• This special tool is not provided, so make it referring to the
figure.
W1045310
Balancer Replacing Tool Components Parts
1) Bracket
W1167794
No. Name of Part Q’ty.
(1) Bracket 1
(2) Flange Nut 1
(3) Washer 1
(4) Shaft 1
(5) Piece 1 1
(6) Clevis 1
(7) Washer 1
(8) Cotter Pin 1
(9) Joint 1 1
(10) Piece 2 1
(11) Joint 2 1
(12) Piece 3 1
[a] :Tool 3
[b] :Tool 4
[c] :Tool 5
A : Section
A 12 mm (0.47 in.)
B 50 mm (1.97 in.)
C Chamfer 1 mm (0.04 in.)
D 80 mm (3.15 in.)
E 104 mm (4.09 in.)
F 22 mm (0.87 in.)
G 13 mm dia. (0.51 in. dia.)
To Next Page
