Kubota V3300-E2B - Page 46

G-36
V3300-E2B, V3300-T-E2B, WSM
G GENERAL

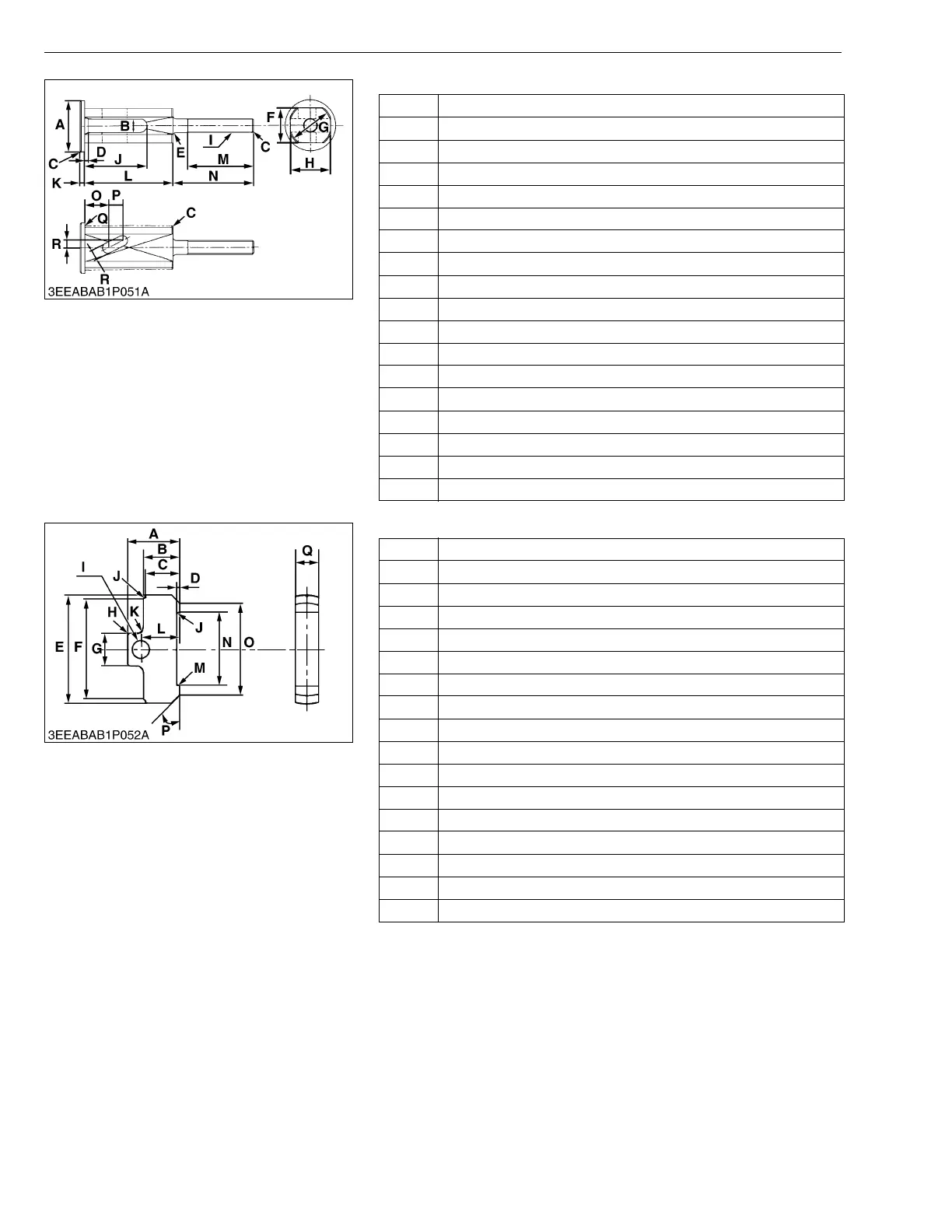

2) Shaft
W1046146
3) Piece 1
W1047263
A 44 mm dia. (1.73 in. dia.)
B 12 mm (0.47 in.)
C Chamfer 1 mm (0.04 in.)
D 3 mm (0.12 in.)
E 3 mm (0.12 in.)
F 30 mm (1.18 in.)
G 38 mm (1.50 in.)
H 35 mm (1.38 in.)
I M12 × P1.25
J 53 mm (2.09 in.)
K 4 mm (0.16 in.)
L 75 mm (2.95 in.)
M 57 mm (2.24 in.)
N 70 mm (2.76 in.)
O 19.5 mm (0.77 in.)
P 12 mm (0.47 in.)
Q 0.8 mm (0.03 in.)
R 6 mm (0.24 in.)
A 26 mm (1.02 in.)
B 18 mm (0.71 in.)
C 16.5 to 17.0 mm (0.6496 to 0.6693 in.)
D 1.5 mm (0.06 in.)
E 54.0 to 54.2 mm dia. (2.1260 to 2.1339 in dia.)
F 50.55 to 50.75 mm dia. (1.9902 to 1.9980 in dia.)
G 16 mm (0.63 in.)
H Chamfer 1 mm (0.04 in.)
I 8.5 mm dia. (0.33 in. dia.)
J 0.4 mm (0.0157 in.)
K 3 mm (0.12 in.)
L 19 mm (0.75 in.)
M Chamfer 0.5 mm (0.02 in.)
N 36 mm (1.42 in.)
O 45 mm dia. (1.77 in. dia.)
P 0.78 rad (45 °)
Q 11.5 mm (0.45 in.)
