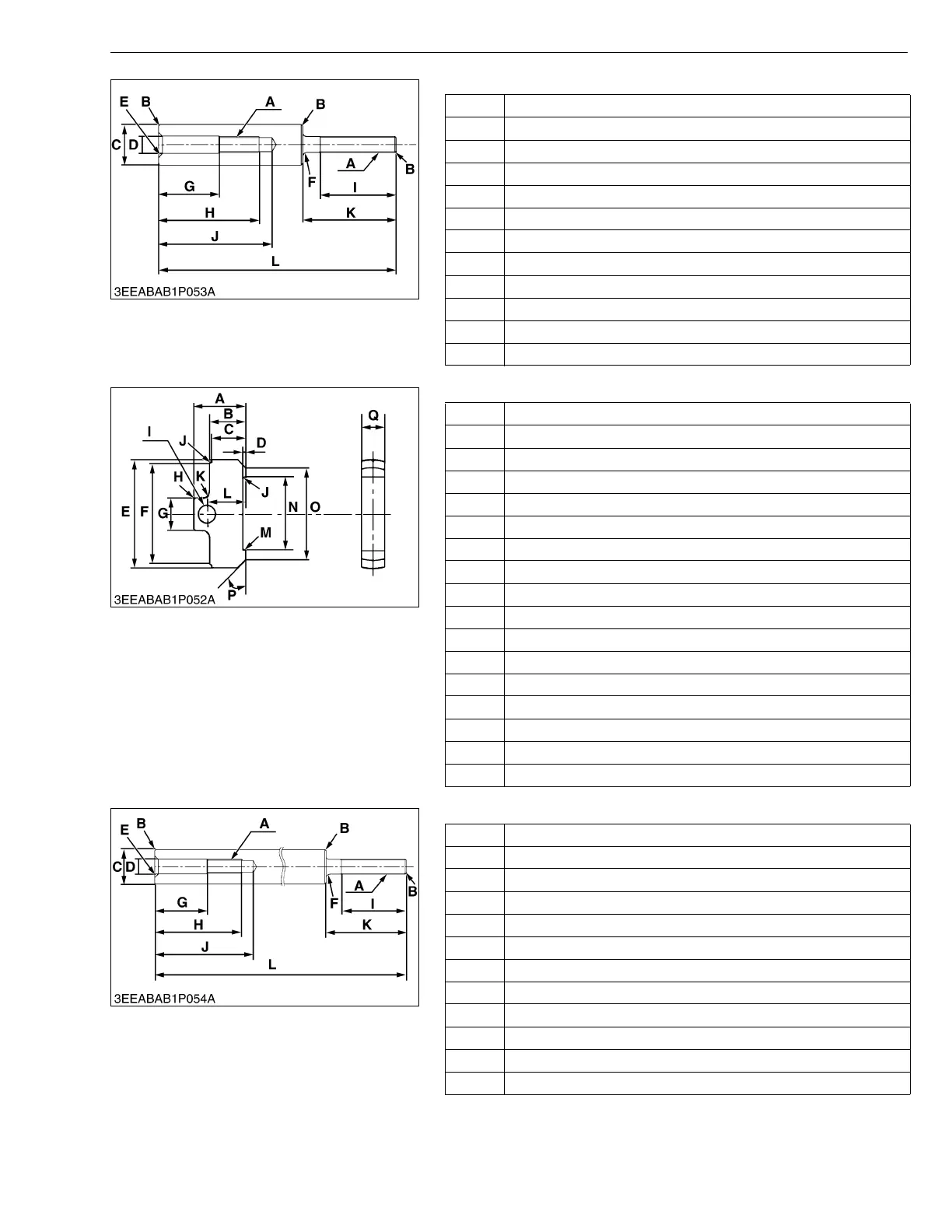

4) Joint 1
W1047709
5) Piece 2
W1048068
6) Joint 2
W1048305
A M12 × P1.25
B Chamfer 1 mm (0.04 in.)
C 30 mm dia. (1.18 in. dia.)
D 13 mm dia. (0.51 in. dia.)
E Chamfer 3 mm (0.12 in.)
F 3 mm (0.12 in.)
G 45 mm (1.77 in.)
H 75 mm (2.95 in.)
I 57 mm (2.24 in.)
J 85 mm (3.35 in.)
K 70 mm (2.76 in.)
L 178 mm (7.01 in.)
A 26 mm (1.02 in.)
B 18 mm (0.71 in.)
C 16.5 to 17.0 mm (0.6496 to 0.6693 in.)
D 1.5 mm (0.06 in.)
E 53.5 to 53.7 mm dia. (2.1063 to 2.1142 in dia.)
F 50.05 to 50.25 mm dia. (1.9705 to 1.9783 in dia.)
G 16 mm (0.63 in.)
H Chamfer 1 mm (0.04 in.)
I 8.5 mm dia. (0.33 in. dia.)
J 0.4 mm (0.0157 in.)
K 3 mm (0.12 in.)
L 19 mm (0.75 in.)
M Chamfer 0.5 mm (0.02 in.)
N 36 mm (1.42 in.)
O 45 mm dia. (1.77 in. dia.)
P 0.78 rad (45 °)
Q 11.5 mm (0.45 in.)
A M12 × P1.25
B Chamfer 1 mm (0.04 in.)
C 30 mm dia. (1.18 in. dia.)
D 13 mm dia. (0.51 in. dia.)
E Chamfer 3 mm (0.12 in.)
F 3 mm (0.12 in.)
G 45 mm (1.77 in.)
H 75 mm (2.95 in.)
I 57 mm (2.24 in.)
J 85 mm (3.35 in.)
K 70 mm (2.76 in.)
L 394 mm (15.51 in.)
