7) Piece 3
W1048484

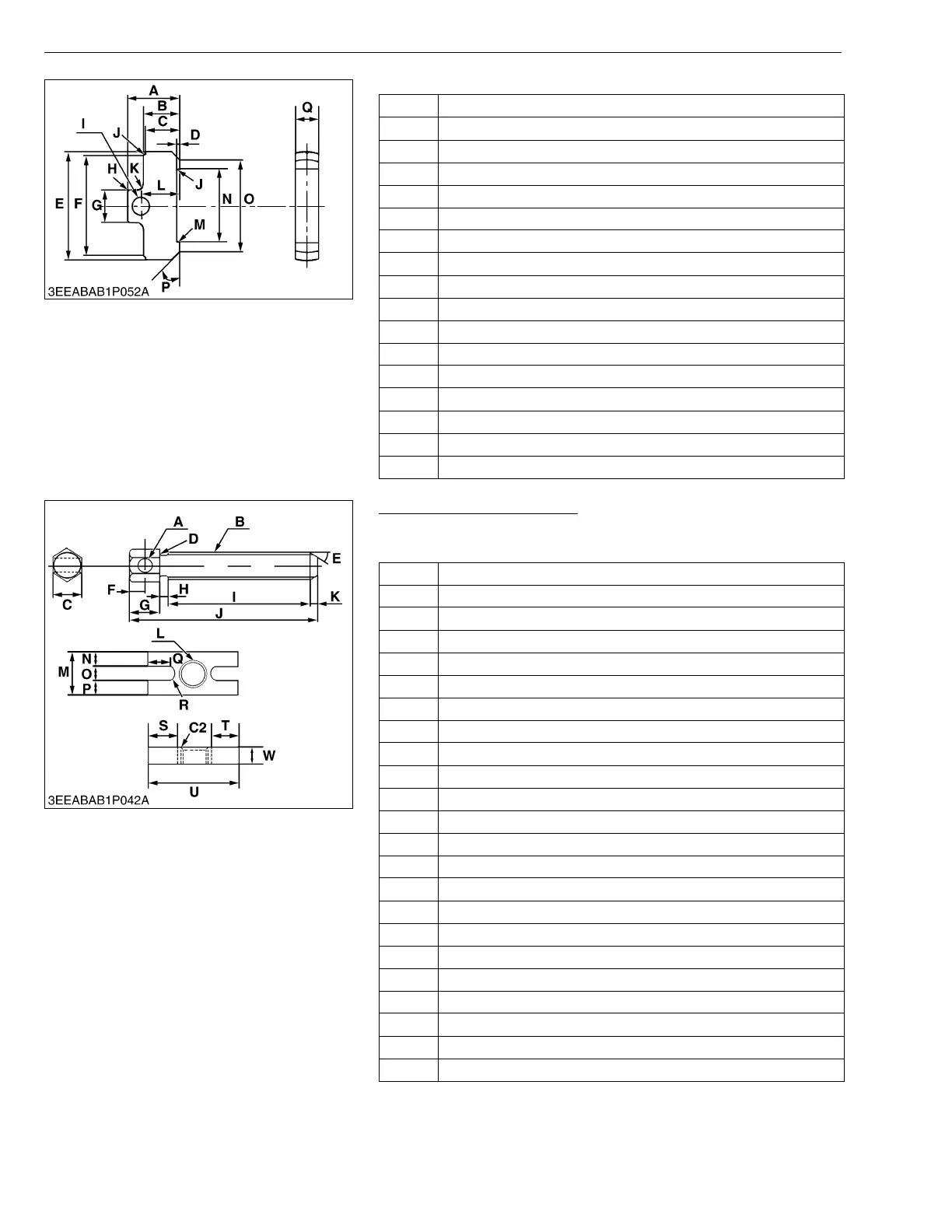

Injection Pump Gear Puller
Application: Use for remove the injection pump gear from governor
shaft.
W1042094
A 26 mm (1.02 in.)
B 18 mm (0.71 in.)
C 16.5 to 17.0 mm (0.6496 to 0.6693 in.)
D 1.5 mm (0.06 in.)
E 53.0 to 53.2 mm dia. (2.0866 to 2.0945 in dia.)
F 49.55 to 49.75 mm dia. (1.9508 to 1.9587 in dia.)
G 16 mm (0.63 in.)
H Chamfer 1 mm (0.04 in.)
I 8.5 mm dia. (0.33 in. dia.)
J 0.4 mm (0.0157 in.)
K 3 mm (0.12 in.)
L 19 mm (0.75 in.)
M Chamfer 0.5 mm (0.02 in.)
N 36 mm (1.42 in.)
O 45 mm dia. (1.77 in. dia.)
P 0.78 rad (45 °)
Q 11.5 mm (0.45 in.)
A 10 mm dia. (0.39 in.dia.)
B M16 × Pitch 1.5
C 19 mm (0.75 in.)
D 0.5 mm radius (0.02 in. radius)
E 0.87 rad (50 °)
F 10 mm (0.39 in.)
G 20 mm (0.79 in.)
H 5 mm (0.20 in.)
I 95 mm (3.74 in.)
J 125 mm (4.92 in.)
K 5 mm (0.20 in.)
L M16 × Pitch 1.5
M 30 mm (1.18 in.)
N 9.5 mm (0.3740 in.)
O 11 mm (0.4331 in.)
P 9.5 mm (0.3740 in.)
Q 14.5 mm (0.57 in.)
R 5.5 mm radius (0.22 in. radius)
S 20 mm (0.79 in.)
T 20 mm (0.79 in.)
U 80 mm (3.1496 in.)
W 12 mm (0.47 in.)
C2 Chamfer 2.0 mm (0.079 in.)
