G-39
V3300-E2B, V3300-T-E2B, WSM
G GENERAL

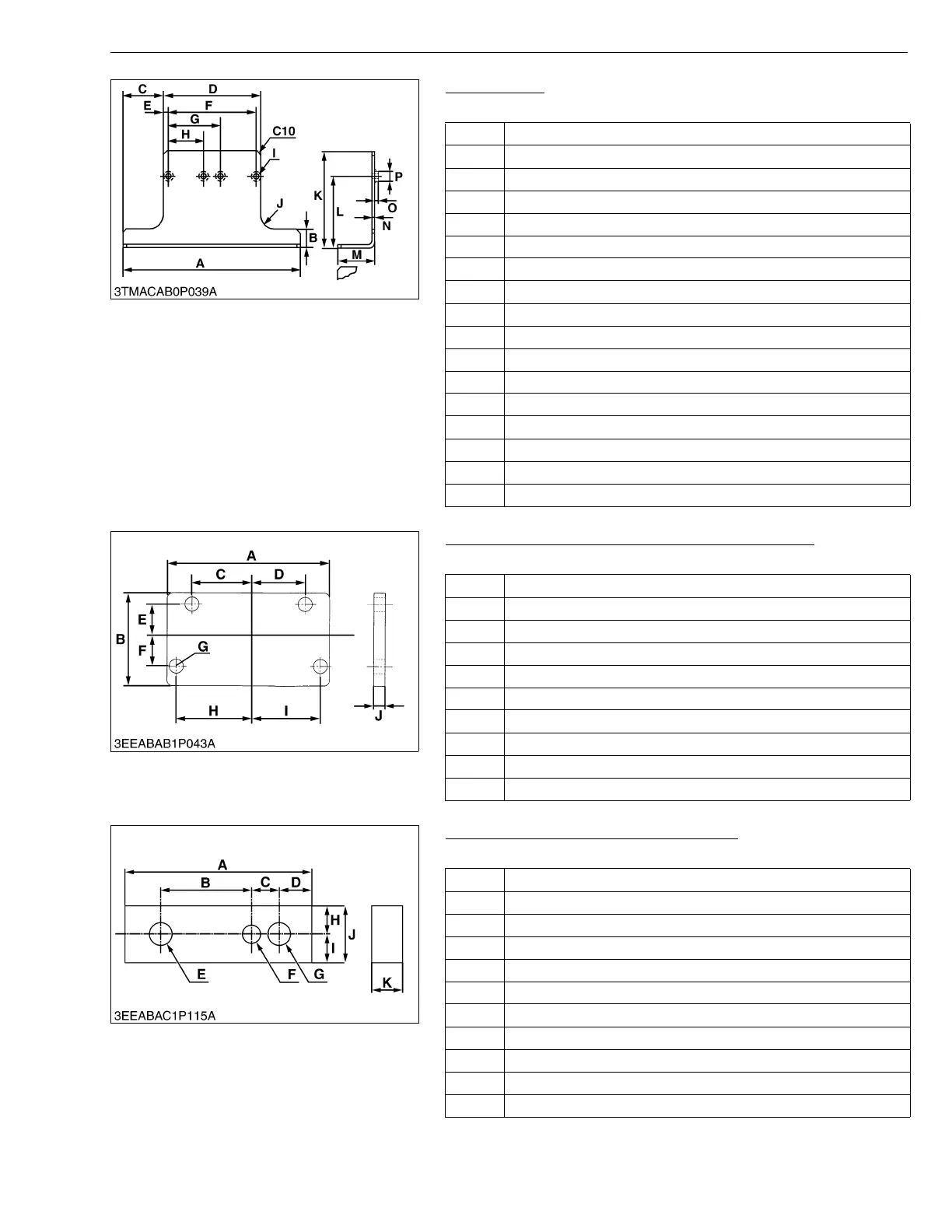

Engine Stand
Application: Use to support engine.
W1033645
Flywheel Stopper (for SAE Flywheel and Housing)
Application: Use to loosen and tighten the flywheel screw.
W1042515
Tool for Aligning the Crankcase 1 and 2
Application: Use for aligning the crankcase 1 and 2.
W1047882
A 480 mm (18.90 in.)
B 50 mm (1.97 in.)
C 108.5 mm (4.272 in.)
D 262.5 mm (10.33 in.)
E 12.5 mm (0.492 in.)
F 237.5 mm (9.350 in.)
G 142.5 mm (5.610 in.)
H 95 mm (3.74 in.)
I 14 mm dia. (0.55 in. dia.)
J 40 mm radius (1.57 in. radius)
K 210 mm (8.27 in.)
L 190 mm (7.48 in.)
M 100 mm (3.94 in.)
N 6 mm (0.24 in.)
O 6 mm (0.24 in.)
P 25 mm dia. (0.98 in. dia.)
C10 Chamfer 10 mm (0.394 in.)
A 140 mm (5.5 in.)
B 80 mm (3.15 in.)
C 49.3 mm (1.94 in.)
D 49.3 mm (1.94 in.)
E 23.8 mm (0.94 in.)
F 23.8 mm (0.94 in.)
G 11 mm dia. (0.43 in. dia.)
H 56.5 mm (2.22 in.)
I 56.5 mm (2.22 in.)
J 8 mm (0.31 in.)
A 115 mm (4.5276 in.)
B 56 mm (2.2047 in.)
C 17 mm (0.6693 in.)
D 20 mm (0.7874 in.)
E 14 mm dia. (0.5512 in. dia.)
F 11 mm dia. (0.4331 in. dia.)
G 14 mm dia. (0.5512 in. dia.)
H 17.5 mm (0.6890 in.)
I 17.5 mm (0.6890 in.)
J 35 mm (1.3780 in.)
K 19 mm (0.7480 in.)
KiSC issued 06, 2006 A
