S-36
05-E3B, 05-E3BG, WSM
DIESEL ENGINE
Fan Drive Pulley
1. Secure the flywheel to keep it from turning.
2. Remove the fan drive pulley screw.
3. Draw out the fan drive pulley with a puller.
(When reassembling)
• Install the pulley to crankshaft, aligning the mark (1) on them (3-
cylinder engine).
• Apply engine oil to the fan drive pulley retaining screw. And
tighten it.
W10181950
Tightening torque Fan drive pulley screw
236 to 245 N·m
24.0 to 25.0 kgf·m
174 to 180 lbf·ft

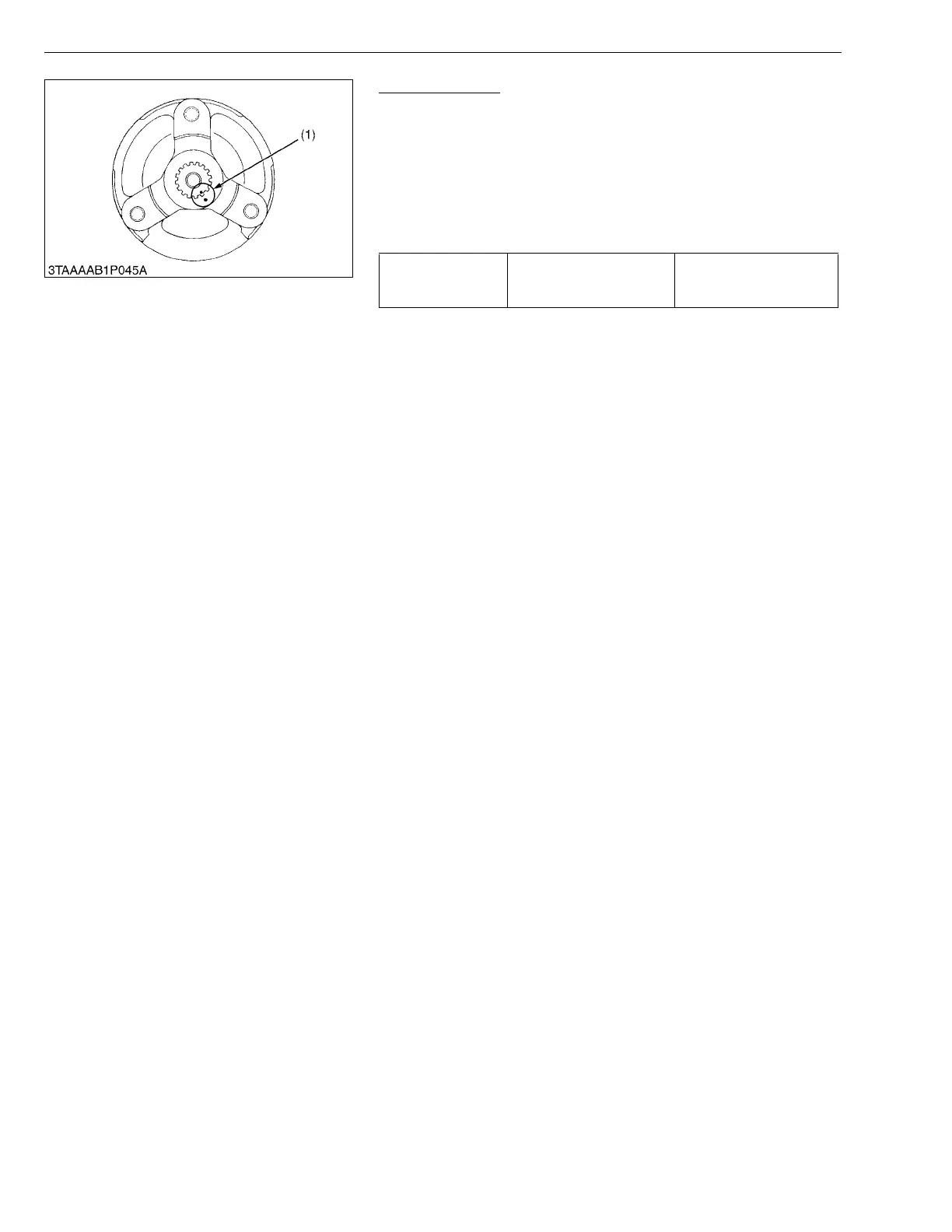

(1) Aligning Mark
