Kubota WSM 05-E3B Series - Disassembly: Gear Case Removal and Installation

S-37
05-E3B, 05-E3BG, WSM
DIESEL ENGINE
Gear Case
1. Remove the fuel feed pump.
2. Remove the gear case.
(When reassembling)
• Grease thinly to the oil seal, and install it, ensuring the lip does
not come off.
W1030917

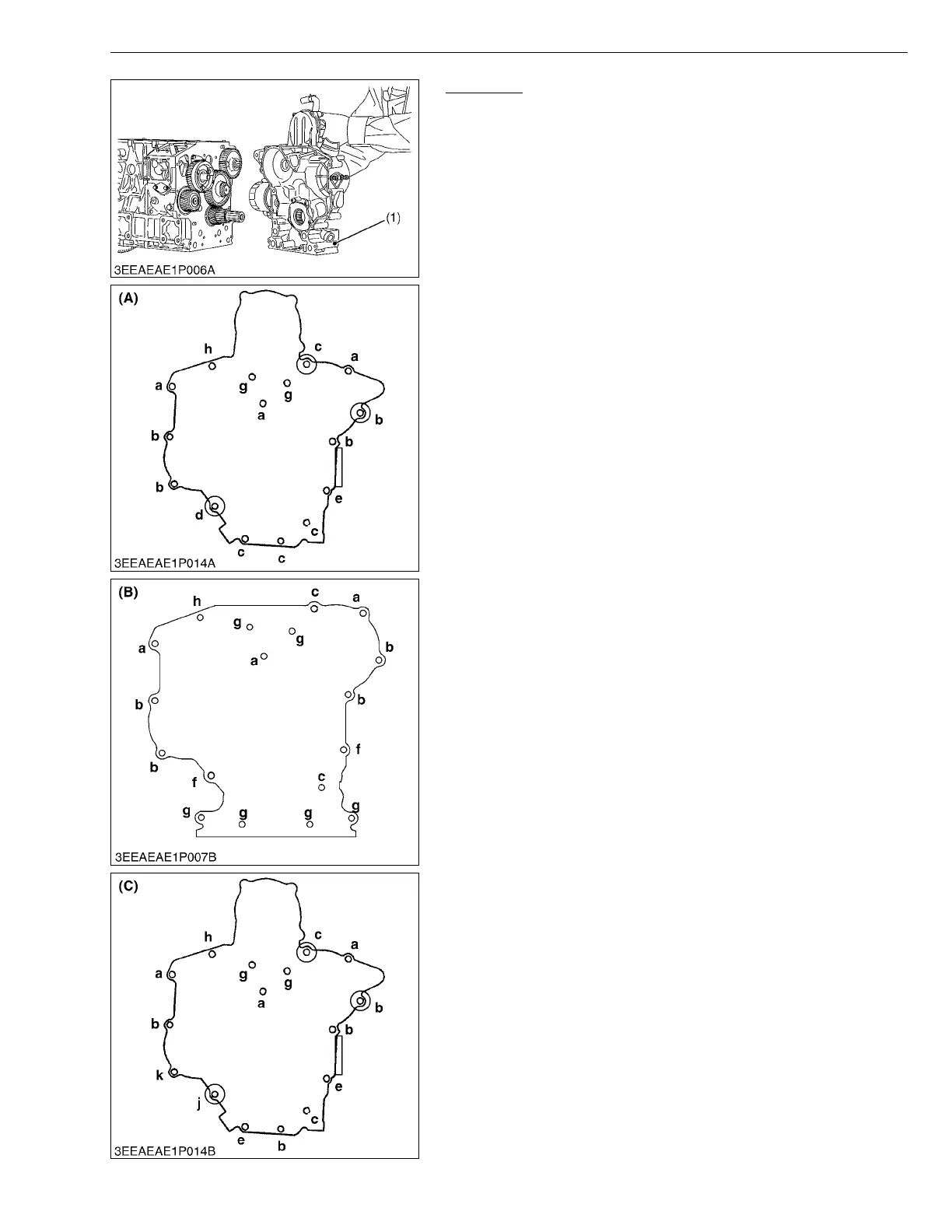

(1) Gear Case
(A) Gear Case for Standard Oil Pan
(B) Gear Case for Extended Oil Pan
(C) Gear Case for BG Type
(Without D1305-E3BG)
a : Bolt Length = 45 mm (1.8 in.)
b : Bolt Length = 50 mm (2.0 in.)
c : Bolt Length = 55 mm (2.2 in.)
d : Bolt Length = 65 mm (2.6 in.)
e : Bolt Length = 68 mm (2.7 in.)
f : Bolt Length = 70 mm (2.8 in.)
g : Bolt Length = 85 mm (3.3 in.)
h : Nut
j : Bolt Length = 59 mm (2.3 in.)
k : Bolt Length = 82 mm (3.2 in.)
KiSC issued 12, 2007 A
